FAP-U323EV-A

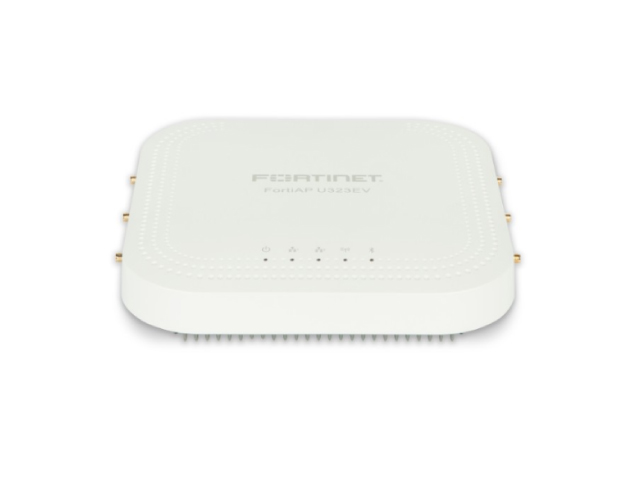

FAP-U323EV-A – Fortinet FortiAP U323EV – Wireless access point – 802.11ac Wave – Wi-Fi – Dual Band.

Availability: 0 In Stock
Weight 3.5 lbs
Dimensions 9 × 9 × 2 in
SKU

FAP-U323EV-A

Condition

New

Brand

Fortinet

GTIN

0 842382130292

$713.00

Quantity:

Payment Options

Product Details

Fortinet FortiAP U323EV – Wireless access point – 802.11ac Wave 2 – Wi-Fi – Dual Band

Enterprise Wi-Fi has transformed from a transient network to a permanent fixture within all organizations. The data transported on the wireless networks span from classroom video conferencing to healthcare patient monitoring traffic to financial Point-of-Sale transactions. Expectations continue to rise for this always on, always everywhere network. Today, Wi-Fi is no longer a convenience but a mission critical utility.

WHAT’S IN THE BOX – Fortinet FortiAP U323EV – Wall mounting kit, ceiling mounting kit, T-Rail mounting kit

KEY SELLING POINTS

  • Universal access management
  • Excellent Wi-Fi technologies
  • Unmatched security protection



MAIN SPECIFICATIONS

Product Description Fortinet FortiAP U323EV – wireless access point
Device Type Wireless access point
Form Factor External – indoor
Localization Americas
Data Link Protocol Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz, 5 GHz
Capacity Maximum number of configured SSIDs: 16 ? Concurrent users per radio: 256
Included Accessories Wall mounting kit, ceiling mounting kit, T-Rail mounting kit
Power Over Ethernet (PoE) Supported PoE+
Dimensions (WxDxH) 8.6 in x 9 in x 1.7 in
Weight 2.25 lbs
Manufacturer Warranty Limited lifetime warranty

EXTENDED SPECIFICATIONS

General
Device Type Wireless access point
Ruggedized Design Indoor
Width 8.6 in
Depth 9 in
Height 1.7 in
Weight 2.25 lbs
Localization Americas
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 2.34 Gbps
Line Coding Format 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz, 5 GHz
Capacity Maximum number of configured SSIDs: 16 ? Concurrent users per radio: 256
Features Wall mountable, Mesh networking, LLDP support, Maximum Ratio Combining (MRC), 3T3R MIMO technology, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, ceiling mountable, Maximum Likelihood Demodulation (MLD), Captive Portal, security lock slot (cable lock sold separately), 802.1x authentication, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, T-Rail mountable, black list, spectrum analyzer, FortiPresence support, white list, Packet Sniffer Mode
Encryption Algorithm TLS, PEAP, TTLS, WPA, WPA2, WEP
Authentication Method Radio Service Set ID (SSID), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 2
Antenna
Antenna External detachable
Antenna Qty 6
Gain Level 5 dBi
Expansion / Connectivity
Interfaces 2 x 1000Base-T (PoE+) – RJ-45 ? 1 x USB – Type A ? 1 x RS-232 – RJ-45
Miscellaneous
Included Accessories Wall mounting kit, ceiling mounting kit, T-Rail mounting kit
MTBF >30 years
Compliant Standards ICES-003, FCC Part 15 B, RSS-210, RSS-102, FCC Part 15 C, UL 2043, FCC, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 E, CSA C22.2 No. 60950-1
Power
Power Over Ethernet (PoE) Supported PoE+
Dimensions & Weight (Shipping)
Shipping Weight 3.75 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 ?F
Max Operating Temperature 122 ?F
Humidity Range Operating 5 – 90% (non-condensing)
