FG-140E-POE

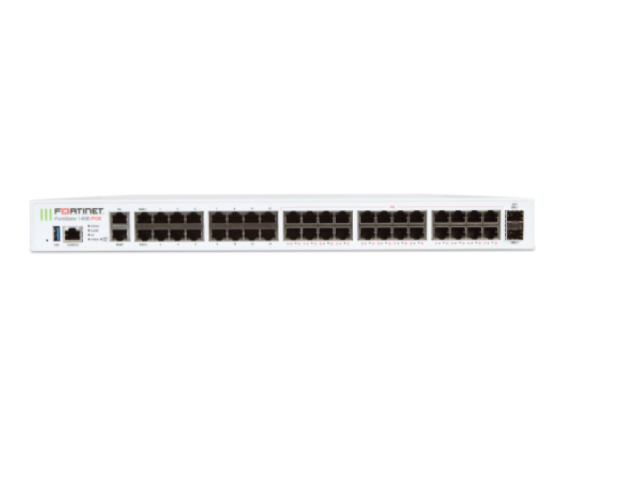

FG-140E-POE – Fortinet FortiGate 140E-POE – Security appliance – GigE – 1U – rack-mountable.
Availability: 0 In Stock
| SKU | FG-140E-POE |
|---|---|
| Condition | New |
| Brand | Fortinet |
| GTIN | 0 842382 107652 |
- Major Credit Cards Accepted
- Free Ground Shipping on all US Orders
- No Sales Tax
$2,886.00
Quantity:
Product Details
Fortinet FortiGate 140E-POE – Security appliance – GigE – 1U – rack-mountable
The FortiGate 100E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.
KEY SELLING POINTS
- Protects against known exploits, malware and malicious websites using continuous threat intelligence
- Identify thousands of applications including cloud applications for deep inspection into network traffic
- Detects unknown attacks using dynamic analysis and provides automated mitigation to stop targeted attacks
- Delivers an extensive routing, switching, wireless controller and high performance IPsec VPN capabilities
- Enables flexible deployment
- Provides industry-leading performance and protection for SSL encrypted traffic
MAIN SPECIFICATIONS |
|
| Product Description | Fortinet FortiGate 140E-POE – security appliance |
| Device Type | Security appliance |
| Form Factor | Rack-mountable – 1U |
| Processor | Fortinet FortiASIC SOC3 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Firewall throughput (1518-byte UDP): 7.4 Gbps ? Firewall throughput (512-byte UDP): 7.4 Gbps ? Firewall throughput (64-byte UDP): 4.4 Gbps ? Firewall latency (64-byte UDP): 3 ?s ? Firewall throughput: 6.6 Mpps ? VPN throughput (512-bit IPSec): 4 Gbps ? VPN throughput (SSL): 250 Mbps ? SSL inspection throughput: 190 Mbps ? Application control (AVC) throughput: 1 Gbps ? CAPWAP throughput (1444 byte, UDP): 1.5 Gbps ? IPS throughput (optimal traffic mix): 1.9 Gbps ? IPS throughput (enterprise traffic mix): 500 Mbps ? NGFW throughput: 360 Mbps ? Threat protection throughput: 250 Mbps |
| Capacity | Concurrent TCP sessions: 2000000 ? New TCP sessions per second: 30000 ? Firewall policies: 10000 ? Gateway to gateway IPSec VPN Tunnels: 2000 ? Client to gateway IPSec VPN tunnels: 10000 ? Concurrent SSL VPN users: 300 ? Virtual domains: 10 ? Maximum number of switches: 24 ? Number of FortiAP devices: 64 ? Number of FortiToken devices: 1000 ? Number of registered FortiClients: 600 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17 in x 15.5 in x 1.7 in |
| Weight | 12.35 lbs |
EXTENDED SPECIFICATIONS |
|
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 17 in |
| Depth | 15.5 in |
| Height | 1.7 in |
| Weight | 12.35 lbs |
| Processor / Memory / Storage | |
| Processors Installed | Fortinet FortiASIC SOC3 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Firewall throughput (1518-byte UDP): 7.4 Gbps ? Firewall throughput (512-byte UDP): 7.4 Gbps ? Firewall throughput (64-byte UDP): 4.4 Gbps ? Firewall latency (64-byte UDP): 3 ?s ? Firewall throughput: 6.6 Mpps ? VPN throughput (512-bit IPSec): 4 Gbps ? VPN throughput (SSL): 250 Mbps ? SSL inspection throughput: 190 Mbps ? Application control (AVC) throughput: 1 Gbps ? CAPWAP throughput (1444 byte, UDP): 1.5 Gbps ? IPS throughput (optimal traffic mix): 1.9 Gbps ? IPS throughput (enterprise traffic mix): 500 Mbps ? NGFW throughput: 360 Mbps ? Threat protection throughput: 250 Mbps |
| Capacity | Concurrent TCP sessions: 2000000 ? New TCP sessions per second: 30000 ? Firewall policies: 10000 ? Gateway to gateway IPSec VPN Tunnels: 2000 ? Client to gateway IPSec VPN tunnels: 10000 ? Concurrent SSL VPN users: 300 ? Virtual domains: 10 ? Maximum number of switches: 24 ? Number of FortiAP devices: 64 ? Number of FortiToken devices: 1000 ? Number of registered FortiClients: 600 |
| Status Indicators | Power, status, alarm, HA |
| Features | Firewall protection, VPN support, content filtering, manageable, High Availability, Intrusion Prevention System (IPS), anti-virus protection |
| Encryption Algorithm | SSL, 128-bit AES, 256-bit SHA, TLS 1.2 |
| Compliant Standards | IEEE 802.3at |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T – RJ-45 (WAN) ? 14 x 1000Base-T – RJ-45 ? 1 x 1000Base-T (management) – RJ-45 ? 1 x USB – Type A ? 2 x 1000Base-X – SFP (mini-GBIC) (DMZ) ? 1 x 1000Base-T – RJ-45 ? 1 x console ? 24 x 1000Base-T (PoE+) – RJ-45 – 30 W |
| Miscellaneous | |
| Compliant Standards | UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA Network IPS, RCM, ICSA SSL-VPN |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | Internal power supply |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 ?F |
| Max Operating Temperature | 104 ?F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
?
