FG-2000E
FG-2000E – Fortinet FortiGate 2000E – Security appliance – 10 GigE – 2U.
Availability: 0 In Stock
| Weight | 1 lbs |
|---|---|
| SKU | FG-2000E |
| Condition | New |
| Brand | Fortinet |
| GTIN |
- Major Credit Cards Accepted
- Free Ground Shipping on all US Orders
- No Sales Tax
$33,052.00
Quantity:
Product Details

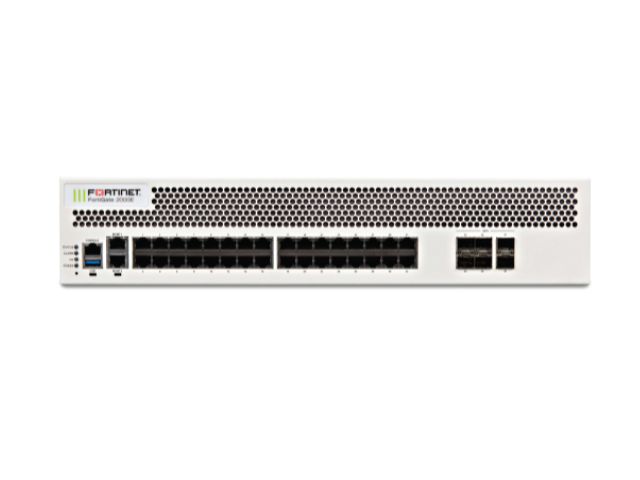

Fortinet FortiGate 2000E – Security appliance – 10 GigE – 2U
The FortiGate network appliances represent the enterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integrated architecture, that provides extremely high throughput and exceptionally low latency, while delivering excellent security effectiveness and consolidation. Targeted for large enterprises, the FortiGate 2000E delivers high NGFW and SSL inspection performance along with high port density and dual power supply for maximum flexibility.
WHAT’S IN THE BOX – Fortinet FortiGate 2000E – 2 SR SFP+ transceivers
MAIN SPECIFICATIONS |
|
| Product Description | Fortinet FortiGate 2000E – security appliance |
| Device Type | Security appliance |
| Form Factor | External – 2U |
| Processor | Fortinet FortiASIC CP9/NP6 |
| Hard Drive | 480 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Firewall throughput (1518-byte packet size): 90 Gbps ? Firewall throughput (512-byte packet size): 90 Gbps ? Firewall throughput (64-byte packet size): 60 Gbps ? IPS throughput (HTTP): 25 Gbps ? SSL inspection throughput: 12.5 Gbps ? Application control (AVC) throughput: 15 Gbps ? NGFW throughput: 9 Gbps ? Firewall latency (64-byte UDP): 2 ?s ? Firewall throughput: 90 Mpps ? VPN throughput (512-bit IPSec): 65 Gbps ? VPN throughput (SSL): 6 Gbps ? Threat prevention throughput: 5.4 Gbps ? CAPWAP throughput: 21 Gbps |
| Capacity | Concurrent sessions: 20000000 ? New sessions per second: 100000 ? Firewall policies: 100000 ? Gateway to gateway IPSec VPN Tunnels: 20000 ? Client to gateway IPSec VPN tunnels: 50000 ? Virtual domains: 500 ? Number of FortiAP devices: 4096 ? Maximum number of registered endpoints: 8000 ? Number of FortiToken devices: 5000 |
| Included Accessories | 2 SR SFP+ transceivers |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 21.9 in x 3.5 in |
| Weight | 37.04 lbs |
EXTENDED SPECIFICATIONS |
|
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 2U |
| Width | 17.4 in |
| Depth | 21.9 in |
| Height | 3.5 in |
| Weight | 37.04 lbs |
| Processor / Memory / Storage | |
| Processors Installed | Fortinet FortiASIC CP9/NP6 |
| Hard Drive | SSD 480 GB |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | Firewall throughput (1518-byte packet size): 90 Gbps ? Firewall throughput (512-byte packet size): 90 Gbps ? Firewall throughput (64-byte packet size): 60 Gbps ? IPS throughput (HTTP): 25 Gbps ? SSL inspection throughput: 12.5 Gbps ? Application control (AVC) throughput: 15 Gbps ? NGFW throughput: 9 Gbps ? Firewall latency (64-byte UDP): 2 ?s ? Firewall throughput: 90 Mpps ? VPN throughput (512-bit IPSec): 65 Gbps ? VPN throughput (SSL): 6 Gbps ? Threat prevention throughput: 5.4 Gbps ? CAPWAP throughput: 21 Gbps |
| Capacity | Concurrent sessions: 20000000 ? New sessions per second: 100000 ? Firewall policies: 100000 ? Gateway to gateway IPSec VPN Tunnels: 20000 ? Client to gateway IPSec VPN tunnels: 50000 ? Virtual domains: 500 ? Number of FortiAP devices: 4096 ? Maximum number of registered endpoints: 8000 ? Number of FortiToken devices: 5000 |
| Status Indicators | Power, status, alarm, HA |
| Features | Firewall protection, VPN support, content filtering, IPv6 support, VPN passthrough, antivirus analysis, High Availability, Intrusion Prevention System (IPS), IPv4 support |
| Encryption Algorithm | SSL |
| Expansion / Connectivity | |
| Interfaces | 32 x 1000Base-T – RJ-45 ? 6 x 10Gb Ethernet – SFP+ ? 1 x console – RJ-45 ? 2 x 1000Base-T (management) – RJ-45 ? 1 x USB 2.0 – Type A |
| Miscellaneous | |
| Included Accessories | 2 SR SFP+ transceivers |
| Compliant Standards | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A |
| Power | |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 430 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 ?F |
| Max Operating Temperature | 104 ?F |
| Humidity Range Operating | 20 – 90% (non-condensing) |
