FG-301E-LENC

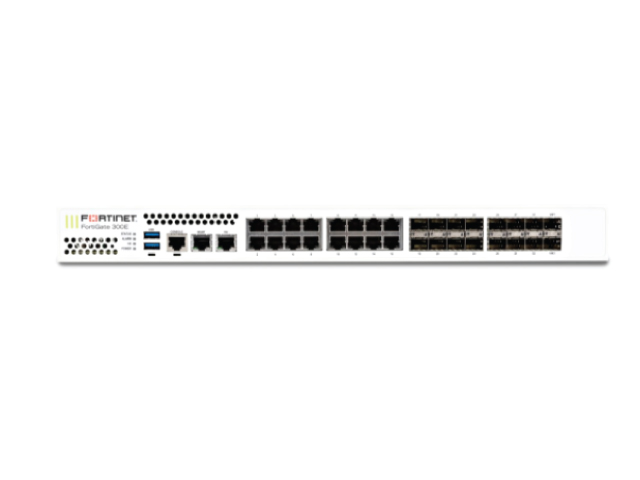

FG-301E-LENC – Fortinet FortiGate 301E – Low Encryption – security appliance – GigE – 1U – rack-mountable.
Availability: 0 In Stock
| Weight | 1 lbs |
|---|---|
| SKU | FG-301E-LENC |
| Condition | New |
| Brand | Fortinet |
| GTIN | 0 842382159262 |
- Major Credit Cards Accepted
- Free Ground Shipping on all US Orders
- No Sales Tax
$6,334.00
Quantity:
Product Details
Fortinet FortiGate 301E – Low Encryption – security appliance – GigE – 1U – rack-mountable
The FortiGate 300E series delivers modern firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protects against cyber threats with security processor powered high performance, security efficacy and deep visibility.
KEY SELLING POINTS
- Protects against known exploits, malware and malicious websites
- Identifies thousands of applications
- Protects against unknown attacks using dynamic analysis
- Provides incredible performance and protection for SSL-encrypted traffic
MAIN SPECIFICATIONS |
|
| Product Description | Fortinet FortiGate 301E – Low Encryption – security appliance |
| Device Type | Security appliance |
| Form Factor | Rack-mountable – 1U |
| Processor | Fortinet FortiASIC CP9/NP6 |
| Hard Drive | 240 GB x 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Firewall throughput (1518-byte UDP): 32 Gbps ? Firewall throughput (512-byte UDP): 32 Gbps ? Firewall throughput (64-byte UDP): 30 Gbps ? Firewall latency (64-byte UDP): 3 ?s ? Firewall throughput: 30 Mpps ? VPN throughput (512-bit IPSec): 20 Gbps ? VPN throughput (SSL): 2.5 Gbps ? SSL inspection throughput: 6.8 Gbps ? Application control (AVC) throughput: 7 Gbps ? IPS throughput (enterprise traffic mix): 5 Gbps ? NGFW throughput: 3.5 Gbps ? CAPWAP throughput: 5 Gbps ? Threat protection throughput: 3 Gbps ? IPS throughput (optimal traffic mix): 11 Gbps |
| Capacity | Concurrent TCP sessions: 4000000 ? New TCP sessions per second: 300000 ? Firewall policies: 10000 ? Gateway to gateway IPSec VPN Tunnels: 2000 ? Client to gateway IPSec VPN tunnels: 50000 ? Concurrent SSL VPN users: 500 ? Virtual domains: 10 ? Number of FortiAP devices: 512 ? Number of FortiToken devices: 1000 ? Maximum number of registered endpoints: 600 |
| Included Accessories | 2 SX SFP transceivers |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 15 in x 1.7 in |
| Weight | 16.75 lbs |
EXTENDED SPECIFICATIONS |
|
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Built-in Devices | LED panel |
| Width | 17 in |
| Depth | 15 in |
| Height | 1.7 in |
| Weight | 16.75 lbs |
| Processor / Memory / Storage | |
| Processors Installed | Fortinet FortiASIC CP9/NP6 |
| Hard Drive | SSD 240 GB x 2 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec, SCTP |
| Remote Management Protocol | HTTP |
| Performance | Firewall throughput (1518-byte UDP): 32 Gbps ? Firewall throughput (512-byte UDP): 32 Gbps ? Firewall throughput (64-byte UDP): 30 Gbps ? Firewall latency (64-byte UDP): 3 ?s ? Firewall throughput: 30 Mpps ? VPN throughput (512-bit IPSec): 20 Gbps ? VPN throughput (SSL): 2.5 Gbps ? SSL inspection throughput: 6.8 Gbps ? Application control (AVC) throughput: 7 Gbps ? IPS throughput (enterprise traffic mix): 5 Gbps ? NGFW throughput: 3.5 Gbps ? CAPWAP throughput: 5 Gbps ? Threat protection throughput: 3 Gbps ? IPS throughput (optimal traffic mix): 11 Gbps |
| Capacity | Concurrent TCP sessions: 4000000 ? New TCP sessions per second: 300000 ? Firewall policies: 10000 ? Gateway to gateway IPSec VPN Tunnels: 2000 ? Client to gateway IPSec VPN tunnels: 50000 ? Concurrent SSL VPN users: 500 ? Virtual domains: 10 ? Number of FortiAP devices: 512 ? Number of FortiToken devices: 1000 ? Maximum number of registered endpoints: 600 |
| Status Indicators | Power, status, alarm, HA |
| Features | Firewall protection, switching, routing, VPN support, content filtering, manageable, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, IPv4 support, CAPWAP support, checksum offload support, anti-virus protection, SSL inspection |
| Encryption Algorithm | SSL, 256-bit AES, 256-bit SHA, TLS 1.2 |
| Expansion / Connectivity | |
| Interfaces | 1 x console – RJ-45 ? 16 x 1000Base-T – RJ-45 ? 2 x 1000Base-T (management) – RJ-45 ? 16 x Ethernet 1000 – SFP (mini-GBIC) ? 2 x USB – Type A |
| Miscellaneous | |
| Included Accessories | 2 SX SFP transceivers |
| Compliant Standards | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, USGv6, ICSA SSL-VPN, ICSA IPS |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 95 Watt |
| Software / System Requirements | |
| OS Provided | FortiOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 ?F |
| Max Operating Temperature | 104 ?F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
?
