FG-5001E1
FG-5001E1 – Fortinet FortiGate 5001E1 – 2 – 10Gb Ethernet SR SFP+ transceiver.
Availability: 0 In Stock
| Weight | 1 lbs |
|---|---|
| SKU | FG-5001E1 |
| Condition | New |
| Brand | Fortinet |
| GTIN |
- Major Credit Cards Accepted
- Free Ground Shipping on all US Orders
- No Sales Tax
$61,973.00
Quantity:
Product Details

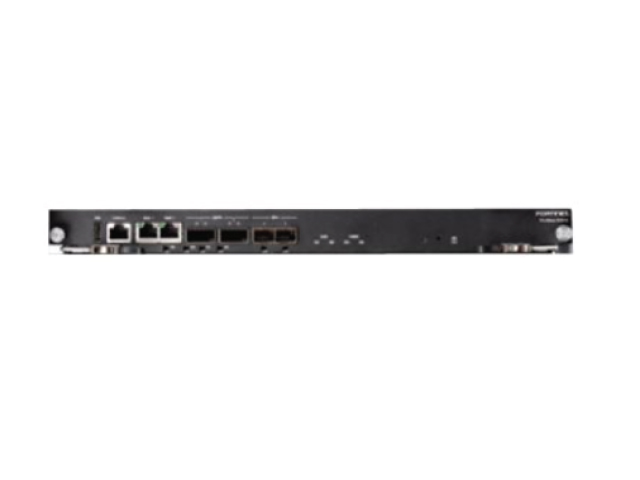

Fortinet FortiGate 5001E1 – Security appliance – 10 GigE, 40 Gigabit LAN – plug-in module
High-performance, Security Processing Unit (SPU) powered security blades run on FortiOS or FortiCarrier which apply access policies and security profiles on the traffic they receive from the networking blades via backplane or front panel interfaces. These blades may operate in NAT/route and/or transparent mode. They also support VDOMs (virtual domains) within the cluster.
WHAT’S IN THE BOX – Fortinet FortiGate 5001E1 – 2 x 10Gb Ethernet SR SFP+ transceiver
MAIN SPECIFICATIONS |
|
| Product Description | Fortinet FortiGate 5001E1 – security appliance |
| Device Type | Security appliance |
| Form Factor | Plug-in module |
| Processor | Fortinet FortiASIC CP8/NP6 |
| Hard Drive | 480 GB |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Performance | IPS throughput (HTTP): 25 Gbps ? VPN throughput (512-bit IPSec): 45 Gbps ? VPN throughput (SSL): 9 Gbps ? Firewall latency (64-byte UDP): 3 ?s ? Firewall throughput: 75 Mpps ? Firewall throughput (1518-byte UDP): 80 Gbps ? Firewall throughput (512-byte UDP): 80 Gbps ? Firewall throughput (64-byte UDP): 50 Gbps ? IPS throughput (enterprise traffic mix): 18 Gbps ? SSL inspection throughput: 17 Gbps ? Application control (AVC) throughput: 36 Gbps ? NGFW throughput: 15 Gbps ? Threat protection throughput: 13.5 Gbps ? CAPWAP throughput: 15 Gbps |
| Capacity | Client to gateway IPSec VPN tunnels: 64000 ? Gateway to gateway IPSec VPN Tunnels: 40000 ? Concurrent TCP sessions: 40000000 ? New TCP sessions per second: 640000 ? Firewall policies: 200000 ? Virtual domains: 10 (maximum 500) ? Number of FortiAP devices: 4096 ? Number of FortiToken devices: 5000 ? Number of FortiClient devices: 20000 ? Concurrent SSL VPN users: 25000 |
| Included Accessories | 2 x 10Gb Ethernet SR SFP+ transceiver |
EXTENDED SPECIFICATIONS |
|
| General | |
| Device Type | Security appliance |
| Processor / Memory / Storage | |
| Processors Installed | Fortinet FortiASIC CP8/NP6 |
| Hard Drive | SSD 480 GB |
| Networking | |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec |
| Remote Management Protocol | HTTP |
| Performance | IPS throughput (HTTP): 25 Gbps ? VPN throughput (512-bit IPSec): 45 Gbps ? VPN throughput (SSL): 9 Gbps ? Firewall latency (64-byte UDP): 3 ?s ? Firewall throughput: 75 Mpps ? Firewall throughput (1518-byte UDP): 80 Gbps ? Firewall throughput (512-byte UDP): 80 Gbps ? Firewall throughput (64-byte UDP): 50 Gbps ? IPS throughput (enterprise traffic mix): 18 Gbps ? SSL inspection throughput: 17 Gbps ? Application control (AVC) throughput: 36 Gbps ? NGFW throughput: 15 Gbps ? Threat protection throughput: 13.5 Gbps ? CAPWAP throughput: 15 Gbps |
| Capacity | Client to gateway IPSec VPN tunnels: 64000 ? Gateway to gateway IPSec VPN Tunnels: 40000 ? Concurrent TCP sessions: 40000000 ? New TCP sessions per second: 640000 ? Firewall policies: 200000 ? Virtual domains: 10 (maximum 500) ? Number of FortiAP devices: 4096 ? Number of FortiToken devices: 5000 ? Number of FortiClient devices: 20000 ? Concurrent SSL VPN users: 25000 |
| Status Indicators | Port transmission speed, power, HDD activity, status, link/activity |
| Features | Firewall protection, VPN support, manageable, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), CAPWAP support, anti-virus protection |
| Encryption Algorithm | SSL, SHA-1, 256-bit AES, TLS 1.2 |
| Expansion / Connectivity | |
| Interfaces | 1 x USB – Type A ? 1 x console – RJ-45 ? 2 x 1000Base-T (management) – RJ-45 ? 2 x 1Gb Ethernet/10Gb Ethernet – SFP+ ? 2 x 40Gb Ethernet – QSFP+ |
| Miscellaneous | |
| Included Accessories | 2 x 10Gb Ethernet SR SFP+ transceiver |
| Compliant Standards | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, ICSA SSL-VPN, ICSA IPS |
| Power | |
| Power Consumption Operational | 250 Watt |
| Software / System Requirements | |
| OS Provided | FortiOS |
| Environmental Parameters | |
| Min Operating Temperature | 23 ?F |
| Max Operating Temperature | 131 ?F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
?
