FS-248D

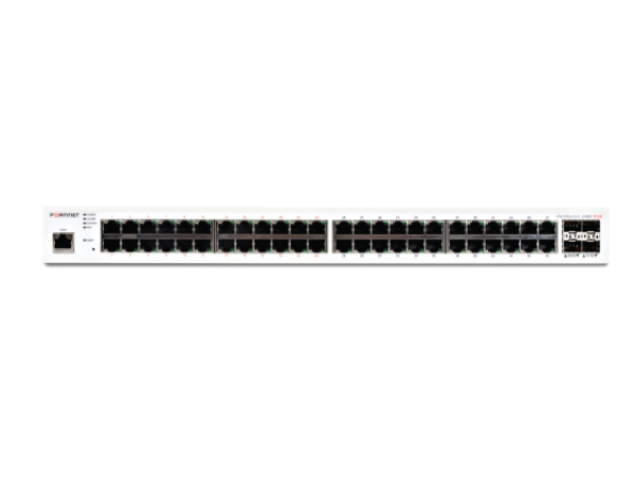

FS-248D – Fortinet FortiSwitch 248D – Switch – managed – 48 – 10/100/1000 – 4 – Gigabit SFP – rack-mountable.
Availability: 0 In Stock
| Weight | 11 lbs |
|---|---|
| Dimensions | 22 × 15 × 5 in |
| SKU | FS-248D |
| Condition | New |
| Brand | Fortinet |
| GTIN | 0 817059023696 |
- Major Credit Cards Accepted
- Free Ground Shipping on all US Orders
- No Sales Tax
$1,036.00
Quantity:
Product Details
Fortinet FortiSwitch 248D – Switch – managed – 48 x 10/100/1000 + 4 x Gigabit SFP – rack-mountable
Mid-range layer 3 capable “Secure Simple Scalable” Ethernet switch designed for desktop to wiring closet. FortiLink enabled, the 200 series integrates with our FortiGate NGFW to offer the most secure Ethernet solution in the market.
KEY SELLING POINTS
- Secure Access switches suitable for wire closet and desktop installations
- Devices are identified and users authenticated prior to being granted access to the network
- Centralized security management and reporting from FortiGate interface
- Power over Ethernet capable, including PoE+
- Ideal for converged network environments, enabling voice, data and wireless traffic to be delivered across a single network
MAIN SPECIFICATIONS |
|
| Product Description | Fortinet FortiSwitch 248D – switch – 48 ports – managed – rack-mountable |
| Device Type | Switch – 48 ports – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Switching throughput: 104 Gbps ? Forwarding performance: 155 Mpps ? Latency: 1 ?s |
| Capacity | Virtual interfaces (VLANs): 4000 ? Maximum aggregation groups: 26 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, BGP |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Features | Flow control, DHCP support, VLAN support, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), tagged VLAN, 1.5MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 9.7 in x 1.7 in |
| Weight | 7.8 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
EXTENDED SPECIFICATIONS |
|
| General | |
| Device Type | Switch – 48 ports – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Switching throughput: 104 Gbps ? Forwarding performance: 155 Mpps ? Latency: 1 ?s |
| Capacity | Virtual interfaces (VLANs): 4000 ? Maximum aggregation groups: 26 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, BGP |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Authentication Method | RADIUS |
| Features | Flow control, DHCP support, VLAN support, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), tagged VLAN, 1.5MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 ? 4 x Gigabit LAN SFP ? 1 x console RJ-45 ? 1 x management (Gigabit LAN) RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 38.66 Watt |
| Miscellaneous | |
| MTBF | 10 years |
| Compliant Standards | UL, VCCI, C-Tick, cUL, CB, FCC Part 15 A, RoHS2 |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 9.7 in |
| Height | 1.7 in |
| Weight | 7.8 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 ?F |
| Max Operating Temperature | 122 ?F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -4 ?F |
| Max Storage Temperature | 158 ?F |
?
