FS-3032E

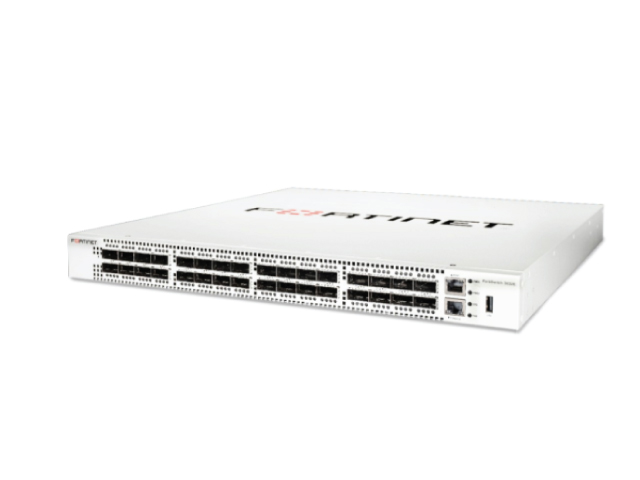

FS-3032E – Fortinet FortiSwitch 3032E – Switch – managed – 32 – 100 Gigabit QSFP28 – 40 Gigabit QSFP+ – rack-mountable.
Availability: 0 In Stock
| Weight | 1 lbs |
|---|---|
| SKU | FS-3032E |
| Condition | New |
| Brand | Fortinet |
| GTIN | 0 842382163368 |
- Major Credit Cards Accepted
- Free Ground Shipping on all US Orders
- No Sales Tax
$19,418.00
Quantity:
Product Details
Fortinet FortiSwitch 3032E – Switch – managed – 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ – rack-mountable
FortiSwitch Data Center switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding throughput, resiliency and scalability. Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements. FortiSwitch Data Center switches meet these challenges by providing a high performance 10 GE, 40 GE or 100 GE capable switching platform, with a low Total Cost of Ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as SD-Branch network core deployments, these switches are purpose-built to meet the needs of today’s bandwidth intensive environments.
KEY SELLING POINTS
- High throughput Ethernet switch suitable for Top of Rack or large SD-Branch network deployments
- 1 GE, 10 GE, or 100 GE access ports, in a compact 1 RU form factor with 40 or 100 GE capable uplinks
- FortiGate management through FortiLink, enabling the Security Fabric
- Stackable up to 300 switches per FortiGate depending on model
- Dual hot swappable power supplies for redundancy
- Supports Wire-speed switching with both Store and Forward and Cut Through forwarding modes
MAIN SPECIFICATIONS |
|
| Product Description | Fortinet FortiSwitch 3032E – switch – 32 ports – managed – rack-mountable |
| Device Type | Switch – 32 ports – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ |
| Performance | Switching capacity: 6400 Gbps ? Latency: 1 ?s ? Packets per second: 9520 Mpps |
| Capacity | Link aggregation groups: up to 48 ? Total link aggregation groups: 48 ? Queues per port: 8 ? Routing entries: 8000 ? Host entries: 32000 |
| MAC Address Table Size | 40K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | IS-IS, RIP-2, BGP, VRRP, OSPFv2, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Features | Flow control, firewall protection, auto-negotiation, IGMP snooping, Syslog support, port mirroring, store and forward, High Availability, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, priority-based flow control, DHCP snooping, Access Control List (ACL) support, Dynamic ARP Inspection (DAI), STP Root Guard, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, DHCP client, Dynamic VLAN Support (GVRP), 802.1x authentication, 16MB packet buffer, Type of Service (ToS), cut-through, Storm Control, Back Pressure Support, LLDP-MED, Private VLAN, MAC based VLAN, VLAN Tagging, port-based VLAN, port trunking, black list, IP forwarding support, white list, FortiLink Mode, MAC Access Bypass (MAB), Telnet server, DSCP based ToS, Multichassis link aggregation (MC-LAG), Link Aggregation Group (LAG), RESTful APIs |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 18.1 in x 1.7 in |
| Weight | 19.33 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
EXTENDED SPECIFICATIONS |
|
| General | |
| Device Type | Switch – 32 ports – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ |
| Performance | Switching capacity: 6400 Gbps ? Latency: 1 ?s ? Packets per second: 9520 Mpps |
| Capacity | Link aggregation groups: up to 48 ? Total link aggregation groups: 48 ? Queues per port: 8 ? Routing entries: 8000 ? Host entries: 32000 |
| MAC Address Table Size | 40K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | IS-IS, RIP-2, BGP, VRRP, OSPFv2, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Features | Flow control, firewall protection, auto-negotiation, IGMP snooping, Syslog support, port mirroring, store and forward, High Availability, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, priority-based flow control, DHCP snooping, Access Control List (ACL) support, Dynamic ARP Inspection (DAI), STP Root Guard, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, DHCP client, Dynamic VLAN Support (GVRP), 802.1x authentication, 16MB packet buffer, Type of Service (ToS), cut-through, Storm Control, Back Pressure Support, LLDP-MED, Private VLAN, MAC based VLAN, VLAN Tagging, port-based VLAN, port trunking, black list, IP forwarding support, white list, FortiLink Mode, MAC Access Bypass (MAB), Telnet server, DSCP based ToS, Multichassis link aggregation (MC-LAG), Link Aggregation Group (LAG), RESTful APIs |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb |
| RAM | 8 GB |
| Flash Memory | 128 GB |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gbit/40Gbit LAN QSFP28/QSFP+ ? 1 x 1000Base-T RJ-45 management ? 1 x console RJ-45 management |
| Power | |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 463.8 Watt |
| Miscellaneous | |
| MTBF | 10 years |
| Compliant Standards | UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 18.1 in |
| Height | 1.7 in |
| Weight | 19.33 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 ?F |
| Max Operating Temperature | 104 ?F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -4 ?F |
| Max Storage Temperature | 158 ?F |
?
