FS-524D

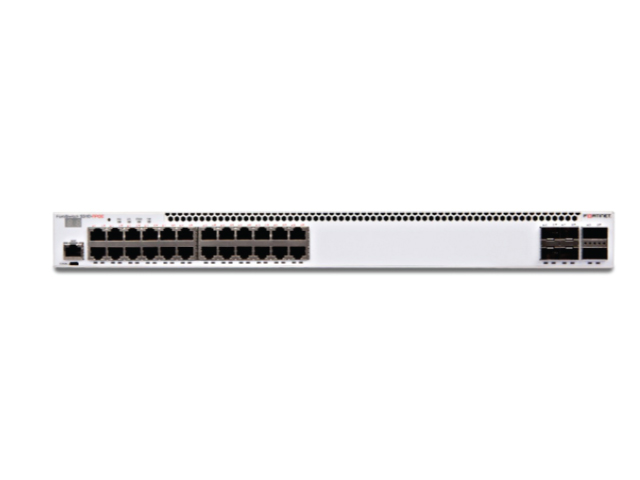

FS-524D – Fortinet FortiSwitch 524D – Switch – managed – 24 – 10/100/1000 – 4 – 10 Gigabit SFP+ – 2 – 40 Gigabit QSFP+ – rack-mountable.

Availability: 0 In Stock
Weight 15 lbs
Dimensions 13 × 18 × 2 in
SKU

FS-524D

Condition

New

Brand

Fortinet

GTIN

0 40232382048

Payment Options

$2,742.00

Quantity:

Product Details

Fortinet FortiSwitch 524D – Switch – managed – 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ – rack-mountable

FortiSwitch secure access switches deliver outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect. When a device connects to the Ethernet port of a secure access switch, it is first identified, and then the user is authenticated. Once authenticated, access to the network is granted based on pre-defined security policy from the FortiGate, ensuring secure network access across the enterprise, without impacting the user experience.

KEY SELLING POINTS

  • Secure access switches suitable for wire closet and desktop installations
  • Devices are identified and users authenticated prior to being granted access to the network
  • Centralized security management and reporting from FortiGate interface
  • Ideal for converged network environments, enabling voice, data and wireless traffic to be delivered across a single network
  • Power over Ethernet capable



MAIN SPECIFICATIONS

Product Description Fortinet FortiSwitch 524D – switch – 24 ports – managed – rack-mountable
Device Type Switch – 24 ports – managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Performance Switching capacity: 288 Gbps – Throughput: 428 Mpps – Latency: 2 s
Capacity Virtual interfaces (VLANs): 4000 Maximum aggregation groups: 24
MAC Address Table Size 96K entries
Jumbo Frame Support Yes
Routing Protocol IGMPv2, IGMP, IGMPv3
Remote Management Protocol SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features Routing, auto-negotiation, VLAN support, IGMP snooping, Syslog support, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Management Information Base (MIB), static routing, tagged VLAN, Storm Control
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 17.3 in x 12.2 in x 1.7 in
Weight 13.67 lbs
Manufacturer Warranty Limited lifetime warranty

EXTENDED SPECIFICATIONS

General
Device Type Switch – 24 ports – managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Performance Switching capacity: 288 Gbps – Throughput: 428 Mpps – Latency: 2 s
Capacity Virtual interfaces (VLANs): 4000 – Maximum aggregation groups: 24
MAC Address Table Size 96K entries
Jumbo Frame Support Yes
Routing Protocol IGMPv2, IGMP, IGMPv3
Remote Management Protocol SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Routing, auto-negotiation, VLAN support, IGMP snooping, Syslog support, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Management Information Base (MIB), static routing, tagged VLAN, Storm Control
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM 2 GB
Flash Memory 128 MB
Expansion / Connectivity
Interfaces 24 x 1000Base-TX RJ-45 – 4 x 10Gbit LAN SFP+ – 2 x 40Gbit LAN QSFP+ – 1 x 1000Base-T RJ-45 management – 1 x console RJ-45
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 75 Watt
Miscellaneous
MTBF 10 years
Compliant Standards UL, VCCI, BSMI, CB, FCC, RoHS, RCM
Dimensions & Weight
Width 17.3 in
Depth 12.2 in
Height 1.7 in
Weight 13.67 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 113 F
Humidity Range Operating 5 – 95% (non-condensing)
Min Storage Temperature -40 F
Max Storage Temperature 158 F
