Fortinet – GPI-115

$53.00 & Free Shipping

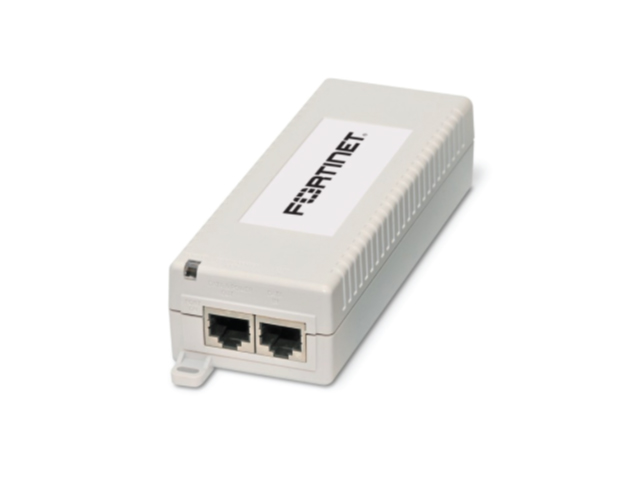

GPI-115 – Fortinet – PoE injector – AC 100-240 – 15.4 Watt – for FortiAP 210B, 220B.

6 in stock

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: GPI-115 Categories: , ,


Part : GPI-115
Condition : New
Brand : Fortinet
For QUANTITY DISCOUNTS – Call us at 833-375-8324

Fortinet – PoE injector – AC 100-240 V – 15.4 Watt – for FortiAP 210B, 220B

The single port GPI-115 Power over Ethernet (PoE) injector offers a compact and cost-effective, fully IEEE 802.3af-compliant solution for FortiAP wireless access point family and other 802.3af-compliant devices. It delivers single-port, mid-span, with 15.4 watts of Gigabit Ethernet (GbE) PoE, giving you maximum deployment flexibility.

The GPI-115 mid-span injector works with legacy network devices and thus eliminates the need to forklift upgrade installed switches. Moreover the GPI-115 operates in high availability configuration by connecting to an existing Ethernet switch Uninterruptible Power Supply (UPS) or alternatively to its own dedicated UPS.

The GPI-115 PoE injector makes installing FortiAP access points easy and economical. It allows you to place the FortiAP access point at its optimal location by eliminating the need for an AC power outlet in a ceiling or wall. The GPI-115 injects 48 V DC power directly into the same GbE cable that carries the Ethernet traffic, avoiding installation of additional cabling.

The GPI-115 utilizes an intelligent design to automatically supply power to only those devices that can accept 802.3af power over the Ethernet connection. It ensures that non-802.3af units such as legacy NICs can continue to operate.


  • 48 V DC power for 802.3 af standard and pre-standard end terminals
  • Ideal for low density distributed retail and branch locations
  • Support for Fast Ethernet and GbE data transmissions
  • Safe powering of FortiAP access points
  • Economical switch substitute for PoE in small deployments
  • Plug and Play saves time and reduces costs
  • Protects investment by working in legacy network



Product Description Fortinet – PoE injector – 15.4 Watt
Device Type PoE injector – external
Weight 7.05 oz
Input Voltage AC 100-240 V
Output Voltage 48 V
Power Capacity 15.4 Watt
Output connectors 1 x RJ-45
Dimensions (WxDxH) 2.1 in x 5.5 in x 1.3 in
Designed For FortiAP 210B, 220B


Device Type PoE injector – external
Power Device
Input Voltage AC 100-240 V
Input Voltage Range AC 90 – 264 V
Frequency Required 47 – 63 Hz
Power Output Connectors Details 1 x RJ-45
Output Voltage 48 V
Power Capacity 15.4 Watt
Expansion / Connectivity
Interfaces 1 x Gigabit LAN – RJ-45
MTBF 100,000 hours
Features LED indicators
Compliant Standards Plug and Play, UL, VCCI, cUL, GS, EN55024, EN55022 Class B, FCC Part 15 B, RoHS, IEC 60950-1, WEEE
Environmental Parameters
Min Operating Temperature 32 ?F
Max Operating Temperature 104 ?F
Humidity Range Operating 0 – 90% (non-condensing)
Dimensions & Weight
Width 2.1 in
Depth 5.5 in
Height 1.3 in
Weight 7.05 oz
Compatibility Information
Designed For Fortinet FortiAP 210B, 220B
