JY720A

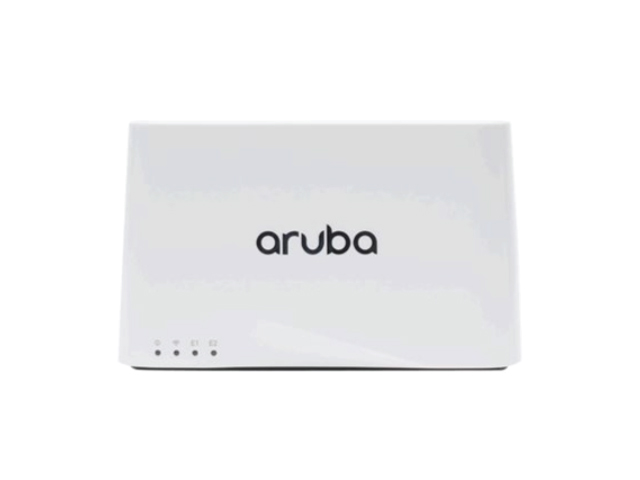

JY720A – HPE Aruba AP-203RP (RW) – Wireless access point – Wi-Fi – 2.4 GHz, – GHz.
| Weight | 2 lbs |
|---|---|
| SKU | JY720A |
| Condition | New |
| Brand | HPE |
| GTIN | 0 1 90017 10776 9 |
- Major Credit Cards Accepted
- Free Ground Shipping on all US Orders
- No Sales Tax
$264.00
Quantity:
Product Details
HPE Aruba AP-203RP (RW) – Wireless access point – Wi-Fi – 2.4 GHz, 5 GHz
Aruba 203R Series Unified Remote Access Points deliver secure and fast IEEE 802.11ac wireless and wired network access to corporate resources for branch and home offices. Unique in the industry, the compact Aruba 203R remote AP is software-configurable to operate in either 1×1 dual-radio mode, or 2×2 single-radio mode. It supports up to 867 Mbps in the 5 GHz band or up to 400 Mbps in the 2.4 GHz band when operating in single-radio 2×2 mode. In dual-radio 1×1 mode, the maximum data rates are 433 Mbps in the 5 GHz band and 200 Mbps in the 2.4 GHz band.
WHAT’S IN THE BOX – Aruba AP-203RP (RW) – Wall mounting kit, cover
MAIN SPECIFICATIONS |
|
| Product Description | HPE Aruba AP-203RP (RW) – wireless access point |
| Device Type | Wireless access point |
| Form Factor | External – indoor |
| Localization | Rwanda |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 400 Mbps ? Maximum data rate (5 GHz): 867 Mbps |
| Capacity | Wireless clients per Wi-Fi radio: 255 ? BSSIDs per radio: 16 |
| Included Accessories | Wall mounting kit, cover |
| OS Required | ArubaOS, InstantOS |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 6.1 in x 2 in x 3.7 in |
| Weight | 11.99 oz |
| Manufacturer Warranty | Limited lifetime warranty |
EXTENDED SPECIFICATIONS |
|
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 6.1 in |
| Depth | 2 in |
| Height | 3.7 in |
| Weight | 11.99 oz |
| Localization | Rwanda |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 867 Mbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | OFDM, DSSS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 400 Mbps ? Maximum data rate (5 GHz): 867 Mbps |
| Capacity | Wireless clients per Wi-Fi radio: 255 ? BSSIDs per radio: 16 |
| Status Indicators | Port status, power, system, status, PoE, wireless, link/activity |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, wall mountable, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Energy Efficient Ethernet, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), dual-stream (2×2), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), Aruba Beacons Bluetooth Low-Energy (BLE) technology, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 2.9 dBi |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (uplink) – RJ-45 ? 1 x 1000Base-T (PoE) – RJ-45 ? 1 x 1000Base-T – RJ-45 ? 1 x USB 2.0 – Type A ? 1 x console |
| Miscellaneous | |
| Included Accessories | Wall mounting kit, cover |
| MTBF | 493,000 hours |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, CB, FCC, R&TTE, EN 60601-1-2, cTUVus, EN 60601-1, Directive 2006/95/EEC, Directive 72/23/EEC, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, EN 301 893, R&TTE Directive 1995/5/EC |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 8.2 Watt |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 ?F |
| Max Operating Temperature | 104 ?F |
| Humidity Range Operating | 5 – 93% (non-condensing) |
?
