Images, dimensions, weight, and other product details are for reference only and may vary for actual product.

To buy higher quantities of WS-C3850-24U-E email us at sales@d-ziner.com or call us at 833-375-8324.

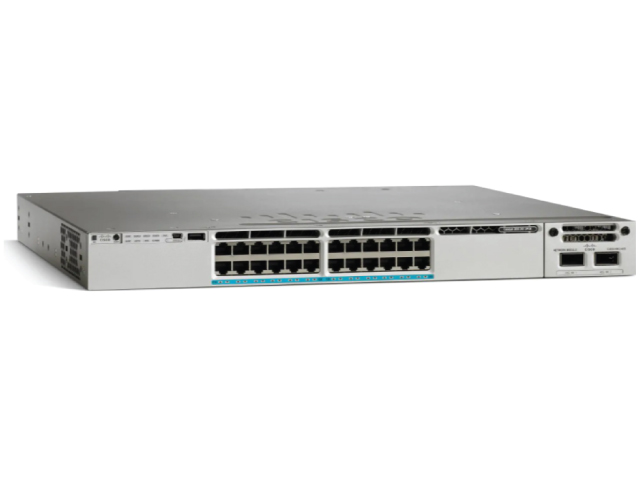

New CISCO 3850 Catalyst WS-C3850-24U-E 24 Ports Layer 3 Supported Network Switch

MPN: WS-C3850-24U-E | UPC: 0 882658547720 | CONDITION: New

What is the price of WS-C3850-24U-E?

$5,932.00

Free Ground Shipping to USA

Stock
Availability: 5 in stock

Payments processed via Stripe Payments Gateway. Only Mastercard, Visa, American Express are accepted. Bank wire option also available upon request.

Major Credit Cards Accepted

Free Ground Shipping in USA

Secure Payments

Safe Checkout

Product details for WS-C3850-24U-E

1. What are the weight and dimensions for WS-C3850-24U-E?

Weight	15 lbs
Dimensions	16 × 18 × 2 in
SKU	WS-C3850-24U-E
Condition	New
Brand	CISCO
GTIN	0 882658547720

2. What is the warranty for WS-C3850-24U-E?

The warranty for refurbished units is 30 days.
The warranty for New units is as per the manufacturer’s terms and conditions.

Cisco Catalyst 3850-24U-E – Switch – L3 – managed – 24 x 10/100/1000 (UPOE) – desktop, rack-mountable – UPOE (800 W)

Cisco unified access is the convergence of the wired and wireless networks into one physical infrastructure. It offers greater intelligence, simplicity, performance, and open interfaces. One network starts with Cisco Catalyst 3850 switches, which combine wired and wireless by supporting wireless tunnel termination and full wireless LAN controller functionality.

The Cisco Catalyst 3850 switch currently offers the industry’s high 480 Gbps stacking bandwidth to meet network demand. The switch delivers advanced capabilities such as a high-performance 24 ports GE switch, 480 G stacking, Power over Ethernet Plus, StackPower, and Flexible NetFlow on all ports.

Key Selling Points

Best-in-class stackable access switch
Converged wired and wireless access
Distributed intelligent services
Foundation for Cisco open network environment

Main Specifications

Product Description	Cisco Catalyst 3850-24U-E – switch – 24 ports – managed – rack-mountable
Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)	UPOE
PoE Budget	800 W
Performance	Switching capacity: 92 Gbps – Stacking bandwidth: 480 Gbps
Capacity	IPv4 routes: 24000 – NetFlow entries: 24000 – Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Features	Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, universal power over Ethernet (UPOE), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power	AC 120/230 V (50/60 Hz)
Power Redundancy	Optional
Dimensions (WxDxH)	17.5 in x 17.7 in x 1.8 in
Weight	16.53 lbs
Manufacturer Warranty	Limited lifetime warranty

Extended Specifications

General

Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)	UPOE
PoE Budget	800 W
Performance	Switching capacity: 92 Gbps – Stacking bandwidth: 480 Gbps
Capacity	IPv4 routes: 24000 – NetFlow entries: 24000 – Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, universal power over Ethernet (UPOE), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM	4 GB
Flash Memory	2 GB
Status Indicators	Port transmission speed, port duplex mode, system, status, PoE

Expansion / Connectivity

Interfaces	24 x 1000Base-T RJ-45 UPOE – 60 W – 1 x USB Type A – 1 x management (mini-USB) Type B – 1 x serial (RS-232) RJ-45 management – 1 x management (Gigabit LAN) RJ-45 – 2 x network stack device
Expansion Slots	1 (total) / 1 (free) x Stacking Module slot

Power

Power Device	Internal power supply
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Power Provided	1100 Watt
Voltage Required	AC 120/230 V (50/60 Hz)

Miscellaneous

MTBF	237,310 hours
Compliant Standards	CISPR 22 Class A, GOST, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, CNS 13438(95) Class A, KN22 Class A, EN 55022 Class A

Software / System Requirements

Software Included

Cisco IOS IP Services

Dimensions & Weight

Width	17.5 in
Depth	17.7 in
Height	1.8 in
Weight	16.53 lbs

Manufacturer Warranty

Service & Support

Limited warranty – advance parts replacement – lifetime – response time: next business day – Technical support – consulting – 90 days

Environmental Parameters

Min Operating Temperature	23 Degree Fahrenheit
Max Operating Temperature	113 Degree Fahrenheit
Humidity Range Operating	10 – 95% (non-condensing)
Min Storage Temperature	-40 Degree Fahrenheit
Max Storage Temperature	158 Degree Fahrenheit
