Supported wireless LAN controllers	●  Cisco Catalyst 9800 Series Wireless Controllers
	●  Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities	●  2×2 MIMO with two spatial streams
	●  Maximal Ratio Combining (MRC)
	●  802.11n and 802.11a/g
	●  20- and 40-MHz channels
	●  PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
	●  Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
	●  802.11 Dynamic Frequency Selection (DFS)
	●  Cyclic Shift Diversity (CSD) support
802.11ac	●  2×2 downlink MU-MIMO with two spatial streams
	●  MRC
	●  802.11ac beamforming
	●  20-, 40-, 80- MHz channels
	●  PHY data rates up to 866.7 Mbps (80 MHz with 5GHz)
	●  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
	●  802.11 DFS
	●  CSD support
	●  WPA3 support
802.11ax	●  2×2 uplink/downlink MU-MIMO with two spatial streams
	●  Uplink/downlink OFDMA
	●  TWT
	●  BSS coloring
	●  MRC
	●  802.11ax beamforming
	●  20-, 40-, 80- channels
	●  PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz)
	●  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
	●  802.11 DFS
	●  CSD support
	●  WPA3 support
Integrated antenna	Catalyst 9105AXW
	●  2.4 GHz: Peak gain 3 dBi, internal antenna
	●  5 GHz: Peak gain 5 dBi, internal antenna
	Catalyst 9105AXI
	●  2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
	●  5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
Interfaces	Catalyst 9105AXW
	●  1x 100/1000/2500 Base-T (Ethernet) Uplink Interface
	●  3x 10/100/1000 Base-T (Ethernet) Downlink Interface (LAN1,LAN2 and LAN3, LAN1 supports 10.5W PSE Power Budget)
	●  Management console port (RJ-45)
	●  USB 2.0 at 4.5W
	●  Passthru Port
	Catalyst 9105AXI
	●  1x 10/100/1000 Base-T (Ethernet) Uplink Interface
	●  Management console port (RJ-45)
Indicators	●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions	●  Access point (without mounting brackets):
(W x L x H)
	◦    C9105AXW: 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm)
	◦    C9105AXI: 5.9 x 5.9 x 1.18 in. (150 x 150 x 30 mm)
Weight	Cisco Catalyst 9105AXW
	●  0.8 lb. (373.2g)
	Cisco Catalyst 9105AXI
	●  0.7 lb. (329.5g)
Input power requirements	●  802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE)
	●  Cisco power injector, AIR-PWRINJ6=
	●  802.3af PoE
	●  Cisco power injector, AIR-PWRINJ5= ( Note: This injector supports only 802.3af)
	Catalyst 9105AXI
	PoE power		2.4-GHz radio				5-GHz radio			Link speed
	802.3af (PoE)		2×2				2×2			1G
	Catalyst 9105AXW
	PoE power		2.4-GHz radio		5-GHz radio		Link speed	USB		LAN1 PSE
	802.3af (PoE)		2×2		2×2		2.5G mGig	Disabled		Disabled
	802.3at (PoE+)		2×2		2×2		2.5G mGig	Either USB or LAN1 PSE enabled.
Environmental	Cisco Catalyst 9105AXW
	●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
	●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m)
	●  Operating temperature: 32° to 122°F (0° to 50°C)
	●  Operating humidity: 10% to 90% (noncondensing)
	●  Operating altitude test: 40˚C, 9843 ft (3000 m)
	Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 2×2 to 1×1 on the 2.4 GHz radio and the USB interface and LAN1 PSE will be disabled.
	Cisco Catalyst 9105AXI
	●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
	●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m)
	●  Operating temperature: 32° to 122°F (0° to 50°C)
	●  Operating humidity: 10% to 90% (noncondensing)
	●  Operating altitude test: 40˚C, 9843 ft.(3000 m)
	Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 2×2 to 1×1 on the 2.4 GHz radio.
Available transmit power settings (Max/Min)	●  2.4 GHz					●  5 GHz
	◦    20 dBm (100 mW)					◦    20 dBm (100 mW)
	◦    -7 dBm (0.2 mW)					◦    -7 dBm (0.2 mW)

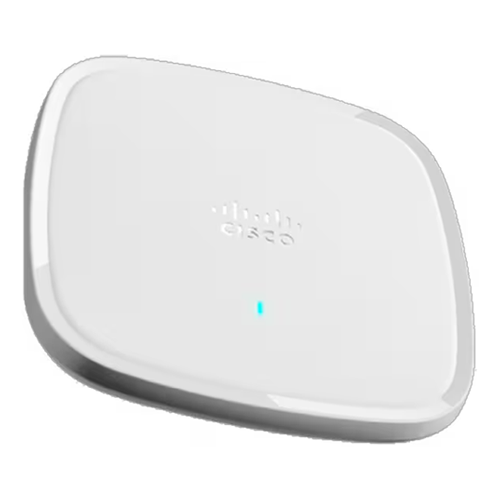

C9105AXI-EWC-B Cisco Catalyst 9105 Access Point with Embedded Wireless Controller

The Cisco Catalyst 9105 series is designed to bring enterprise-grade Wi-Fi 6 performance to small and medium deployments without adding complexity. The C9105AXI-EWC-B Cisco Catalyst 9105 Access Point with Embedded Wireless Controller is purpose-built for organizations that want secure, high-performance wireless with simplified deployment and management. With an embedded wireless controller (EWC), this access point removes the need for an external controller, making it ideal for branch offices, retail locations, clinics, and growing businesses.

Overview of the Cisco Catalyst 9105AXI-EWC-B

The C9105AXI-EWC-B combines Wi-Fi 6 (802.11ax) capabilities with Cisco’s proven Catalyst architecture. It supports high client density, improved throughput, and better performance in environments where multiple devices are connected simultaneously. The embedded wireless controller enables centralized configuration and policy enforcement directly from the access point, reducing infrastructure costs and deployment time.This model is optimized for internal antenna deployments, ensuring consistent coverage and reliable connectivity in indoor environments.

Key Benefits of the C9105AXI-EWC-B

Enterprise-Class Wi-Fi 6 Performance

Wi-Fi 6 technology improves efficiency, capacity, and performance compared to previous generations. The C9105AXI-EWC-B delivers higher data rates, lower latency, and better performance in dense client environments.

Embedded Wireless Controller for Simplified Management

The integrated EWC allows the access point to act as a controller for multiple APs, streamlining setup and ongoing operations. This makes the C9105AXI-EWC-B Installation Guide especially straightforward for IT teams with limited wireless infrastructure experience.

Advanced Security and Reliability

Built on Cisco Catalyst standards, this access point supports robust security features, consistent performance, and seamless integration with Cisco enterprise networks.

Flexible Deployment Options

Compact form factor and internal antennas make it suitable for offices, classrooms, retail floors, and healthcare environments.

Technical Specifications and Hardware Details

Wireless Standards and Performance

It supports 802.11ax (Wi-Fi 6) along with backward compatibility for older standards. It operates on both 2.4 GHz and 5 GHz bands, ensuring broad device compatibility and optimized spectrum usage.

Antenna and Radio Design

This model includes internal antennas designed for balanced indoor coverage. The radio architecture is optimized for stable performance and reduced interference.

Power and Connectivity

The access point supports Power over Ethernet (PoE), allowing for flexible installation without the need for separate power outlets. Standard Ethernet connectivity ensures seamless integration into existing network infrastructure.

Physical Specifications

Understanding the physical footprint is essential for planning deployments. The C9105AXI-EWC-B Datasheet provides full technical details, including form factor and mounting options.

C9105AXI-EWC-B Dimensions

The compact design allows for discreet ceiling or wall mounting. Its dimensions (5.9 x 5.9 x 1.18 inches) make it easy to install in space-constrained environments without impacting aesthetics.

C9105AXI-EWC-B Weight

The lightweight build simplifies installation and reduces strain on mounting hardware. Its weight (0.7 lbs) is optimized for standard enterprise mounting solutions.

Deployment and Installation Considerations

Simple Setup with Embedded Controller

Following the Installation Guide, administrators can quickly configure wireless networks without deploying a separate controller. This significantly reduces setup time and overall deployment cost.

Scalability for Growing Networks

As network demands increase, additional access points can be managed through the embedded controller, making the solution scalable without major architectural changes.

Ideal Use Cases for the C9105AXI-EWC-B

Small and Medium Businesses

Organizations seeking enterprise-grade Wi-Fi without enterprise-level complexity benefit greatly from this model.

Branch Offices and Remote Locations

The embedded controller design is ideal for distributed environments where centralized controllers may not be practical.

Education, Retail, and Healthcare

Reliable connectivity, strong security, and efficient client handling make it suitable for classrooms, stores, and clinics.

Frequently Asked Questions

What makes the C9105AXI-EWC-B different from standard access points? The key difference is the embedded wireless controller, which allows centralized management without requiring a separate hardware controller.Is the C9105AXI-EWC-B suitable for high-density environments? Yes, Wi-Fi 6 technology enables better performance and efficiency in environments with many connected devices.Where can I find detailed technical specifications? The official C9105AXI-EWC-B Datasheet includes all hardware, performance, and compliance details.How easy is it to install this access point? Installation is straightforward, especially when following the C9105AXI-EWC-B Installation Guide, which outlines mounting, power, and configuration steps.Does the size and weight affect mounting options? The compact form factor, standard dimensions (5.9 x 5.9 x 1.18 inches), and optimized weight (0.7 lbs) make it compatible with common ceiling and wall mounts.

Conclusion

The Cisco Catalyst 9105 Access Point with Embedded Wireless Controller is a powerful, cost-effective solution for organizations looking to deploy secure and scalable Wi-Fi 6 networks. With simplified management, enterprise-grade reliability, and a compact design, it delivers everything needed for modern wireless connectivity in a single, easy-to-deploy device.
