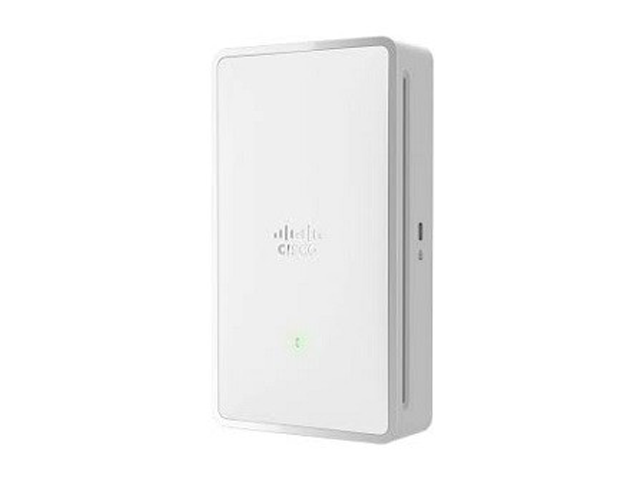

C9105AXW-B Cisco Catalyst 9105 Wall Plate with Internal Antennas

The C9105AXW-B Cisco Catalyst 9105 Wall Plate with Internal Antennas is purpose-built for modern indoor environments that demand reliable, high-performance Wi-Fi without visual clutter. Designed to mount directly over existing wall boxes, this compact access point blends seamlessly into hospitality rooms, dormitories, apartments, classrooms, and offices while delivering enterprise-grade Wi-Fi 6 connectivity.Built on Cisco’s Catalyst 9100 platform, it combines secure wireless access, simplified installation, and centralized management, making it an ideal choice for dense client environments where aesthetics and performance matter equally.

---

Designed for Discreet, High-Density Deployments

The wall-plate form factor of the C9105AXW-B allows it to replace traditional Ethernet wall outlets, eliminating the need for ceiling mounts or exposed cabling. With internal antennas optimized for room-level coverage, it provides consistent performance for guest rooms and individual workspaces.Key use cases include:

• Hotels and serviced apartments
• Student housing and dormitories
• Healthcare patient rooms
• Enterprise offices with private rooms
• Classrooms and training centers

This design ensures strong signal coverage exactly where users need it, without overshooting into adjacent rooms.

---

Wi-Fi 6 Performance with Cisco Reliability

The C9105AXW-B is powered by Wi-Fi 6 (802.11ax) technology. This enables higher throughput, lower latency, and improved efficiency in environments with multiple connected devices. Technologies such as OFDMA and MU-MIMO ensure smoother performance for smartphones, laptops, IoT devices, and collaboration tools.With dual-band operation, the access point intelligently balances traffic across 2.4 GHz and 5 GHz bands, improving user experience even during peak usage hours.

---

Simplified Deployment and Wall Plate Installation

One of the strongest advantages of this access point is its ease of deployment. The unit is designed to mount over a standard wall junction box. It can be powered via Power over Ethernet (PoE), reducing the need for additional electrical work.The C9105AXW-B Installation Guide typically highlights:

• Fast mounting over existing wall boxes
• Clean, low-profile installation
• PoE-powered operation for simplified cabling
• Integrated Ethernet ports for wired device connectivity

This streamlined approach helps IT teams scale deployments quickly while keeping installation costs under control.

---

Enterprise-Grade Security and Management

Security is a core strength of the Cisco Catalyst 9105 Wall Plate. It supports advanced encryption standards and integrates seamlessly into Cisco’s enterprise networking ecosystem.Key security and management features include:

• WPA3 support for enhanced wireless security
• Secure boot and trusted platform module (TPM)
• Centralized policy enforcement
• Compatibility with Cisco controller-based and cloud-managed architectures

These features ensure that guest and corporate traffic remain isolated and protected without sacrificing performance.

---

Key Technical Specifications

Below are the essential specifications commonly referenced in the C9105AXW-B Datasheet, making it easier for network planners and procurement teams to evaluate fit.Wireless Standards

• IEEE 802.11ax (Wi-Fi 6)
• Backward compatibility with 802.11a/b/g/n/ac

Radio Configuration

• Dual-band 2.4 GHz and 5 GHz
• Internal antennas optimized for wall-mounted coverage

Ports and Interfaces

• Uplink Ethernet port with PoE support
• Downlink Ethernet ports for wired devices such as IP phones or desktops

Power

• Powered via PoE for simplified installation

Physical Characteristics

• Compact wall-plate design
• Low-profile housing suitable for indoor use

For logistics and planning, the C9105AXW-B Weight (0.8 lbs) and C9105AXW-B Dimensions (3.54 x 6.3 x 1.3 inches) are optimized to fit standard wall boxes without additional brackets or structural modifications, making it ideal for retrofit projects.

---

Why Choose the C9105AXW-B Wall Plate Access Point

This model stands out for organizations seeking a balance between aesthetics, performance, and enterprise-grade control. Unlike traditional ceiling-mounted access points, it delivers targeted coverage per room, improves security segmentation, and maintains a clean visual footprint.Benefits include:

• Room-level Wi-Fi optimization
• Reduced interference between adjacent spaces
• Faster deployments in retrofit environments
• Cisco Catalyst reliability and long-term support

---

Frequently Asked Questions

What type of environments is the C9105AXW-B best suited for? It is ideal for hotels, dormitories, apartments, hospitals, and offices. It works best for individual room coverage and discreet installation.Does the C9105AXW-B support Wi-Fi 6 devices? Yes, it fully supports Wi-Fi 6 (802.11ax) while remaining compatible with older Wi-Fi standards.Is PoE required for the C9105AXW-B? CISCO has designed it to be powered via Power over Ethernet. This simplifies installation and reduces cabling complexity.Where can I find details like C9105AXW-B Weight and Dimensions? These details are typically listed in the official C9105AXW-B Datasheet and are optimized for standard wall-plate installations.Is the C9105AXW-B difficult to install? No, installation is straightforward. The C9105AXW-B Installation Guide outlines a simple process for mounting over existing wall boxes and connecting via PoE.

---

A Smart Choice for Modern Indoor Wireless Networks

The Cisco Catalyst 9105 Wall Plate with Internal Antennas delivers enterprise-class wireless performance in a compact, discreet design. With Wi-Fi 6 capabilities, simplified wall-mount installation, and robust Cisco security, it is an excellent solution for organizations looking to modernize indoor wireless access without compromising aesthetics or reliability.
