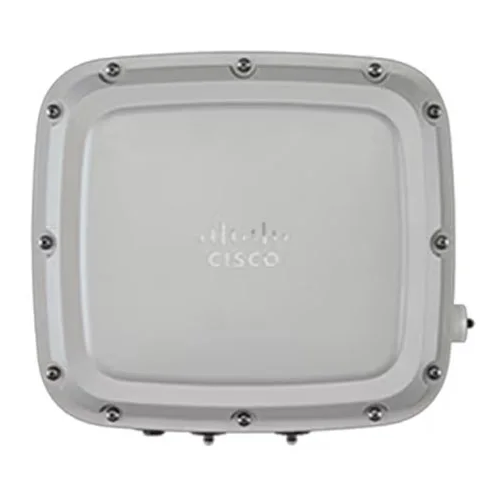

C9124AXE-B CISCO Catalyst 9124AX Series External Antenna Access Point

The C9124AXE-B is part of the Cisco Catalyst 9124AX Series, designed to deliver next-generation wireless performance for modern enterprise environments. Built on Wi-Fi 6 (802.11ax) technology, this access point with external antenna support is engineered for high-density deployments, challenging RF conditions, and mission-critical connectivity. The C9124AXE-B antenna design gives network architects greater flexibility in coverage planning, making it ideal for warehouses, large offices, campuses, healthcare facilities, and industrial spaces.With advanced RF intelligence, enterprise-grade security, and seamless integration into Cisco’s Catalyst ecosystem, it sets a new benchmark for scalable, reliable wireless networks.

---

Overview of the Cisco Catalyst 9124AXE Series

The Cisco Catalyst 9124AXE Series is purpose-built for organizations that demand consistent performance, low latency, and high throughput. The “E” in C9124AXE-B indicates support for external antennas, allowing customized antenna selection to match specific deployment requirements.The unit works seamlessly with Cisco controllers and cloud-managed architectures, including the embedded wireless controller option represented by C9124AXE-EWC-B, enabling simplified deployment and management without compromising on enterprise capabilities.

---

External Antenna Design for Flexible Coverage

One of the most important advantages of the C9124AXE-B antenna configuration is deployment flexibility. External antennas allow precise control over signal direction, gain, and polarization, which is essential in complex or non-traditional environments.Key benefits of the external antenna approach include:

• Optimized coverage in high-ceiling or open spaces
• Improved performance in areas with interference or obstructions
• Support for directional, omnidirectional, or specialty antennas
• Enhanced roaming and signal consistency

The unit’s Mounting bracket further simplifies installation, enabling secure wall or ceiling mounting while maintaining proper antenna orientation for optimal RF performance.

---

Wi-Fi 6 Performance and Capacity

The C9124AXE-B is built on Wi-Fi 6 (802.11ax), delivering higher efficiency, increased capacity, and better performance in dense client environments.Core performance highlights include:

• Dual-band operation (2.4 GHz and 5 GHz)
• 4×4 MU-MIMO with multiple spatial streams
• OFDMA for efficient spectrum utilization
• Target Wake Time (TWT) to improve battery life for connected devices
• Higher aggregate throughput compared to previous Wi-Fi generations

These features make the C9124AXE-B an excellent choice for environments with a high number of mobile devices, IoT endpoints, and bandwidth-intensive applications.

---

Enterprise-Grade Security and Reliability

Security is a foundational element of the Catalyst 9124AX platform. The C9124AXE-B integrates Cisco’s advanced security framework to protect users, devices, and data.Security and reliability features include:

• Secure boot and hardware-based trust
• WPA3 and advanced encryption standards
• Cisco CleanAir technology for interference detection
• Rogue access point and intrusion prevention
• Seamless integration with Cisco Identity Services

These capabilities ensure that the access point delivers not only performance but also resilience against evolving wireless threats.

---

Deployment, Mounting, and Management

The C9124AXE-B is designed for flexible deployment across a wide range of environments. The included and optional C9124AXE-B Mounting bracket supports multiple installation scenarios, helping ensure optimal placement and stability.Management options include:

• Centralized controller-based management
• Embedded Wireless Controller support with C9124AXE-EWC-B
• Scalable configuration for multi-site deployments
• Compatibility with Cisco DNA-based network architectures

This flexibility allows organizations to deploy the access point in standalone, controller-based, or cloud-assisted environments with ease.

---

Key Specifications

Important specifications of the C9124AXE-B include:

• Wireless standard: IEEE 802.11ax (Wi-Fi 6)
• Antenna type: External antenna support
• Frequency bands: 2.4 GHz and 5 GHz
• Spatial streams: Up to 4×4 MU-MIMO
• Ethernet interface: Multigigabit Ethernet support
• Power options: PoE+ / enterprise-grade power support
• Mounting: Wall and ceiling mounting with C9124AXE-B Mounting bracket

For complete technical details, organizations often refer to the official C9124AXE-B data sheet or the comprehensive C9124AXE datasheet during planning and procurement.

---

Model Variants and Compatibility

The Catalyst 9124AX family includes multiple variants to support different operational needs. Alongside the standard C9124AXE model, organizations may also consider:

• C9124AXE-EWC-B for deployments requiring an embedded wireless controller
• C9124AXE-B options for specific licensing or regional requirements

All variants share the same performance foundation, ensuring consistent user experience across the network.

---

Why Choose the C9124AXE-B?

The C9124AXE-B stands out for organizations that require:

• High-performance Wi-Fi 6 connectivity
• Flexible external antenna configurations
• Enterprise-level security and reliability
• Scalable management and future-ready design

Whether upgrading an existing wireless infrastructure or deploying a new network, the C9124AXE-B offers a powerful, adaptable solution aligned with modern enterprise demands.

---

Frequently Asked Questions

What is the main advantage of the C9124AXE-B antenna design? The external antenna design allows customized coverage using different antenna types, making it ideal for complex layouts and high-density environments.How is C9124AXE-B different from C9124AXE-EWC-B? The C9124AXE-EWC-B includes an embedded wireless controller, while the C9124AXE-B relies on external or centralized controller-based management.Is the C9124AXE-B suitable for industrial or warehouse environments? Yes, with the right external antennas and proper mounting, the C9124AXE-B performs exceptionally well in warehouses, factories, and large open spaces.Where can I find technical specifications for planning? Detailed specifications are available in the C9124AXE-B data sheet and the official C9124AXE datasheet, which outline performance, power, and deployment details.Does the C9124AXE-B support future network expansion? Absolutely. Built on Wi-Fi 6 and Cisco’s Catalyst architecture, the C9124AXE-B is designed to scale and adapt as network demands grow.
