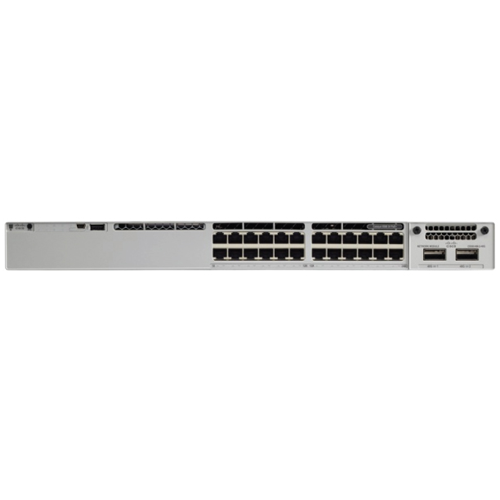

C9300-24P-E?CISCO Catalyst 24 Ports Managed UPOE Switch with Network Essentials

–Actual product may vary from the images–

C9300-24P-E

C9300-24P-E?CISCO Catalyst 24 Ports Managed UPOE Switch with Network Essentials

Product Info

Part#: C9300-24P-E
EAN: 889728 035774
Condition: New

Stock

5 units available
Request Bulk Discount
Free Ground Shipping – except Hawaii and Alaska
Price: $2,119.00

Availability: 5 in stock

  • Free Shipping across USA
  • Secure Payments via STRIPE
  • Bulk Discounts Available
  • Global Shipping on Buyer Account
  • Accurate Lead Times
  • Timely Delivery

For Questions

  • sales@d-ziner.com
  • 833-375-8324
  • Mon - Fri 9-5 EST
Lets Encrypt Logo
  • Buyer Data Security
DMCA Logo

Product Details

Main Specifications

Product DescriptionCisco Catalyst 9300 – Network Essentials – switch – 24 ports – managed – rack-mountable
Device TypeSwitch – 24 ports – L3 – managed – stackable
Enclosure TypeRack-mountable 1U
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)PoE+
PoE Budget445 W
PerformanceSwitching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
CapacityIPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
FeaturesTrunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
PowerAC 120/230 V (50 – 60 Hz)
Power RedundancyOptional
Dimensions (WxDxH)17.5 in x 17.5 in x 1.7 in
Weight16.31 lbs
System RequirementsCisco IOS Universal
Manufacturer WarrantyLimited lifetime warranty



Extended Specifications

General
Device TypeSwitch – 24 ports – L3 – managed – stackable
Enclosure TypeRack-mountable 1U
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)PoE+
PoE Budget445 W
PerformanceSwitching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
CapacityIPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm128-bit AES
FeaturesTrunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM8 GB
Flash Memory16 GB
Status IndicatorsStatus
Expansion / Connectivity
Interfaces48 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB 2.0
Expansion Slots1 (total) / 1 (free) x expansion slot
Power
Power DeviceInternal power supply – hot-plug
Installed Qty1
Max Supported Qty2
Power RedundancyOptional
Power Provided715 Watt
Voltage RequiredAC 120/230 V (50 – 60 Hz)
Miscellaneous
MTBF299,000 hours
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
OS RequiredCisco IOS Universal
Dimensions & Weight
Width17.5 in
Depth17.5 in
Height1.7 in
Weight16.31 lbs
Manufacturer Warranty
Service & SupportLimited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days
Environmental Parameters
Min Operating Temperature23 Degrees Fahrenheit
Max Operating Temperature113 Degrees Fahrenheit
Humidity Range Operating5 – 90% (non-condensing)
Min Storage Temperature-40 Degrees Fahrenheit
Max Storage Temperature158 Degrees Fahrenheit
Humidity Range Storage5 – 90% (non-condensing)
Weight and dimensions for C9300-24P-E?
Weight18 lbs
Dimensions18 × 18 × 2 in
SKU

C9300-24P-E

Condition

New

Brand

CISCO

GTIN

889728 035774

Warranty for C9300-24P-E?
  • The warranty for refurbished units is 30 days.
  • The warranty for New units is as per the manufacturer’s terms and conditions.
SKU: C9300-24P-E Categories: , , , Tags: , , , , Brand:
