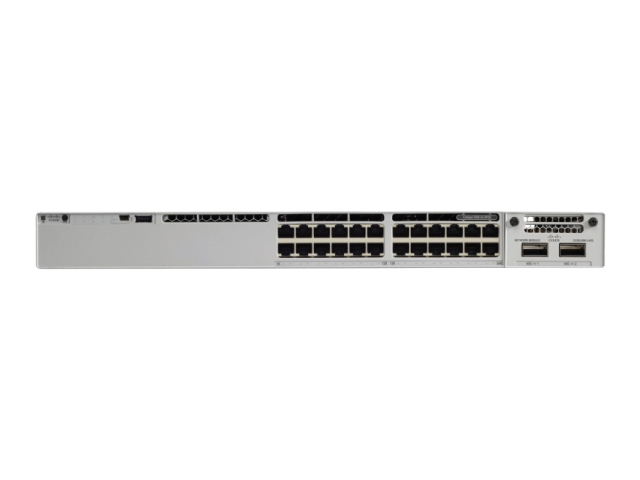

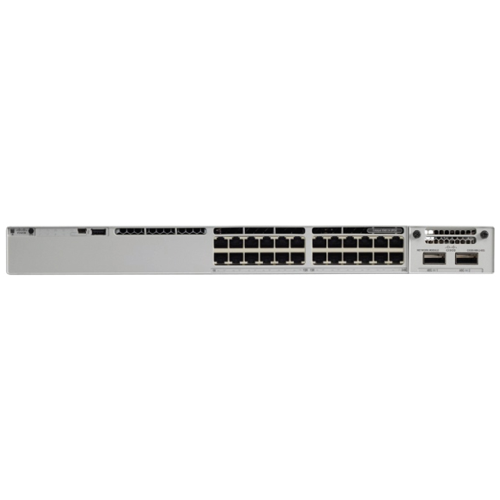

| Product Description | Cisco Catalyst 9300 – Network Advantage – switch – 24 ports – managed – rack-mountable | | Device Type | Switch – 24 ports – L3 – managed – stackable | | Enclosure Type | Rack-mountable 1U | | Subtype | 10 Gigabit Ethernet | | Ports | 24 x 100/1000/2.5G/5G/10GBase-T (UPOE) | | Power Over Ethernet (PoE) | UPOE | | PoE Budget | 830 W | | Performance | Switching capacity: 640 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 400 Mpps | | Capacity | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 128000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 | | MAC Address Table Size | 32000 entries | | Jumbo Frame Support | 9198 bytes | | Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng | | Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF | | Features | Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, FTP client, 3 fans, Control plane protection (CoPP), 32MB packet buffer, Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at | | Power | AC 120/230 V (50 – 60 Hz) | | Power Redundancy | Optional | | Dimensions (WxDxH) | 17.5 in x 20.2 in x 1.7 in | | Weight | 18.19 lbs | | System Requirements | Cisco IOS Universal | | Manufacturer Warranty | Limited lifetime warranty |
|
