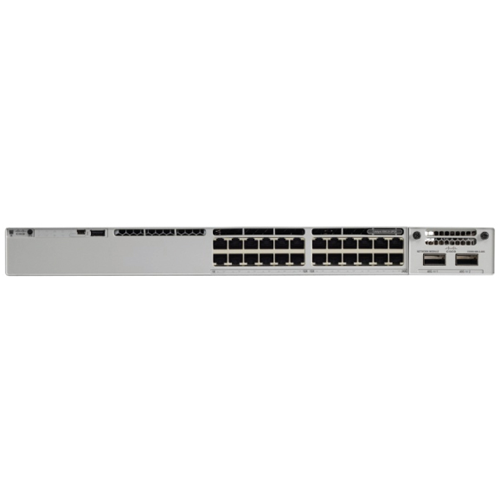

C9300-24UX-E

Actual product may vary from the images

C9300-24UX-E New Cisco Catalyst 24 ports Managed Switch with Network Essentials

MPN: C9300-24UX-E | UPC: 0 889728035606 | CONDITION: New

Price with FREE GROUND SHIPPING for USA

$5,981.00

Availability: 3 in stock

Our Trusted Shipping Partners

Standard shipping time is 5-7 Business Days

Secure Payments

Payments processed through STRIPE

Major Credit Cards Accepted

Free Ground Shipping in USA

Secure Payments

Safe Checkout

Main Specifications

Product DescriptionCisco Catalyst 9300 – Network Essentials – switch – 24 ports – managed – rack-mountable
Device TypeSwitch – 24 ports – managed – stackable
Enclosure TypeRack-mountable 1U
Subtype10 Gigabit Ethernet
Ports24 x 100/1000/2500/5000/10000 (UPOE)
Power Over Ethernet (PoE)UPOE
PoE Budget560 W
PerformanceStacking bandwidth: 480 Gbps ¦ Forwarding rate: 400 Mpps
CapacityIPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
FeaturesTrunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
PowerAC 120/230 V (50 – 60 Hz)
Power RedundancyOptional
Dimensions (WxDxH)18.5 in x 17.5 in x 1.7 in
Weight18.19 lbs
System RequirementsCisco IOS Universal
Manufacturer WarrantyLimited lifetime warranty



Extended Specifications

General
Device TypeSwitch – 24 ports – managed – stackable
Enclosure TypeRack-mountable 1U
Subtype10 Gigabit Ethernet
Ports24 x 100/1000/2500/5000/10000 (UPOE)
Power Over Ethernet (PoE)UPOE
PoE Budget560 W
PerformanceStacking bandwidth: 480 Gbps ¦ Forwarding rate: 400 Mpps
CapacityIPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm128-bit AES
FeaturesTrunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM8 GB
Flash Memory16 GB
Status IndicatorsStatus
Expansion / Connectivity
Interfaces48 x 10GBase-T RJ-45 UPOE ¦ 1 x USB 2.0
Expansion Slots1 (total) / 1 (free) x expansion slot
Power
Power DeviceInternal power supply – hot-plug
Installed Qty1
Max Supported Qty2
Power RedundancyOptional
Power Provided1100 Watt
Voltage RequiredAC 120/230 V (50 – 60 Hz)
Miscellaneous
MTBF214,760 hours
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
OS RequiredCisco IOS Universal
Dimensions & Weight
Width18.5 in
Depth17.5 in
Height1.7 in
Weight18.19 lbs
Manufacturer Warranty
Service & SupportLimited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days
Environmental Parameters
Min Operating Temperature23 Degree Fahrenheit
Max Operating Temperature113 Degree Fahrenheit
Humidity Range Operating5 – 90% (non-condensing)
Min Storage Temperature-40 Degree Fahrenheit
Max Storage Temperature158 Degree Fahrenheit
Humidity Range Storage5 – 90% (non-condensing)
Weight and dimensions for C9300-24UX-E?
Weight18 lbs
Dimensions18 × 18 × 2 in
SKU

C9300-24UX-E

Condition

New

Brand

CISCO

GTIN

0 889728035606

Warranty for C9300-24UX-E?
  • The warranty for refurbished units is 30 days.
  • The warranty for New units is as per the manufacturer’s terms and conditions.
