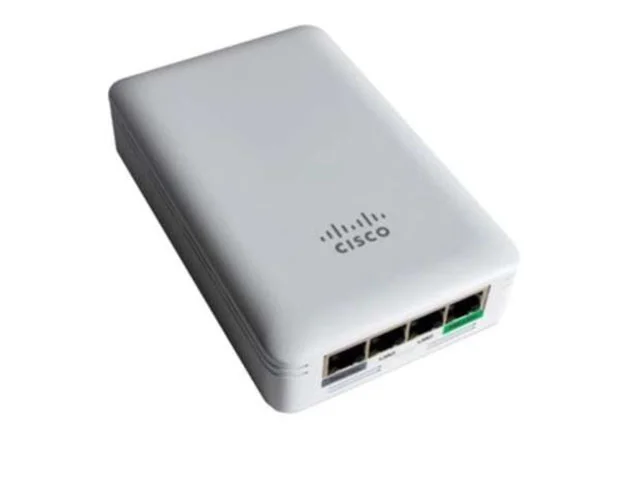

CBW145AC-B CISCO CBW145AC 802.11ac 2×2 Wave 2 Access Point Wall Plate

The CBW145AC-B Cisco CBW145AC 802.11ac 2×2 Wave 2 Access Point Wall Plate is a compact, enterprise-grade wireless solution designed for small businesses, hospitality environments, classrooms, and branch offices. Furthermore, it is built as part of the Cisco Business Wireless portfolio, this wall-plate access point delivers reliable Wi-Fi performance, simplified deployment, and professional-grade security in a discreet form factor that blends seamlessly into modern interiors.

Designed to mount directly onto a standard wall junction box, the CBW145AC-B provides high-speed wireless connectivity while also offering wired Ethernet access for nearby devices such as IP phones, smart TVs, or point-of-sale systems.

Overview of the Cisco CBW145AC Wall Plate Access Point

The Cisco CBW145AC series is engineered to address the growing demand for high-performance wireless connectivity in space-constrained environments. The CBW145AC-B model supports 802.11ac Wave 2 technology with a 2×2 MIMO configuration, ensuring strong throughput, improved client capacity, and stable connections across multiple devices.

This access point operates without the need for a separate wireless controller. Instead, it uses Cisco’s embedded management capabilities, allowing IT teams and small business owners to deploy and manage networks efficiently with minimal complexity.

Key Benefits of CBW145AC-B

Discreet wall-plate design ideal for hotels, offices, and residential-style deployments
802.11ac Wave 2 performance with 2×2 MU-MIMO
Integrated Ethernet ports for wired device connectivity
Controller-less architecture for simplified setup and management
Enterprise-grade Cisco security and reliability

Performance and Wireless Capabilities

The CBW145AC-B delivers dual-band wireless connectivity, supporting both 2.4 GHz and 5 GHz frequencies. This ensures compatibility with legacy devices while maximizing performance for modern Wi-Fi clients.

With 2×2 spatial streams and Wave 2 MU-MIMO support, the access point efficiently serves multiple users simultaneously, reducing congestion and improving overall network efficiency. This makes it well-suited for environments with moderate to high client density.

Wireless Standards and Throughput

802.11a/b/g/n/ac compliant
802.11ac Wave 2 with MU-MIMO
Up to 867 Mbps on the 5 GHz band
Up to 300 Mbps on the 2.4 GHz band

Wall Plate Design and Ethernet Connectivity

One of the standout features of the CBW145AC-B is its wall-plate form factor. It replaces a traditional Ethernet wall outlet, making it an excellent choice for hotel rooms, dormitories, and office cubicles where ceiling-mounted access points may not be practical.

The unit includes multiple downlink Ethernet ports, allowing nearby wired devices to connect directly through the access point. This eliminates the need for additional switches or cabling at the edge.

Physical and Interface Features

Standard wall junction box mounting
Compact and low-profile design
Multiple Gigabit Ethernet ports for local devices
Power over Ethernet (PoE) support

Security and Network Management

Cisco has built the CBW145AC series with security and ease of management at its core. The CBW145AC-B supports robust wireless security protocols to protect sensitive business data and user traffic.

Management is handled through an intuitive web interface or mobile application, making it accessible even for teams without dedicated IT staff. Advanced users can still take advantage of Cisco-grade configuration options for VLANs, guest access, and traffic segmentation.

Security Features

WPA2 and WPA3 security support
Secure guest access with captive portal options
Integrated firewall and traffic controls
Automatic firmware updates for enhanced protection

CBW145AC Variants and Regional Models

Cisco offers several regional variants of the CBW145AC wall-plate access point to meet regulatory requirements across different countries and markets. While performance and core features remain consistent, the model numbers indicate regional certifications.

The CBW145AC-B is commonly used in regions that follow specific regulatory standards. Other variants include CBW145AC-G, CBW145AC-A, and CBW145AC-A-CA. When selecting a model, it is important to ensure compliance with local wireless regulations.

Common CBW145AC Model Variants

CBW145AC-B for specific international markets
CBW145AC-G for select global regions
CBW145AC-A designed for the Americas
CBW145AC-A-CA certified for Canada

Technical Specifications at a Glance

Wireless standard: 802.11ac Wave 2
MIMO configuration: 2×2 MU-MIMO
Frequency bands: Dual-band 2.4 GHz and 5 GHz
Maximum throughput: Up to 1.2 Gbps aggregate
Ethernet ports: Multiple Gigabit Ethernet downlinks
Power: Power over Ethernet (PoE)
Mounting: Wall plate junction box
Management: Embedded controller, web-based management

Deployment and Installation Simplicity

Deploying the CBW145AC-B is straightforward, even for non-specialists. Once powered via PoE, the device can be discovered automatically and configured within minutes. The CBW145AC-B manual provides clear guidance on mounting, network setup, and best practices for optimal wireless coverage.

This ease of installation makes the CBW145AC-B especially attractive for multi-room deployments. As a result it offers consistency, speed, and minimal disruption as essentials.

Frequently Asked Questions

What is the CBW145AC-B used for?
The CBW145AC-B is designed for wall-mounted wireless deployments in environments such as hotels, offices, dormitories, and small businesses where discreet, high-performance Wi-Fi is required.

Does the CBW145AC-B require a wireless controller?
No, the CBW145AC-B operates with an embedded controller, eliminating the need for a separate hardware controller and simplifying network management.

What is the difference between CBW145AC-B and CBW145AC-G?
The primary difference lies in regional regulatory compliance. Performance and features are largely the same, but each model is certified for use in specific geographic regions.

Where can I find setup instructions for this access point?
Detailed installation and configuration steps are provided in the CBW145AC-B manual, which covers physical mounting, PoE requirements, and network configuration.

Is CBW145AC-A-CA different from CBW145AC-A?
Yes, CBW145AC-A-CA is a variant certified specifically for use in Canada, while CBW145AC-A is intended for broader use in the Americas, with similar technical capabilities.

Conclusion

The CBW145AC-B Cisco CBW145AC 802.11ac 2×2 Wave 2 Access Point Wall Plate is a powerful yet compact wireless solution that combines enterprise-grade performance with elegant design. Moreover, with its wall-plate form factor, integrated Ethernet ports, and simplified management, it is an ideal choice for businesses seeking reliable, scalable, and professional Wi-Fi connectivity without complexity.
