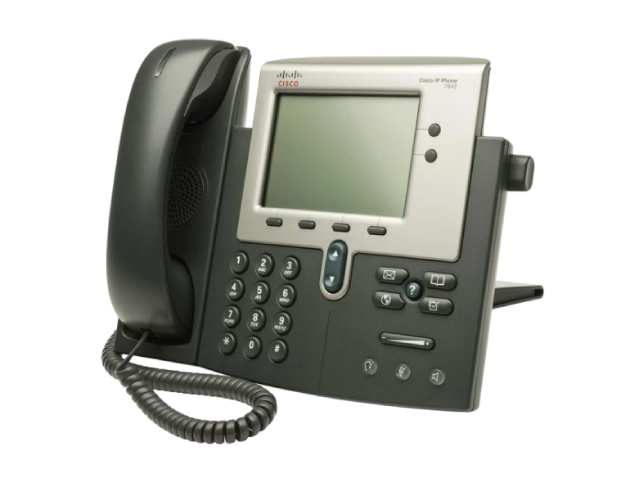

CISCO Unified IP Phone 7942G – VoIP phone – SCCP, SIP – silver, dark gray

Cisco Unified IP Phone 7942G – VoIP phone – SCCP, SIP – silver, dark gray

The Cisco Unified IP Phone 7942G is a full-featured IP phone with speakerphone and handset designed for wideband audio. It is intended to meet the needs of transaction-type workers with significant phone traffic. It has two programmable backlit line/feature buttons and four interactive soft keys that guide you through all call features and functions. The phone has a large, 4-bit grayscale graphical LCD that provides features such as date and time, calling party name, calling party number, digits dialed, and presence information. The crisp graphic capability of the display allows for the inclusion of higher value, more visibly rich Extensible Markup Language (XML) applications, and support for localization requiring double-byte Unicode encoding for fonts. A hands-free speakerphone and handset designed for hi-fidelity wideband audio are standard on the Cisco Unified IP Phone 7942G, as is a built-in headset connection and an integrated Ethernet switch.

Main Specifications

Product Description Cisco Unified IP Phone 7942G – VoIP phone Product Type VoIP phone Main Features Multiple VoIP protocol support, integrated Ethernet switch VoIP Protocols SCCP, SIP Voice Codecs G.722, G.729a, G.729ab, G.711u, G.711a, iLBC Speakerphone Yes (digital duplex) Caller ID Yes Voice Mail Capability Yes Call Services Voice Mail, Caller ID, Call Forwarding, Call Transfer, Call Hold Display LCD display – monochrome Network Ports Qty 2 x Ethernet 10Base-T/100Base-TX Body Color Silver, dark gray Pricing Type Refurbished

Extended Specifications

General

Product Type VoIP phone Body Color Silver, dark gray Body Material ABS plastic

Phone Features

Call Services Voice Mail, Caller ID, Call Forwarding, Call Transfer, Call Hold Dialer Type Keypad Dialer Location Base Conference Call Capability Yes Speakerphone Yes (digital duplex) Menu Operation Yes Function Buttons Speakerphone button, directory button, navigator key, headset button, mute button Volume Control Yes Ringer Control Yes Firmware Upgradable Yes Additional Functions Web browser Additional Features On-hook dialing

IP Telephony

Main Features Multiple VoIP protocol support, integrated Ethernet switch VoIP Yes VoIP Protocols SCCP, SIP Voice Codecs G.722, G.729a, G.729ab, G.711u, G.711a, iLBC Quality of Service IEEE 802.1Q (VLAN), IEEE 802.1p IP Address Assignment DHCP, static Security 128-bit AES Power Over Ethernet (PoE) Support Yes Network Protocols TFTP Network Ports Qty 2 x Ethernet 10Base-T/100Base-TX Voice Features Echo cancellation (ECN) Network Features Class 3 PoE

Display

Type LCD display – monochrome Display Location Base Diagonal Size 5″ Display Resolution 320 x 222 pixels Display Information Date, time

Miscellaneous

Connections Headset jack Hearing Aid Compatible Yes Placing / Mounting Wall-mountable, table-top Pricing Type Refurbished

Dimensions & Weight (Base)

Width 10.5 in Depth 6 in Height 8 in Weight 3.5 lbs
