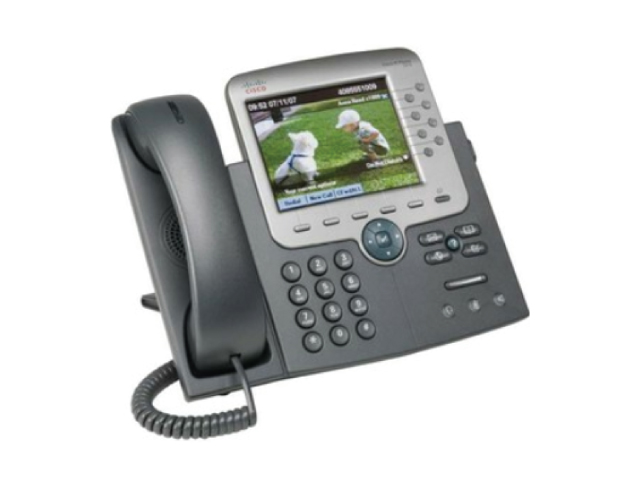

CISCO Unified IP Phone 7975G – VoIP phone – SCCP, SIP – 8-line operation – silver, dark gray

Cisco Unified IP Phone 7975G – VoIP phone – SCCP, SIP – 8-line operation – silver, dark gray

The Cisco Unified IP Phone 7975G demonstrates the latest advances in VoIP telephony, including wideband audio support, backlit color touchscreen display, and an integrated Gigabit Ethernet port. It addresses the needs of the executive or major decision maker, administrative assistants, and those working with bandwidth-intensive applications on co-located PCs. This IP phone includes a large, backlit, easy-to-read color display for easy access to communication information, timesaving applications, and features such as date and time, calling party name, calling party number, digits dialed, and presence information. It also accommodates Extensible Markup Language (XML) applications that take advantage of the display. The phone provides direct access to eight telephone lines (or combination of lines, speed dials, and direct access to telephony features), five interactive soft keys that guide you through call features and functions, and an intuitive four-way (plus Select key) navigation cluster. A hands-free speakerphone and handset designed for high-fidelity wideband audio are standard, as is a built-in headset connection.

Main Specifications

Product Description Cisco Unified IP Phone 7975G – VoIP phone Product Type VoIP phone Main Features Multiple VoIP protocol support, integrated Ethernet switch VoIP Protocols SCCP, SIP Voice Codecs G.722, G.729a, G.729ab, G.711u, G.711a, iLBC Multiline Operation Capability 8-line operation Speakerphone Yes (digital duplex) Voice Mail Capability Yes Call Services Voice Mail Display LCD display – color – Yes Display Features Wallpaper Network Ports Qty 2 x Ethernet 10Base-T/100Base-TX/1000Base-T Body Color Silver, dark gray

Extended Specifications

General

Product Type VoIP phone Body Color Silver, dark gray Body Material ABS plastic

Phone Features

Call Services Voice Mail Dialer Type Keypad Dialer Location Base Multiline Operation Capability 8-line operation Conference Call Capability Yes Speakerphone Yes (digital duplex) Menu Operation Yes Function Buttons Speakerphone button, headset button, menu navigation keys, mute button Programmable Buttons Qty 8 Volume Control Yes Ringer Control Yes Ring Tones 24 Firmware Upgradable Yes Additional Functions Web browser

IP Telephony

Main Features Multiple VoIP protocol support, integrated Ethernet switch VoIP Yes VoIP Protocols SCCP, SIP Voice Codecs G.722, G.729a, G.729ab, G.711u, G.711a, iLBC Quality of Service IEEE 802.1Q (VLAN), IEEE 802.1p IP Address Assignment DHCP, static Security 128-bit AES Power Over Ethernet (PoE) Support Yes Network Protocols TFTP Network Ports Qty 2 x Ethernet 10Base-T/100Base-TX/1000Base-T Voice Features Echo cancellation (ECN) Network Features Class 3 PoE

Display

Type LCD display – color Display Location Base Diagonal Size 5.6″ Display Resolution 320 x 240 pixels Color Depth 16-bit (65000 colors) Display Information Date, time Backlit Yes Features Wallpaper

Miscellaneous

Connections Headset jack Hearing Aid Compatible Yes Placing / Mounting Wall-mountable, table-top

Dimensions & Weight (Base)

Width 10.5 in Depth 6 in Height 8 in Weight 3.5 lbs
