Introduction

In the world of networking, speed and reliability are paramount. One technology that has been making waves in this field is the CPAK-100G-LR4 Cisco 100GBase-LR4 CPAK Transceiver Module. Offering an impressive 100Gbps over Single-Mode Fiber (SMF), this module is changing the game. In this comprehensive article, we will delve into the details of this revolutionary technology, covering everything from its features and benefits to installation and FAQs.

The Power of CPAK-100G-LR4 Cisco 100GBase-LR4 CPAK Transceiver Module

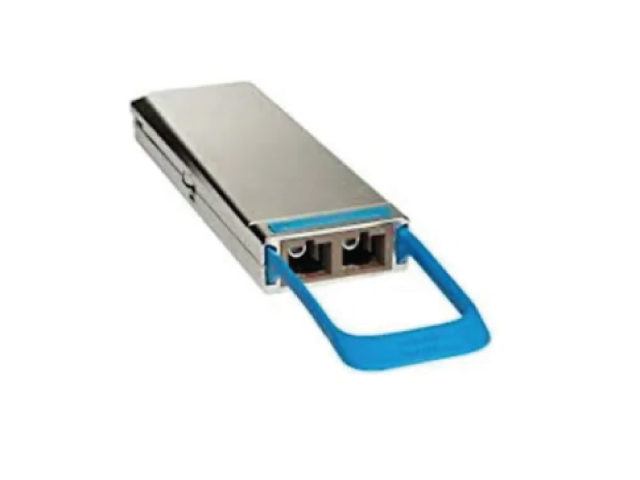

The primary function of the Cisco CPAK-100G-LR4 and CPAK-100GE-LR4 modules is to enable 100Gbps optical connections over conventional Single-Mode Fiber (SMF, G.652) terminated with either SC connectors (as shown in Figure 1) or LC connectors (as depicted in Figure 2). It’s worth noting that the LC-SC adapter on the CPAK-100G-LR4 can be removed if you prefer LC connectors over the default SC connectors; however, SC connectors are the officially recommended and supported connector type.

The LR4 module complies with IEEE 802.3ba standards and is capable of supporting link distances of up to 10 kilometers over standard SMF, G.652. It accomplishes this by transmitting an aggregate data signal of 100 Gbps, which is distributed across four LAN Wavelength-Division Multiplexing (WDM) wavelengths, each operating at a nominal rate of 25 Gbps per lane. Within the module, the optical multiplexing and demultiplexing of these four wavelengths are efficiently managed.

Let’s explore its capabilities:

1. Lightning-Fast Speed

With a blazing speed of 100Gbps, the CPAK-100G-LR4 Cisco 100GBase-LR4 CPAK Transceiver Module ensures that data transmission happens at lightning speed. Whether you’re running a data center or managing a large-scale network, this module’s speed will leave you amazed.

2. Long-Distance Connectivity

One of the standout features of this module is its ability to transmit data over Single-Mode Fiber (SMF). This means that it can maintain high-speed connectivity over long distances, making it ideal for large-scale networks spanning across buildings or even cities.

3. Reliability Redefined

In the world of networking, reliability is non-negotiable. The CPAK-100G-LR4 Cisco 100GBase-LR4 CPAK Transceiver Module boasts exceptional reliability, ensuring that your network stays up and running without interruptions.

Installation Made Easy

Installing the CPAK-100G-LR4 Cisco 100GBase-LR4 CPAK Transceiver Module is a straightforward process. Here’s a step-by-step guide:

1. Equipment Preparation

Before you begin, ensure that you have the necessary tools and safety equipment. You’ll need the CPAK-100G-LR4 module, compatible hardware, and protective gear.

2. Module Insertion

Carefully insert the CPAK-100G-LR4 module into the designated slot on your networking equipment. Ensure it is securely connected.

3. Configuration

Follow the manufacturer’s instructions to configure the module settings. This may involve setting up parameters such as transmission speed and power levels.

4. Testing

After configuration, run a series of tests to ensure that the CPAK-100G-LR4 module is functioning optimally. This includes checking for data transmission speed and signal strength.

FAQs

What is the maximum distance the CPAK-100G-LR4 Cisco 100GBase-LR4 CPAK Transceiver Module can cover over SMF?

The CPAK-100G-LR4 module can transmit data over Single-Mode Fiber for distances of up to 10 kilometers, making it suitable for long-range network connections.

Is the CPAK-100G-LR4 module compatible with all networking equipment?

Compatibility may vary depending on your networking equipment. It’s essential to check the compatibility list provided by Cisco or your equipment manufacturer before purchasing the module.

How does the CPAK-100G-LR4 module ensure reliability?

The CPAK-100G-LR4 module is designed with redundancy and error correction features, ensuring high reliability and minimal downtime in network operations.

Can I upgrade my existing network to use CPAK-100G-LR4 modules?

Yes, in most cases, you can upgrade your network to utilize CPAK-100G-LR4 modules. However, it’s advisable to consult with a networking expert to ensure a smooth transition.

Are there any special maintenance requirements for the CPAK-100G-LR4 module?

Regular cleaning and inspection of connectors are recommended to maintain optimal performance. Cisco provides guidelines for proper module maintenance.

Conclusion

The CPAK-100G-LR4 Cisco 100GBase-LR4 CPAK Transceiver Module is a game-changer in the networking world, offering lightning-fast speed, long-distance connectivity, and unmatched reliability. Whether you’re upgrading an existing network or setting up a new one, this module is worth considering. Invest in the future of networking with the CPAK-100G-LR4 module.
