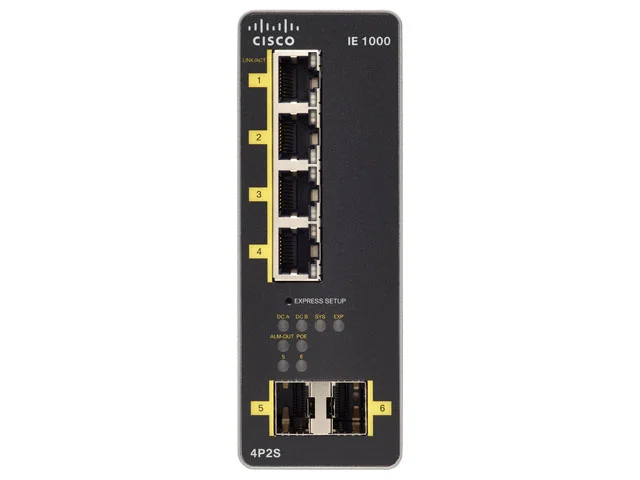

Overview of the IE-1000-4P2S-LM Industrial Ethernet Switch

The IE-1000-4P2S-LM is part of the Cisco IE-1000 Series, a line of lightly managed industrial Ethernet switches designed for reliability, simplicity, and efficiency in industrial network environments. Built to operate in harsh conditions, this switch provides both power over Ethernet (PoE/PoE+) and gigabit connectivity for critical devices such as IP cameras, access points, and industrial controllers. Its compact design, high-temperature tolerance, and robust power input options make it ideal for manufacturing plants, transportation systems, and other industrial applications.

Key Features and Benefits

The IE-1000-4P2S-LM offers a combination of lightweight management features and industrial-grade reliability. Some of the key benefits include:

• Compact and Rugged Design: IP30-rated metal housing ensures protection against dust and physical impacts while maintaining a compact footprint suitable for tight spaces.
• High Power PoE Support: Four 10/100Base-TX RJ45 ports support PoE/PoE+ to power connected devices without additional cabling.
• Flexible Connectivity: Two gigabit SFP ports allow for fiber connections, providing extended reach and network redundancy.
• Wide Operating Temperature Range: Designed to operate between -40°C and +70°C, making it suitable for extreme industrial environments.
• Easy Deployment: Lightweight management features enable basic configuration and monitoring without complex setup procedures.

Technical Specifications of IE-1000-4P2S-LM

Understanding the technical specifications helps ensure compatibility with your industrial network:

• Switching Capacity: Supports sufficient throughput for industrial Ethernet applications.
• RJ45 Ports: 4 x 10/100Base-TX ports with PoE/PoE+ capabilities.
• SFP Ports: 2 x Gigabit SFP slots for fiber connectivity.
• PoE/PoE+ Power Budget: Supports up to 60W total PoE power allocation across all ports.
• Power Input: 48–54VDC, providing flexible industrial power options.
• Operating Temperature: -40°C to +70°C for extreme environmental tolerance.
• Enclosure Rating: IP30 metal housing protects against dust and mechanical impacts.
• Mounting Options: DIN rail and panel mounting supported for versatile deployment.
• Management: Lightly managed via web GUI or SNMP for basic configuration and monitoring.

Applications of IE-1000-4P2S-LM in Industrial Environments

The IE-1000-4P2S-LM is particularly suited for industrial scenarios where reliability and PoE functionality are critical:

• Industrial Automation: Power sensors, actuators, and controllers directly from the switch.
• Transportation Systems: Ideal for railways, buses, and traffic control networks requiring ruggedized devices.
• Security and Surveillance: Supports IP cameras with PoE/PoE+ power, ensuring uninterrupted monitoring.
• Energy and Utilities: Provides dependable networking in substations and energy distribution systems.
• Factory and Plant Networks: Connects machinery and industrial devices with minimal downtime risk.

Why Choose the IE-1000 Series Lightly Managed Switch

The Cisco IE-1000 Series bridges the gap between unmanaged and fully managed industrial switches. With lightly managed features, network administrators can perform essential tasks such as VLAN setup, QoS configuration, and network monitoring without the complexity of full enterprise management. Its industrial-grade design ensures the switch can withstand vibration, temperature extremes, and electrical interference commonly found in industrial settings.

FAQs about the IE-1000-4P2S-LM Industrial Ethernet Switch

1. What is the maximum PoE power supported by the IE-1000-4P2S-LM?
   The switch supports up to 60W total PoE/PoE+ power across all four RJ45 ports.
2. Can this switch operate in outdoor environments?
   While the switch is ruggedized and IP30-rated, it is designed for indoor industrial enclosures. Outdoor deployment requires additional protective enclosures.
3. What types of SFP modules are compatible with the two SFP ports?
   Standard 1G SFP fiber modules for multimode or single-mode connections can be used depending on network requirements.
4. Does the switch support VLAN and QoS configurations?
   Yes, it provides lightweight management features including VLAN segmentation and basic QoS for traffic prioritization.
5. What are the mounting options for this switch?
   The IE-1000-4P2S-LM supports DIN rail and panel mounting, making it versatile for various industrial setups.

For more information you can view the datasheets for CISCO IE1000 here.
