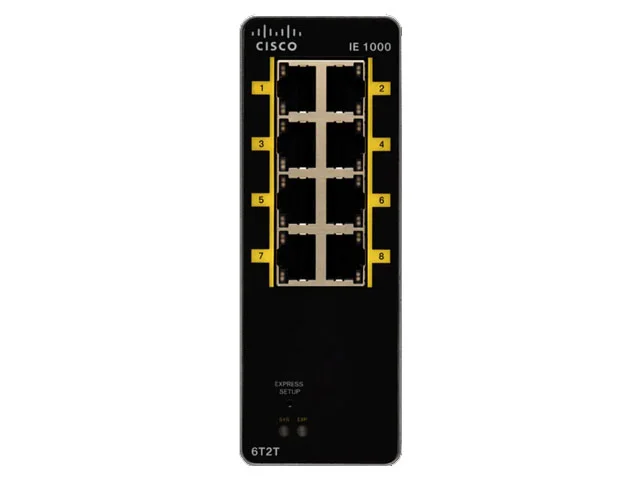

Cisco IE-1000-6T2T-LM Industrial Ethernet Switch Overview

The Cisco IE-1000-6T2T-LM is part of the IE-1000 Series of lightly managed industrial Ethernet switches, designed for reliable and efficient connectivity in industrial environments. With its robust design, compact size, and flexible power options, it is ideal for applications in manufacturing, transportation, energy, and other mission-critical industrial networks.

This switch offers 8 x 10/100Base-TX RJ45 ports, combining 6 standard Ethernet ports with 2 high-speed uplink ports. It provides basic Layer 2 management features, allowing for easy configuration, network segmentation, and enhanced reliability, making it a versatile solution for small to medium industrial networks.

Key Features of Cisco IE-1000-6T2T-LM

The IE-1000-6T2T-LM switch is engineered to handle industrial conditions. The engineers have built it with a rugged design and extended temperature support. Key features include:

• 8 x 10/100Base-TX RJ45 ports for versatile connectivity.
• 12–24VDC power input for flexible installation in various environments.
• IP30 rated metal housing for protection against dust and mechanical impacts.
• Operating temperature range from -20°C to +70°C, suitable for harsh industrial conditions.
• Lightly managed capabilities for basic VLAN configuration, port monitoring, and QoS settings.
• Compact size for space-constrained environments.

Performance and Reliability

The Cisco IE-1000-6T2T-LM delivers reliable performance in industrial applications. It supports essential Layer 2 switching features, including MAC address learning, broadcast storm control, and link fault signaling. These features ensure stable network performance even in challenging industrial conditions.

The switch also provides fast recovery in case of link failure, enhancing network uptime. Its lightweight management options simplify network administration without the complexity of fully managed switches, making it an excellent choice for operators who need efficiency with minimal configuration.

Industrial Design and Durability

Built to withstand industrial environments, the IE-1000-6T2T-LM features an IP30-rated metal enclosure that protects against dust and accidental contact. The extended operating temperature range from -20°C to +70°C ensures reliable performance even in extreme heat or cold. Its vibration and shock tolerance make it suitable for installation in manufacturing floors, transportation vehicles, and outdoor industrial sites.

The compact form factor of the switch allows for easy deployment in control cabinets or tight spaces, while its DIN rail mounting support ensures secure and flexible installation.

Applications of Cisco IE-1000-6T2T-LM

The IE-1000-6T2T-LM is ideal for a variety of industrial use cases, including:

• Factory automation and control systems.
• Transportation networks in trains, buses, and traffic control systems.
• Energy and utility networks, including smart grid devices.
• Industrial surveillance and video monitoring networks.
• Small to medium-sized industrial Ethernet networks requiring reliable connectivity with light management.

Technical Specifications

• Model: Cisco IE-1000-6T2T-LM
• Ports: 8 x 10/100Base-TX RJ45 (6 standard + 2 uplinks)
• Power Input: 12–24VDC
• Enclosure: IP30 metal housing
• Operating Temperature: -20°C to +70°C
• Management: Lightly managed, Layer 2 features
• Mounting: DIN rail or panel mount
• Dimensions: Compact industrial form factor
• Certifications: Industrial standards compliance

Frequently Asked Questions (FAQs)

1. What is the difference between lightly managed and fully managed switches?
A lightly managed switch like the IE-1000-6T2T-LM offers basic network management features such as VLAN configuration and port monitoring, while fully managed switches provide advanced routing, security, and QoS features.

2. Can the IE-1000-6T2T-LM operate in extreme temperatures?
Yes. The switch is designed to operate between -20°C and +70°C. As a result it makes it suitable for harsh industrial environments.

3. What kind of power input does this switch support?
The switch supports a 12–24VDC power input, providing flexibility for industrial power setups.

4. Is the Cisco IE-1000-6T2T-LM suitable for outdoor installation?
It is primarily designed for indoor industrial environments or protected outdoor enclosures.

5. How is this switch mounted in an industrial setup?
It can be mounted on a DIN rail or directly onto panels, making it adaptable to different installation scenarios.

For more information you can view the datasheets for CISCO IE1000 here.
