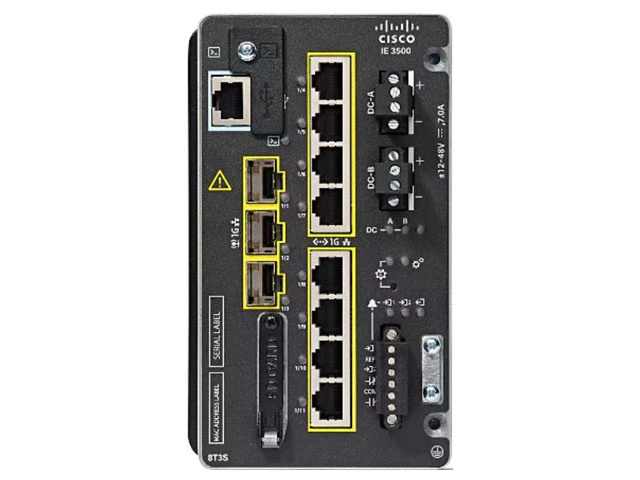

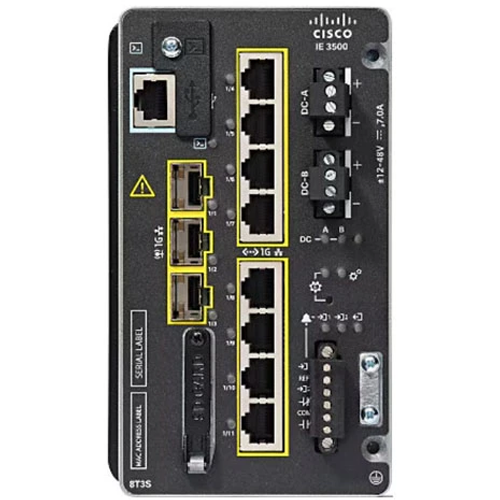

Cisco IE-3500-8T3S-A — Industrial-Grade Network Switch for Rugged Environments

The Cisco IE-3500-8T3S-A is a high-performance, modular industrial Ethernet switch from the IE3500 Rugged Series. Designed specifically for harsh, space-constrained, or mission-critical operational technology (OT) environments, it offers reliable gigabit connectivity, flexible fiber uplinks, advanced Layer 2/Layer 3 networking, and security features — all in a fanless, DIN-rail mountable form factor.

Key Specifications & Hardware Overview

Ports: 8 × 10/100/1000 Mbps RJ45 copper downlinks + 3 × 1 G (100/1000) SFP fiber uplinks. Switching Capacity: Line-rate forwarding across all ports (all packet sizes) to ensure consistent throughput. Memory / Storage: 8 GB DRAM and ~5.1 GB usable flash. VLAN & MAC capacity: Supports up to 4,096 VLAN IDs (up to 1,024 active VLANs) and up to 24,000 MAC addresses. Operating Environment: IP30-rated for ruggedness; works reliably in extreme conditions from –40 °C to +75 °C; fanless, passive cooling; DIN-rail mounting supports industrial enclosures and compact deployment. Power & Consumption: External DIN-rail power supply (dual DC input 12–54 VDC, absolute 9.6–60 VDC); ~29 W power consumption (non-PoE configuration).These specs make the IE-3500-8T3S-A a compact yet powerful choice for industrial edge networks, factories, automation systems, and other demanding environments.

Why IE-3500 Series — Industrial Features & Benefits

Ruggedized Design for Harsh Environments

The IE3500 family is built to endure — shock, vibration, temperature extremes, electrical noise, and unpredictable power conditions. The fanless, convection-cooled design (with no moving parts) enhances long-term reliability, especially in dusty, hot, or vibration-prone industrial settings. Cisco

Modular & Scalable Connectivity

While base IE-3500 switches (like IE-3500-8T3S-A) come with 8 copper + 3 SFP fiber ports, the modular architecture supports expansion — you can add compatible IEM (Industrial Ethernet Module) modules to scale up to 27 GE/Multigigabit ports if required. CiscoThis flexibility is valuable when network demands grow — e.g., adding more devices, cameras, WiFi access points, or PLCs (Programmable Logic Controllers).

Advanced Networking, Security & Management Features

Because the IE-3500-8T3S-A carries the Network Advantage license (suffix “-A”), it supports advanced Layer 2 and Layer 3 features. CiscoImportant software & security capabilities:Secure Boot and hardware root-of-trust ensure that only authenticated Cisco-signed software runs on boot. Cisco Micro-segmentation & access control: The switch integrates with technologies such as Cisco TrustSec for identity-based segmentation and secure equipment access. Cisco Cyber visibility & monitoring: Built-in support for Cisco Cyber Vision and optional embedded monitoring agents like ThousandEyes give deep visibility into network devices, traffic patterns, and potential vulnerabilities — critical for industrial networks. Cisco Resiliency protocols: The IE3500 supports industrial-grade network resilience protocols such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and Device Level Ring (DLR). As a result, it ensures fast failover and redundancy for always-on connectivity. CiscoAdditionally, management flexibility — whether via CLI, Web UI, SNMP, or centralized platforms like Cisco Catalyst Center or a cloud-based dashboard — makes deployment and administration easier across a diverse infrastructure. Cisco

Ideal Use Cases & Deployment Scenarios

Given its robust physical design, modularity, and advanced networking/security capabilities, IE-3500-8T3S-A is ideal for:1. Industrial automation lines — connecting PLCs, sensors, and actuators in factories, with resilience to dust, heat, and vibration. 2. Edge-to-cloud or edge-to-data center backbones — using fiber uplinks for backbone aggregation, with secure routing and segmentation. 3. Critical infrastructure environments — transportation, utilities, or control-system deployments requiring high uptime, network segmentation, and OT security. 4. Mixed network environments — combining copper devices (e.g. PLCs, cameras) with fiber uplinks for long-distance connectivity.Scalable or evolving installations — where future expansion (additional ports/modules) or increased network complexity (VLANs, Layer 3 routing) is expected.

Pros & Considerations

Pros:1. Industrial-rated ruggedness: IP30, wide temperature range (–40 °C to +75 °C), fanless design — built for real-world harsh conditions. 2. Modular and scalable — base 11-port switch can grow with network needs via IEM modules. 3. Advanced switching, routing, and security — with Network Advantage license, supports L2/L3, segmentation, monitoring, and secure boot. 4. Suitable for industrial and OT environments; supports protocols for redundancy, resilience, and low-latency time-sensitive networking (TSN / frame preemption).Considerations:1. No PoE support on this model — requires external power for devices. 2. For expansion modules, appropriate external DIN-rail power supply is needed (sold separately). 3. As with many industrial-grade devices, upfront costs tend to be higher compared to consumer or enterprise office-grade switches — but this pays off in durability, uptime, and reliability.

Summary — Why IE-3500-8T3S-A Stands Out

The Cisco IE-3500-8T3S-A is not just another network switch; it’s a purpose-built industrial communication platform that combines rugged hardware, flexible modularity, and enterprise-grade networking features. Whether you’re building a factory automation network, a resilient edge infrastructure, or a secure OT-IT converged environment, IE-3500-8T3S-A delivers reliable, scalable, and secure connectivity. Moreover, its combination of gigabit copper ports, fiber uplinks, advanced routing and security — all in a fanless, DIN-rail mountable design — makes it a top candidate for demanding industrial network deployments.
