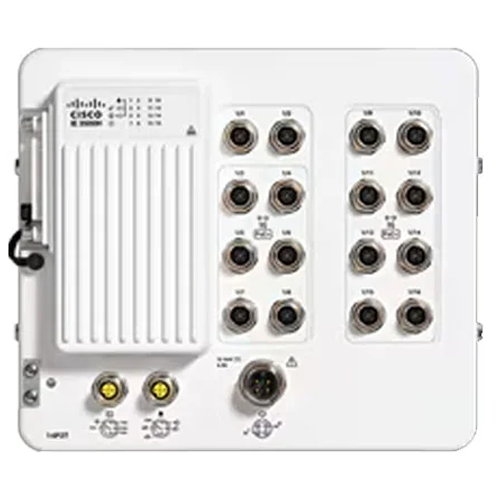

Cisco IE-3500H-12P2MU2XA Heavy-Duty Industrial Ethernet Switch: A Complete Technical Overview

The Cisco IE-3500H-12P2MU2XA is a ruggedized, heavy-duty industrial Ethernet switch engineered for extreme environments where reliability, high bandwidth, and advanced security are non-negotiable. Built with IP67 protection, mGig UPoE, 10-Gigabit uplinks, and Cisco’s Network Advantage software features, this switch delivers hardened performance for manufacturing, transportation, utilities, oil and gas, smart cities, and mission-critical OT networks.

Designed for deployments where dust, water, shock, vibration, and temperature extremes are constant challenges, the IE-3500H series extends enterprise-class networking into the harshest industrial zones without requiring protective enclosures.

Key Features and Benefits of the IE-3500H-12P2MU2XA

Ruggedized IP67 Protection for Harsh Environments

The switch is sealed and hardened to operate outdoors or in areas where exposure to dust, liquids, or corrosive elements is unavoidable. Its IP67 rating means all interfaces are gasket-protected, enabling direct field deployment without cabinet installation.

High-Performance Architecture for Industrial Bandwidth Demands

The switch supports high-speed industrial backbones through 2 × 10G SFP+ uplink ports, enabling low-latency, high-throughput connectivity to aggregation or core networks.
Additionally, its 2 × mGig UPoE X-Code ports deliver multi-gigabit speeds for bandwidth-intensive devices such as high-resolution PTZ cameras, wireless access points, and edge compute units.

Flexible Power Delivery With 240W PoE Budget

With a 240-watt PoE/UPoE power budget, the IE-3500H-12P2MU2XA can power a wide range of devices including sensors, cameras, access points, and IoT endpoints. Industrial UPoE ensures stable, extended-distance power across demanding environments.

Network Advantage Software for Advanced Capabilities

The switch includes Cisco’s Network Advantage feature set, unlocking advanced routing, security, and automation capabilities such as:

• Layer 3 dynamic routing
• MACsec encryption
• Advanced QoS
• Cyber Vision sensor integration
• Support for software-defined industrial networks
• High-availability redundancy protocols (HSRP, VRRP, GLBP)

Built for Future-Proof Industrial Transformation

With multi-gigabit interfaces, 10G uplinks, and full Layer 3 capabilities, the IE-3500H-12P2MU2XA supports the increasing demands of Industry 4.0 applications such as machine vision, high-density sensor grids, autonomous systems, and real-time data analytics.

Technical Specifications of the IE-3500H-12P2MU2XA

Interface Configuration

• 12 × GE X-Code ruggedized ports
• 2 × multi-gig UPoE X-Code ports (1G/2.5G/5G/10G)
• 2 × 10G SFP+ uplink ports

Power and Environmental

• 240W PoE/UPoE power budget
• Input voltage: 24VDC, 48VDC, or dual power feeds
• Operating temperature: Suitable for extreme industrial conditions (model-specific rugged range)
• Environmental rating: IP67-sealed enclosure

Performance and Hardware

• Switching capacity: High-throughput industrial-grade performance
• Forwarding rate: Optimized for deterministic, low-latency forwarding
• Fanless heavy-duty design for reliability

Security and Management

• MACsec Layer 2 encryption
• Secure Zero-Touch Provisioning (sZTP)
• Cisco Cyber Vision embedded sensor support
• Full Layer 3 routing (OSPF, EIGRP, BGP capabilities)
• Industrial cybersecurity hardening

Compliance and Standards

• Meets global industrial electromagnetic, vibration, and shock standards
• Designed for harsh industrial and outdoor deployments

Industrial Use Cases Enabled by the IE-3500H-12P2MU2XA

Smart Manufacturing and Factory Automation

Machine vision systems, robotics, real-time controllers, and motion equipment require stable multi-gigabit networking. The IE-3500H-12P2MU2XA provides deterministic networking under harsh electrical and mechanical conditions.

Transportation and Intelligent Roadway Systems

Its IP67 enclosure makes it suitable for traffic intersections, roadside cabinets, tunnels, rail networks, and outdoor surveillance.

Oil, Gas, and Energy

The ruggedized design supports remote operation centers, wellheads, substations, pipeline monitoring, and safety systems.

Outdoor Wireless and Video Infrastructure

UPoE and mGig ports allow direct powering of high-bandwidth outdoor Wi-Fi APs and high-resolution security cameras.

Why Choose the IE-3500H-12P2MU2XA?

Organizations requiring maximum durability, advanced cybersecurity, Layer 3 routing, and industrial-grade multi-gig/10G performance will find the IE-3500H-12P2MU2XA a future-proof choice. It eliminates the need for protective housings, reduces installation costs, and extends enterprise reliability deep into field environments where traditional switches cannot survive.

Frequently Asked Questions (FAQs)

1. What makes the IE-3500H-12P2MU2XA different from standard IE-3500 models?
This version includes IP67 protection, 2 multi-gig UPoE X-Code ports, 2 × 10G SFP+ uplinks, and a 240W PoE budget, making it suitable for harsher outdoor and industrial environments.

2. Can the switch operate without an enclosure?
Yes. The IP67-sealed design allows outdoor or field deployment without protective cabinets.

3. Does the IE-3500H support Layer 3 routing?
Yes, with Network Advantage, it supports advanced Layer 3 dynamic routing and security features.

4. What types of devices can be powered using UPoE?
High-bandwidth access points, PTZ cameras, sensors, lighting systems, and industrial IoT endpoints can be powered using the switch’s UPoE ports.

5. Is MACsec supported on the IE-3500H-12P2MU2XA?
Yes. MACsec encryption provides secure Layer 2 communications for industrial networks.

For more information you can view the datasheets for CISCO IE3500H here.
