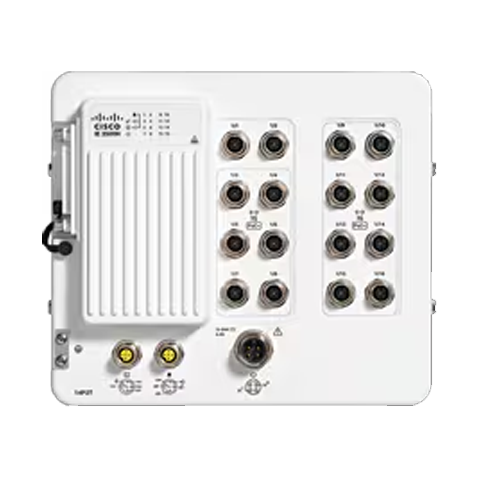

Cisco IE-3500H-14P2T-A: Heavy-Duty Industrial Ethernet Switch for Ruggedized Networking

The Cisco IE-3500H-14P2T-A is a next-generation, heavy-duty industrial Ethernet switch designed for mission-critical deployments in harsh outdoor and industrial environments. With IP67 non-vented protection, M12 X-code connectors, PoE/PoE+ power delivery, and the advanced Network Advantage feature set, it brings enterprise-grade intelligence and security into environments where moisture, vibration, dust, and extreme temperatures are the norm.Engineered for industries such as transportation, mining, oil and gas, utilities, smart cities, industrial automation, and outdoor surveillance, the IE-3500H delivers high-performance switching with proven Cisco reliability.

---

Overview of the Cisco IE-3500H-14P2T-A

The IE-3500H-14P2T-A model combines high-speed Gigabit connectivity with rugged construction, offering 14 GE X-code M12 PoE/PoE+ ports and 2 GE X-code M12 uplink ports. Its compact, sealed aluminum chassis eliminates the need for external enclosures, making it ideal for pole-mount, roadside, rail, and outdoor industrial installations.Powered by Cisco IOS XE, it supports full stackable switching, software-defined network integration, cybersecurity features, and advanced automation capabilities.

---

Key Features and Technical Specifications

Heavy-Duty Rugged Design

• IP67-rated enclosure for complete dust protection and resistance to water immersion
• Designed for extreme temperatures (typically –40°C to +75°C depending on power profile)
• Corrosion-resistant housing suitable for offshore, mining, and industrial plant environments
• Non-vented design prevents dust ingress and ensures long operating life

Advanced Industrial Networking Capabilities

• Full support for Layer 2 and Layer 3 enterprise-grade features under Network Advantage licensing
• Time-Sensitive Networking (TSN) for synchronized industrial automation
• M12 X-code connectors for secure, vibration-proof connections
• Supports Cisco DNA Center, Software-Defined Access (SD-Access), and Zero-Touch Provisioning

High-Performance PoE/PoE+ Power Delivery

• 14 Gigabit PoE/PoE+ M12 X-code ports
• Supports industrial cameras, sensors, controllers, APs, and IoT devices
• High power budget for dense device environments
• Intelligent power management for efficient energy utilization

Uplink and Expansion Options

• 2 Gigabit X-Code M12 uplink ports
• Designed for high-bandwidth backhaul in outdoor and mobile applications
• Flexible redundant ring architectures supported (MRP, REP, HSR, PRP*)

Software and Security Capabilities

• Network Advantage includes:
  • Advanced routing protocols (OSPF, BGP, EIGRP)
  • MACsec link-layer encryption
  • Layer-3 segmentation
  • Cisco TrustSec, 802.1X, device profiling
  • NetFlow, SNMPv3, role-based access control
• Image-capable for automation, telemetry, and predictive analytics

Performance & Hardware Specs

• Forwarding rate: Full Gigabit performance on all ports
• Switching capacity: High-throughput switching fabric to handle industrial data loads
• Memory: Ample DRAM and flash for complex IOS XE features (typically 4 GB/ 8 GB depending on revision)
• MTBF: Optimized for long service life in continuous-operation environments
• Mounting: DIN-rail, wall, and pole-mount variants depending on installation needs

---

Ideal Use Cases for the IE-3500H-14P2T-A

Smart Transportation Infrastructure

Roadside cabinets, toll plazas, traffic cameras, and outdoor signaling systems rely on vibration-resistant and weather-proof switching. The IE-3500H excels in mobile, outdoor, and high-vibration applications due to its M12 X-code connectors and sealed housing.

Industrial IoT and Automation

Supports TSN and high-density PoE/PoE+ supply for sensors, actuators, robotics, and SCADA communications.

Oil, Gas, and Mining Environments

Capable of withstanding corrosive atmospheres, dust clouds, and severe thermal swings.

Outdoor Surveillance Networks

Delivers reliable power and bandwidth to IP cameras, wireless access points, and security sensors.

---

Benefits of Deploying the IE-3500H-14P2T-A

Long-Term Deployment Stability

The fully sealed, IP67 metal enclosure ensures continuous operation for years without requiring environmental enclosures or frequent maintenance.

Enterprise-Grade Security in Harsh Conditions

MACsec encryption, TrustSec segmentation, and advanced threat defenses bring enterprise security to field-level devices.

High-Power PoE for Modern Edge Devices

Supports next-generation IoT nodes, high-power PTZ cameras, industrial sensors, and wireless backhaul radios.

Future-Ready with IOS XE

Modular software architecture allows upgrades, automation, telemetry, and programmability, ensuring longevity and compatibility.

---

Comparison Advantage Within the IE3500 Family

The IE-3500H-14P2T-A stands apart due to:

• Heavy-duty IP67 protection (most IE3500 models are IP30/IP40)
• Full PoE/PoE+ density across 14 ports
• M12 X-code connectors instead of RJ45
• Outdoor-ready, non-vented design
• High-end Network Advantage feature set

This makes it the top choice for industrial applications requiring maximum ruggedness and advanced networking intelligence.

---

Frequently Asked Questions (FAQs)

1. What makes the IE-3500H-14P2T-A different from standard industrial Ethernet switches? It combines IP67 ruggedization, M12 X-code ports, high PoE density, and full Layer-3 routing—a feature set rarely found together in industrial-grade hardware.2. Does the switch support Time-Sensitive Networking (TSN)? Yes, the IE-3500H platform supports TSN, making it suitable for synchronized industrial automation systems.3. Can this switch operate without an external enclosure? Yes. Its IP67 non-vented metal housing is designed to operate fully exposed in outdoor or harsh environments.4. What type of connectors does it use? All interfaces use M12 X-code connectors, providing vibration-resistant, secure industrial-grade connectivity.5. What license level does the IE-3500H-14P2T-A run? It includes the Network Advantage license, enabling advanced routing, segmentation, security, and automation features.For more information you can view the datasheets for CISCO IE3500H here.
