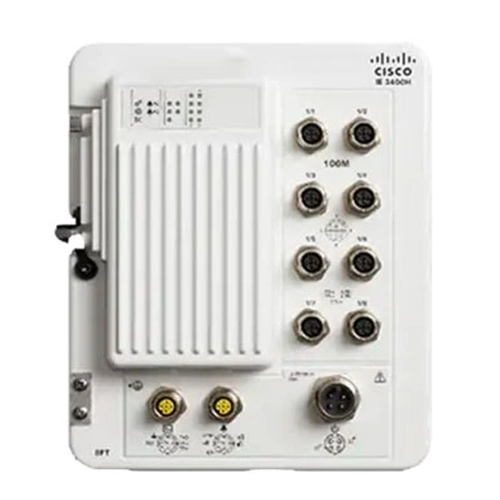

Cisco IE-3500H-8T-A: A Complete Guide to Cisco’s Heavy-Duty Industrial Ethernet Switch

The Cisco IE-3500H-8T-A is part of Cisco’s ruggedized IE3500 Heavy-Duty series, purpose-built for harsh industrial environments that demand high bandwidth, resilient networking, and long-term durability. With 8 Gigabit Ethernet X-Code M12 interfaces, IP67 protection, and Network Advantage licensing, this switch is engineered for edge-level industrial networking where dust, vibration, moisture, and extreme temperature conditions are present.

This article provides an SEO-optimized, in-depth look at the IE-3500H-8T-A, covering its features, specifications, hardware design, use cases, and operational advantages.

Overview of the Cisco IE-3500H-8T-A

Designed for mission-critical industrial deployments, the IE-3500H series extends Cisco’s powerful IOS XE capabilities to non-enclosed environments like outdoor rail systems, mining, roadside traffic cabinets, maritime platforms, oil and gas fields, and heavy manufacturing lines.

The IE-3500H-8T-A model delivers:

• 8 GE M12 X-Code interfaces, ideal for high-vibration and moisture-prone applications
• IP67-rated heavy-duty enclosure for complete dust and water immersion protection
• Cisco IOS XE with Network Advantage capabilities for advanced Layer 3 routing
• Time-Sensitive Networking (TSN) support
• High EMC, shock, and vibration tolerance
• Industrial temperature support suitable for outdoor and extreme environments

Key Hardware Features

Rugged IP67 Heavy-Duty Design

The switch is encased in a sealed, corrosion-resistant metal enclosure that offers complete protection against dust, rain, humidity, and temporary submersion in water. Its design eliminates the need for an external cabinet in many industrial deployments.

8 Gigabit M12 X-Code Ports

The M12 X-Code connectors provide secure locking mechanisms, ensuring reliable Ethernet connectivity even in high-vibration environments such as railcars, mining vehicles, or plant machinery.

Network Advantage Software

With Network Advantage licensing, the IE-3500H-8T-A supports advanced routing and security features including:

• OSPF
• EIGRP
• BGP
• VRF
• IGMP and PIM multicast
• MACsec* (model dependent)
• Segmentation and policy-based automation

This offers unmatched flexibility for high-performance industrial network architectures.

Detailed Technical Specifications

Below are essential specifications for the Cisco IE-3500H-8T-A:

• Model: IE-3500H-8T-A
• Port Count: 8 × 10/100/1000 Mbps M12-X Ethernet ports
• Connector Type: Rugged M12 X-coded
• Software License: Network Advantage (NA)
• Enclosure Rating: IP67
• Operational Temperature Range: –40°C to +75°C (varies with installation)
• Cooling: Passive, fanless design
• Input Power Options: DC input (range varies by model configuration)
• Management Interface: Cisco IOS XE, Web UI, CLI, SNMP, NETCONF/YANG
• Industrial Protocol Support: PROFINET, Modbus/TCP, EtherNet/IP
• Security Features: 802.1X, DH authentication, device hardening policies
• Dimensions: Compact heavy-duty form factor suitable for pole-mount, vehicle-mount, or outdoor wall installation
• Compliance: IEC 61850-3, IEEE 1613 (model-dependent), EN50155 shock/vibration standards

Performance and Software Capabilities

Deterministic Network Performance

With Time-Sensitive Networking (TSN), the switch can deliver microsecond-level deterministic communication—essential for robotics, motion control, industrial automation, and synchronized manufacturing operations.

Advanced Layer 3 Routing

Network Advantage expands routing capabilities, enabling the switch to function as an edge router in distributed industrial environments. It supports dynamic routing, segmentation, multicast optimization, and scalable security architectures.

Enhanced Security Architecture

Security is essential in OT environments. The IE-3500H-8T-A includes:

• Secure Boot
• Image signing
• Role-based access control
• Port security
• Encrypted protocols
• Policy enforcement using Cisco DNA tools

Industrial Use Cases

Transportation and Rail Systems

The M12 ruggedized connectors and shock-resistant design make this switch perfect for:

• Railcars
• Railway trackside networks
• Conductive railway signaling systems
• Intelligent Transport Systems (ITS)

Oil, Gas, and Mining

Extreme temperature endurance and IP67 sealing support:

• On-rig sensor networks
• Mining vehicles and conveyors
• Field-edge monitoring systems
• Hazardous zones (depending on enclosure location)

Outdoor Smart Infrastructure

The switch supports smart-city and outdoor applications such as:

• Traffic control systems
• Smart intersections
• Public safety cameras
• Roadside cabinets or pole-mounted deployments

Industrial Automation

TSN and high-precision connectivity make it suitable for:

• Robotics and motion control
• Plant automation networks
• Distributed manufacturing lines

Benefits of the Cisco IE-3500H-8T-A

• No need for protective cabinets due to IP67 heavy-duty enclosure
• High-speed Gigabit bandwidth across all 8 ports
• Low maintenance thanks to fanless design
• Improved reliability using M12 locking connectors
• Suitable for vibration-intensive applications such as rail and heavy equipment
• Future-ready industrial networking with TSN and IOS XE
• Advanced routing capabilities with Network Advantage licensing

Frequently Asked Questions (FAQs)

1. What makes the IE-3500H-8T-A different from standard IE3500 switches?
It uses an IP67 heavy-duty enclosure and M12 X-Code connectors, making it suitable for harsh outdoor or mobile environments.

2. Does the IE-3500H-8T-A support Layer 3 routing?
Yes. With Network Advantage, it supports advanced Layer 3 routing including OSPF, BGP, EIGRP, and VRF.

3. Can this switch operate without an external cabinet?
Yes. Its IP67 rating and rugged design allow it to be mounted outdoors or in exposed industrial areas without additional enclosures.

4. What type of power input does the switch use?
The IE-3500H-8T-A uses DC power input (ranges vary depending on the exact configuration). It supports redundant power for reliability.

5. Is Time-Sensitive Networking (TSN) supported?
Yes. The IE3500H series supports TSN, enabling precise, deterministic industrial communication.

For more information you can view the datasheets for CISCO IE3500H here.
