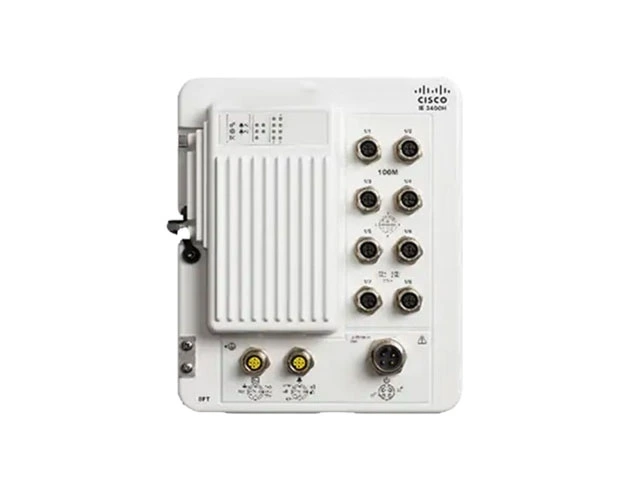

Cisco IE-3500H-8T-E Heavy-Duty Switch: Rugged Industrial Networking for Extreme Environments

The Cisco IE-3500H-8T-E is a hardened, high-performance industrial Ethernet switch designed for environments where reliability, durability, and advanced security are non-negotiable. Engineered to operate in harsh outdoor and mission-critical conditions, this model is part of Cisco’s latest heavy-duty IE3500 lineup, offering IP67 protection, 8 Gigabit Ethernet M12 X-Code interfaces, and Network Essentials software.

This article provides a complete technical overview, key specifications, operational advantages, and answers to frequently asked questions—optimized for search engines and technical buyers.

Overview of the Cisco IE-3500H-8T-E Heavy-Duty Switch

The IE-3500H-8T-E is built for use in scenarios where conventional switches fail due to environmental exposure, shock, vibration, or contamination. With a fully sealed, IP67-rated enclosure, it is ideal for rail systems, transportation, oil and gas, mining, outdoor industrial automation, and military-grade deployments. Key advantages include high-speed Gigabit connectivity, robust security features, and long-term reliability under extreme temperatures.

Rugged Design for Extreme Industrial Environments

The heavy-duty IE3500H series is designed to survive conditions far beyond standard IT deployments. Its durable metal enclosure and M12 connectors ensure network continuity even when exposed to:

• Dust and airborne contaminants
• Water jets and moisture ingress
• Constant vibration and shock
• High-EMI environments
• Extended operational temperatures

This switch operates in temperature ranges suitable for outdoor cabinets, wayside control, and heavy industrial machines.

High-Performance Connectivity with M12 X-Code Interfaces

The IE-3500H-8T-E includes 8 x 10/100/1000 Mbps M12 X-Code Gigabit Ethernet ports, offering secure and vibration-resistant connections. M12 X-Code connectors are specifically designed for:

• Mobile and rail-based systems
• High-vibration machinery
• Transportation networks
• High-speed data connectivity (up to 10 Gigabit capability on X-coded cables, though this model runs at 1G)

These industrial-grade connectors significantly reduce the risk of disconnection and network failure.

Industrial Protocol Support and Network Essentials Features

With Network Essentials, the switch provides a strong foundation of Layer 2 industrial networking capabilities, including:

• VLAN support
• Spanning Tree Protocol variants
• DHCP snooping
• IGMP snooping
• Basic QoS capabilities
• Port security and MAC filtering
• Industrial protocol visibility (e.g., Profinet, Ethernet/IP, Modbus TCP monitoring)

These features ensure consistent edge network performance while maintaining deterministic traffic flow required for automation and control systems.

Security and Reliability for Critical Operations

The Cisco IE-3500H-8T-E incorporates multiple layers of hardware-and software-level security:

• Secure Boot
• MACsec (platform capable)
• Authentication and access control
• Automatic device provisioning
• Signed firmware and image verification

These protections help safeguard critical infrastructure from unauthorized access, tampering, or cyber threats.

Technical Specifications

Product Model: IE-3500H-8T-E
Series: Cisco IE3500 Heavy Duty
Form Factor: Rugged IP67 outdoor/industrial switch
Interfaces:

• 8 × Gigabit Ethernet M12 X-Code ports
  Software License: Network Essentials
  Ingress Protection: IP67 (dust-tight, water-resistant)
  Operating Temperature: Extended industrial range (varies by configuration)
  Mounting Options: Panel or DIN-rail depending on bracket choice
  Power: Industrial DC input (support for redundant power sources depending on model)
  Certifications (typical for IE3500H):
• Railway EN 50155/50121
• IEC industrial standards
• Shock/vibration certifications
  Switching Capacity: High-performance non-blocking architecture
  Management:
• Web UI, CLI, SNMP
• Cisco DNA Center (Essentials) capable
• Zero-touch provisioning

Deployment Use Cases

Transportation:
The sealed M12 design makes it ideal for rolling stock, signaling, roadside cabinets, and intelligent transportation systems.

Oil, Gas, and Mining:
Resistant to corrosive environments, dust, liquids, and impact.

Outdoor Industrial Automation:
Reliable performance for field equipment, SCADA systems, and distributed I/O networks.

Defense and Security:
Durability and security features make it suitable for ruggedized tactical networks.

FAQs About the Cisco IE-3500H-8T-E

1. What makes the IE-3500H-8T-E different from the standard IE3500 series?
The H-series (Heavy Duty) models offer IP67 protection, M12 connectors, and enhanced resistance to shock, vibration, and environmental exposure.

2. Can this switch be used outdoors without an enclosure?
Yes. The IP67 housing is fully sealed and designed for direct outdoor installation in many scenarios.

3. What type of connectors does this model use?
It uses M12 X-Code connectors for all Gigabit Ethernet ports, ideal for high-vibration use cases.

4. Does the IE-3500H-8T-E support Layer 3 routing?
Not with Network Essentials. Layer 3 features require the Network Advantage license, but hardware capability varies by model.

5. What industrial protocols are supported?
It supports visibility and optimization for Ethernet/IP, PROFINET, Modbus TCP, and other common industrial automation protocols.
