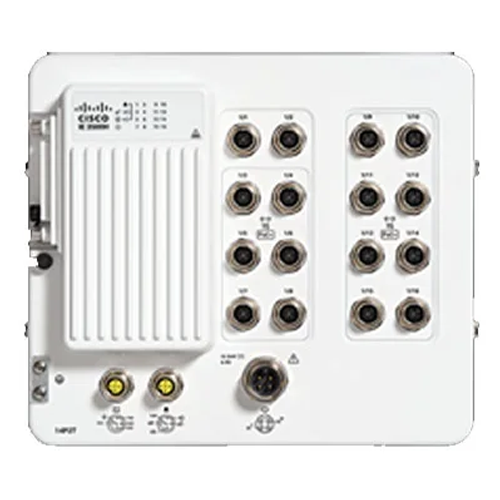

CISCO IE-3505H-16T-A: Heavy-Duty Industrial Switch with 16 GE X-Code M12 Interfaces and Network Advantage

The CISCO IE-3505H-16T-A, part of the Cisco IE3500 Heavy-Duty Series, is engineered for mission-critical, harsh, and highly mobile industrial environments. Built with an IP67-rated enclosure, vibration-resistant M12 X-coded Gigabit Ethernet ports, and the Network Advantage feature set, this switch is optimized for industries such as transportation, rail, mining, oil and gas, manufacturing, and outdoor automation.

Its ruggedized design and advanced software capabilities deliver a combination of durability, deterministic communication, security, and high-speed connectivity—making it ideal for environments where downtime is unacceptable.

Overview of the Cisco IE-3505H-16T-A Industrial Ethernet Switch

The IE-3505H-16T-A is a compact but powerful switch purpose-built for extreme environments. It supports advanced switching features, industrial protocols, and robust network security, offering resilient performance even under severe thermal, mechanical, and electrical stress.

This heavy-duty model is part of Cisco’s next-generation industrial automation portfolio and runs on the IOS XE operating system, ensuring modern capabilities and long-term software support.

Ruggedized Design for Extreme Conditions

Built for Harsh and Mobile Environments

The switch is designed to operate reliably in environments involving shock, vibration, dust, moisture, and electromagnetic noise. With a durable cast-aluminum chassis, sealed connections, and fanless cooling, it functions optimally where conventional networking equipment cannot survive.

Key Environmental Capabilities

• IP67-rated enclosure for complete dust protection and resistance to powerful water jets
• Extended operating temperature range typically supporting –40°C to +75°C
• M12 X-coded Ethernet connectors offering secure, vibration-proof signal integrity
• Fanless passive cooling ensuring longevity and silent operation in sealed environments
• Industrial EMC and shock/vibration certifications suitable for rail, automotive, and heavy machinery

High-Speed Connectivity with 16 GE M12 X-Coded Interfaces

The most defining feature of the IE-3505H-16T-A is its 16 Gigabit Ethernet X-coded M12 ports. These ports are engineered for applications requiring both rugged physical connectors and high throughput.

Benefits of X-Coded M12 Interfaces

• 10/100/1000 Mbps data rates with strong noise immunity
• Screw-locking design preventing accidental disconnects in high-vibration areas
• Future-proof Ethernet backbone for high-bandwidth field devices
• Suitable for mobile equipment, trains, vehicles, and outdoor industrial assets

These ports enable seamless data transmission for high-density sensor networks, IP surveillance, automation systems, and real-time control applications.

Advanced Software Features with the Network Advantage License

The Network Advantage feature set delivers enhanced Layer 3 routing and enterprise-grade security features, bringing industrial networks closer to enterprise-level performance and control.

Key Routing and Switching Features

• Full Layer 3 routing including OSPF, EIGRP, BGP, and RIP
• Segment Routing (SR-MPLS/SRv6) readiness
• Multicast support including PIM, IGMP, and MLD snooping
• Advanced QoS ensuring deterministic traffic prioritization
• Time-Sensitive Networking (TSN) capabilities on select models

Security Capabilities

• MACsec link-layer encryption
• 802.1X, port-based authentication, and device profiling
• Secure boot, image signing, and Cisco Trustworthy Solutions
• Role-based access and centralized policy management

With these features, the switch becomes a core part of a zero-trust industrial network architecture.

Industrial Protocols and Automation-Focused Capabilities

The IE-3505H-16T-A supports a broad suite of industrial protocols essential for automation and OT/IT convergence.

Supported Industrial Features

• Profinet Class B compliance
• CIP, Ethernet/IP, and Modbus/TCP compatibility
• Precision Time Protocol (PTP) IEEE 1588v2 for synchronization
• Flexible power options for field deployments
• Cisco DNA Center and WebUI for simplified management

These capabilities allow seamless integration into modern industrial control systems.

Technical Specifications of the Cisco IE-3505H-16T-A

Hardware Specifications

• Model: IE-3505H-16T-A
• Ports: 16 × 10/100/1000 Mbps M12 X-coded Ethernet ports
• Enclosure Rating: IP67, corrosion-resistant, sealed casing
• Operating Temperature: –40°C to +75°C
• Memory: 8 GB DRAM (varies by version), 8 GB eMMC
• CPU: Multi-core ARM processor (IOS XE based)
• Mounting: Panel, wall, or DIN-rail via adapter options
• Power Input: Typically supports 24V DC or dual-input power redundancy
• Cooling: Fanless, passive heat dissipation

Software Specifications

• Operating System: Cisco IOS XE
• License Level: Network Advantage
• Layer 3 Routing: OSPF, BGP, EIGRP, VRF-Lite, static routing
• Security: MACsec, 802.1X, SGT/TrustSec, secure boot
• Management: SNMP, NETCONF/YANG, CLI, WebUI, Cisco DNA Center

Ideal Use Cases for the IE-3505H-16T-A

Rail and Transportation Systems

Resistant to vibration and compliant with transportation standards.

Outdoor Surveillance and Security Deployments

High-bandwidth, IP67 protection for camera and sensor networks.

Manufacturing Automation

Supports industrial protocols and deterministic traffic flows.

Oil, Gas, and Mining Operations

Operates in dusty, hazardous, and remote environments reliably.

Smart City and Infrastructure Networks

Durable and secure for traffic systems, energy grids, and utilities.

Frequently Asked Questions (FAQs)

1. What is the main advantage of the Cisco IE-3505H-16T-A?

Its combination of 16 M12 X-coded Gigabit Ethernet ports, rugged IP67 protection, and advanced Layer 3 routing makes it ideal for harsh industrial environments requiring secure, high-speed networking.

2. Does this model support Layer 3 routing?

Yes. With the Network Advantage license, it provides full Layer 3 routing capabilities including OSPF, BGP, EIGRP, and advanced multicast.

3. Is the device suitable for mobile or vibration-intense environments?

Absolutely. The M12 connectors and ruggedized chassis make it reliable in railway, automotive, and heavy-machinery applications.

4. Can it be managed through Cisco DNA Center?

Yes. It supports Cisco DNA Center, CLI, SNMP, and NETCONF/YANG for flexible management.

5. What industries most commonly use the IE-3505H-16T-A?

Industries such as transportation, manufacturing, oil and gas, utilities, mining, and outdoor automation rely on this switch for high-availability networking.

For more information you can view the datasheets for CISCO IE3500H here.
