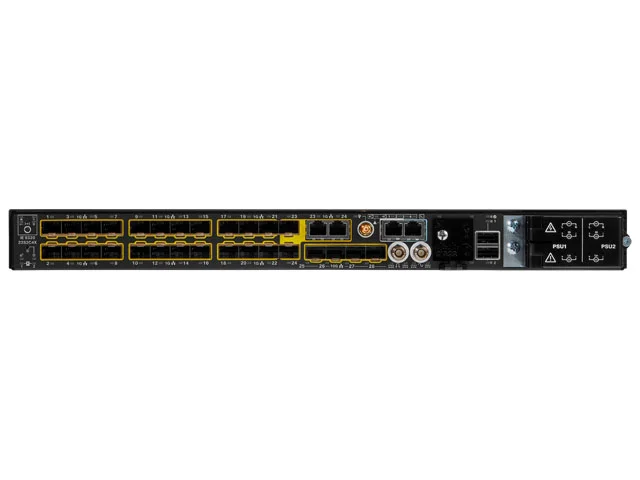

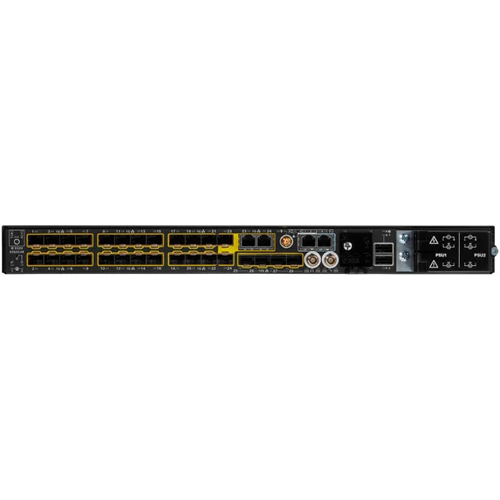

Cisco Catalyst IE-9320-22S2C4X-A: High-Performance Industrial Ethernet Switch for Modern Networks

The Cisco Catalyst IE-9320-22S2C4X-A is a next-generation industrial Ethernet switch designed for demanding industrial environments that require high reliability, robust performance, and seamless scalability. With 24 Gigabit Ethernet SFP downlink ports and 4 10G SFP+ uplinks, this stackable switch is ideal for mission-critical applications across manufacturing, transportation, energy, and smart infrastructure sectors. Its rugged design, including conformal coating and support for harsh environmental conditions, ensures uninterrupted network operation in challenging industrial settings.

Key Features and Benefits of Cisco IE-9320-22S2C4X-A

The IE-9320-22S2C4X-A is built to provide enterprise-grade network performance while meeting the tough demands of industrial networks. Here are its standout features:

• High Port Density: 24 Gigabit SFP downlink ports allow flexible connectivity for industrial devices, sensors, and controllers.
• High-Speed Uplinks: Four 10G SFP+ uplinks ensure high-speed aggregation and seamless integration with data centers or backbone networks.
• Stackable Architecture: Supports Cisco StackWise-160 technology for stacking up to eight switches, allowing simplified management and increased redundancy.
• Rugged Industrial Design: Conformal coating protects the switch against dust, moisture, and corrosive environments, making it ideal for factory floors and outdoor installations.
• Advanced Security: Features Cisco TrustSec, 802.1X authentication, and role-based access control to secure industrial networks.
• Network Resiliency: Supports redundancy protocols such as HSR (High-availability Seamless Redundancy) and PRP (Parallel Redundancy Protocol) for uninterrupted operations.
• Management and Automation: Integrated with Cisco DNA Center for automated provisioning, monitoring, and policy-based management.

Technical Specifications

The Cisco Catalyst IE-9320-22S2C4X-A is engineered with advanced capabilities to ensure optimal performance and durability in industrial applications:

• Model: IE-9320-22S2C4X-A
• Downlink Ports: 24 x 1G SFP
• Uplink Ports: 4 x 10G SFP+
• Stacking Capability: Up to 8 switches via Cisco StackWise-160
• Power Options: Dual redundant AC/DC power support
• Operating Temperature: -40°C to +75°C
• Conformal Coating: Protects against dust, moisture, and industrial contaminants
• Network Protocols: IPv4/IPv6, STP/RSTP/MSTP, HSR, PRP, LLDP, OSPF, BGP
• Dimensions: 44.45 mm x 442.0 mm x 340.0 mm
• Weight: Approximately 5.8 kg

Performance and Reliability

The IE-9320-22S2C4X-A delivers exceptional performance for high-throughput industrial networks. With low-latency switching and wire-speed forwarding, it ensures smooth operation of real-time applications such as motion control, video surveillance, and process automation. Its stackable design simplifies network expansion, reduces downtime, and improves operational efficiency, while advanced QoS features prioritize critical industrial traffic.

Industrial-Grade Durability

One of the most important advantages of the Cisco IE-9320-22S2C4X-A is its ability to withstand harsh environments. Its conformal coating safeguards against moisture, dust, and corrosive atmospheres, making it suitable for outdoor or factory-floor deployment. Moreover, the extended temperature range and redundant power options provide network stability even in extreme conditions.

Network Security and Management

Security is a top priority in industrial networks, and the IE-9320 series delivers comprehensive features to protect critical infrastructure. Role-based access, secure device management, and segmentation prevent unauthorized access and mitigate cyber threats. Integration with Cisco DNA Center enables centralized management, automation, and network insights to reduce operational complexity.

FAQs

1. What is the maximum stacking capability of the IE-9320-22S2C4X-A?
It supports Cisco StackWise-160, allowing up to 8 switches to be stacked for simplified management and enhanced redundancy.

2. Can this switch operate in extreme industrial temperatures?
Yes, it operates reliably in temperatures ranging from -40°C to +75°C, making it suitable for harsh environments.

3. How many uplink ports does the IE-9320-22S2C4X-A have?
It features 4 high-speed 10G SFP+ uplink ports for fast network aggregation and backbone connectivity.

4. Does this switch have protection against dust and moisture?
Yes, the switch comes with conformal coating that protects it from dust, moisture, and industrial contaminants.

5. Is the IE-9320-22S2C4X-A suitable for critical industrial automation applications?
Absolutely. With low-latency forwarding, redundant power, advanced security, and industrial-grade design, it is ideal for automation, control, and smart infrastructure networks.

For more information you can view the datasheets for CISCO IE9300 here.
