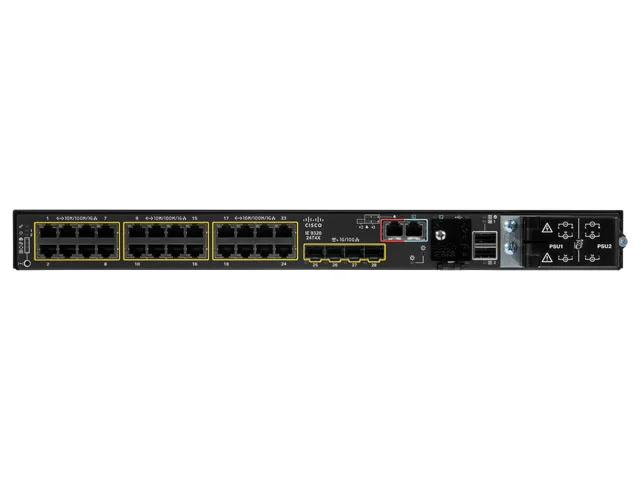

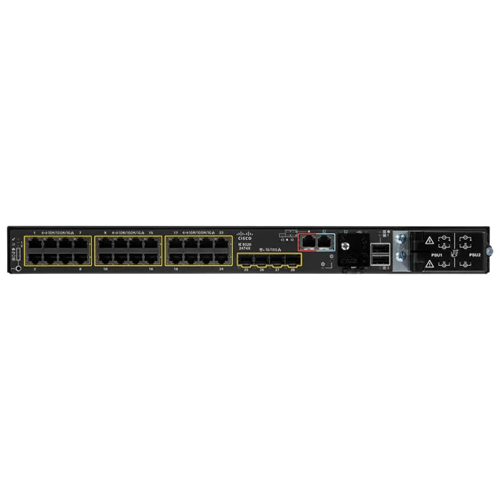

Cisco Catalyst IE9320-24T4X-A — Technical Specifications

Specification	IE-9320-24T4X-A
Product Family	Cisco Catalyst IE9300 Rugged Series
Part Number	IE-9320-24T4X-A
Device Type	Managed Industrial Ethernet Switch
Form Factor	1RU Rack-Mount
Total Ethernet Ports	28
Downlink Ports	24 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet
Uplink Ports	4 × 1/10 Gigabit Ethernet SFP+
Copper Port Speed	10/100/1000 Mbps
Uplink Speed	1/10 Gbps
PoE Support	No
Stacking	Cisco StackWise supported
Maximum Stack Members	4
Stacking Ports	2 stacking ports
Switching Bandwidth	128 Gbps
Forwarding Bandwidth	64 Gbps
Forwarding Rate	95.23 Mpps
MAC Address Table	24,000 unicast MAC addresses
VLAN IDs	4,096
Active VLANs	1,024
IGMP Multicast Groups	1,000
IPv4 Direct Routes	8,192
IPv4 Indirect Routes	7,000
IPv6 Indirect Routes	3,500
STP Instances	128
ACL Entries	1,536
Maximum SVIs	984
GRE Tunnels	10
DRAM	4 GB
Onboard Flash	8 GB
User-Accessible Flash	Approximately 2.5 GB
SD Card Support	Yes; 16 GB supported
USB	USB 2.0
Console Ports	1 × RS-232 via RJ-45; 1 × Micro USB
Alarm Inputs	4 × dry-contact alarm inputs
Alarm Output	1 × dry-contact Form-C relay alarm output
Power Inputs	Dual AC/DC power inputs
Power Supply Options	150W, 250W and 400W industrial power supplies
Typical Power Consumption	35W
Dimensions (H × W × D)	1.72 × 17.5 × 14.0 in.
Dimensions (H × W × D)	43.7 × 444.5 × 355.6 mm
Weight	9.5 lb (4.3 kg)
Mounting	Rack mount
Operating Temperature	-40° to 75°C (-40° to 167°F) with blower-equipped cabinet
Operating Temperature – Sealed Cabinet	-40° to 60°C (-40° to 140°F)
Operating Temperature – Vented Cabinet	-40° to 70°C (-40° to 158°F)
Storage Temperature	-40° to 85°C (-40° to 185°F)
Operating Humidity	5% to 95%, noncondensing
Maximum Operating Altitude	Up to 15,000 ft / 4,572 m without temperature derating
Maximum Altitude with Derating	Up to 40,000 ft / 12,192 m
Cooling	Fanless, convection-cooled
Operating System	Cisco IOS XE
Default Software License	Network Advantage
Advanced Routing	BGP, EIGRP, OSPF, IS-IS, HSRP, LISP, BGP-EVPN over VXLAN
Virtualization	VRF-Lite
Security	Cisco TrustSec, SGACL, EAP-TLS, MACsec-256, GRE
Industrial Protocols	EtherNet/IP, PROFINET, Modbus TCP
Redundancy Protocols	REP, REP Fast, MRP, Fast MRP
Precision Timing	IEEE 1588v2 PTP
Automation / Management	YANG, NETCONF, RESTCONF, Cisco Plug and Play, Day-0 ZTP
Management	Cisco Catalyst Center, WebUI, CLI
NetFlow	Full Flexible NetFlow
MTBF	651,580 hours
Ingress Protection	IP30
Warranty	5-year limited hardware warranty
Industrial Certifications	IEC 62443, IEC 61850-3, IEEE 1613, EN 50121, EN 61000-6-2/-6-4 and others
Hazardous Location Certifications	UL Class I Div 2, CSA Class I Div 2, ATEX Zone 2, IECEx Zone 2
Software Feature Set	Network Advantage
Cisco Cyber Vision	Available with Network Advantage SKU under Cisco’s applicable licensing terms

The port configuration, stacking capability, memory, alarm interfaces, power inputs, and physical specifications are taken from Cisco’s hardware tables. (Cisco)

Performance Specifications

For IE-9320-24T4X-A, Cisco specifies 95.23 Mpps forwarding, 64 Gbps forwarding bandwidth, and 128 Gbps full-duplex switching bandwidth. The switch supports 24,000 unicast MAC addresses, 4,096 VLAN IDs, 1,024 active VLANs, 7,000 IPv4 indirect routes, and 3,500 IPv6 indirect routes. (Cisco)

Power Specifications

The IE-9320-24T4X-A supports Cisco’s industrial power-supply family, including:

Power Supply	Output	Input Operating Range	Application
PWR-RGD-LOW-DC-H	150W	18–75V DC	Low-voltage DC / hazardous locations
PWR-RGD-AC-DC-H	150W	85–264V AC / 88–300V DC	High-voltage AC/DC / hazardous locations
PWR-RGD-AC-DC-250	250W	85–264V AC / 88–300V DC	High-voltage AC/DC
PWR-RGD-AC-DC-400	400W	85–264V AC / 88–300V DC	High-voltage AC/DC

Cisco lists 35W power consumption for the IE-9320-24T4X-E/-A. (Cisco)

Network Advantage Features

Because the “-A” version is Network Advantage, it has access to the higher-level routing and security feature set, including BGP, EIGRP, OSPF, IS-IS, HSRP, VRF-Lite, BGP-EVPN over VXLAN, Cisco TrustSec, MACsec-256, L3 NAT, PIM and IP SLA. (Cisco)

Industrial / Environmental Specifications

This is where the IE-9320-24T4X-A differs substantially from a conventional enterprise Catalyst switch. It is designed for harsh industrial environments, with an operating range as wide as -40°C to 75°C, fanless convection cooling, IP30 protection, vibration/shock resistance, and hazardous-location certifications. (Cisco)Cisco lists an MTBF of 651,580 hours specifically for the IE-9320-24T4X-E/-A. (Cisco)Official Cisco source: Cisco Catalyst IE9300 Rugged Series Data SheetIf you’re putting this on D-Ziner, I would recommend structuring the final product specification slightly differently—with sections for Port Configuration, Performance, Layer 2/Layer 3 Features, Industrial Features, Power, Physical, Environmental, Licensing, and Certifications. That will look much more like a professional data-center/industrial hardware product page than simply reproducing Cisco’s datasheet table.
