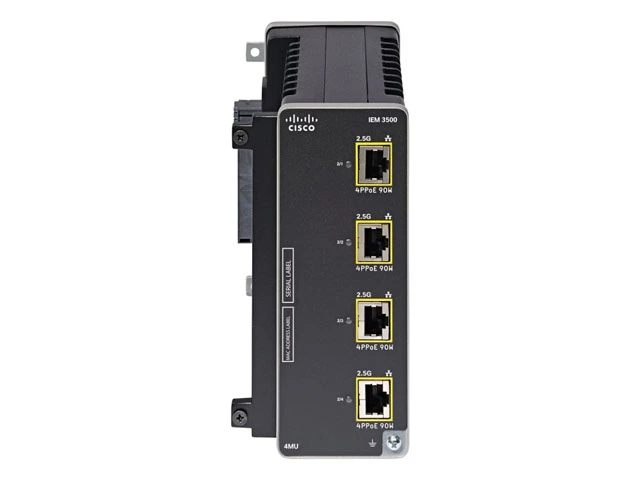

Overview of Cisco IE3500 with IEM‑3500‑4MU Module

The Cisco IE3500 series is a rugged, industrial‑grade Ethernet switch platform designed for demanding environments — from manufacturing floors and transportation hubs to utility substations and outdoor infrastructure. When equipped with the IEM‑3500‑4MU expansion module, the IE3500 becomes even more versatile: adding multigigabit copper ports with high-power PoE capability, enabling support for modern high-bandwidth, power-hungry devices such as advanced WiFi access points, HD IP cameras, and industrial controllers.

The modular design allows organizations to start with a base configuration and expand as their network demands evolve — offering a future-proof, scalable industrial networking solution.

Key Specifications and Capabilities

Here are the important specifications of the IE3500 when fitted with the IEM‑3500‑4MU expansion module:

Port Configuration

• The IEM‑3500‑4MU module adds 4 RJ‑45 copper ports, each supporting multigig speeds (1 Gbps or 2.5 Gbps).
• The copper ports support auto-negotiation and Auto‑MDIX, simplifying cabling by automatically adjusting for straight-through or crossover cables.
• These added ports complement the base switch’s existing ports (depending on the base model), allowing a total system port count when expanded.

Power over Ethernet (PoE/4PPoE) & Power Budget

• The 4 added ports support PoE++ / 4‑pair PoE (IEEE 802.3bt), enabling high-wattage devices to draw power directly from the switch.
• However, the actual power delivered depends on the capacity/budget of the host IE3500 chassis — the module itself does not provide independent power.
• This design is ideal when you need to power devices like high-end access points, PTZ cameras, or IoT/industrial endpoints that require more than standard PoE/PoE+.

Industrial-Grade Design and Reliability

• The IE3500 platform — and thus the expanded system — is built for harsh environments, with operating temperature range from –40 °C to +75 °C.
• The switch is fanless and convection-cooled, with no moving parts, offering greater durability, reliability and lower maintenance in industrial settings.
• Supports a large MAC address table and scale: up to 24,000 MAC addresses, suitable for large networks with many endpoints.

Management, Security & Network Features

• The IE3500 supports secure industrial networking features such as secure boot (with a hardware root of trust), MACsec‑256, network segmentation through TrustSec, and asset visibility via industrial security features — making it suitable for critical infrastructure deployments.
• Management can be done through on-device Web UI, CLI, on-prem management (e.g. Cisco Catalyst Center), or even cloud-based management (e.g. via Meraki dashboard), offering flexibility depending on your operational model.

Why Choose the IEM‑3500‑4MU Module

Installing the IEM‑3500‑4MU expansion module into an IE3500 switch makes sense when:

• You need multigigabit copper connectivity (2.5 Gbps) for upstream or high-bandwidth endpoints without changing cabling or using fiber.
• You want PoE++ (4‑pair) power to drive high-demand devices — e.g. advanced access points, PTZ/HD cameras, industrial devices — directly from the switch.
• You operate in harsh or industrial environments requiring robust, fanless, vibration- and temperature‑tolerant hardware.
• You plan for scalability and modular expansion, adding ports as network demands grow without replacing the base switch chassis.

This flexibility makes IE3500 with IEM‑3500‑4MU particularly appealing for industrial automation, smart building infrastructure, surveillance systems, and large-scale enterprise networks where reliability and power-over-Ethernet are critical.

Potential Limitations / Things to Consider

• The actual PoE output of the module depends on the power budget and power supply used with the base IE3500 chassis — ensuring adequate power provisioning is essential.
• The IEM‑3500‑4MU module — according to official documentation — does not support certain real‑time redundancy protocols like HSR/PRP/DLR.
• As with any modular expansion, the module must be compatible with the installed version of the IE3500 chassis and may require firmware/software that supports modular configuration.

Frequently Asked Questions

Q1: What exactly does the IEM‑3500‑4MU module provide for IE3500?
A1: It provides 4 additional multigigabit RJ‑45 copper ports (1 Gbps or 2.5 Gbps) with support for 4‑pair PoE (PoE++ / IEEE 802.3bt), effectively expanding the switch’s port count and enabling powering of high-wattage devices.

Q2: Can all four ports deliver full 90 W each at the same time?
A2: Potentially yes — each port supports up to 90 W (per 802.3bt Type 4) — but only if the host IE3500 chassis and its power supply have sufficient overall PoE budget.

Q3: Is the module hot‑swappable (can I install it without shutting down the switch)?
A3: No — installing the module requires powering down the base switch chassis.

Q4: Will the module work in all IE3500 variants?
A4: It works in supported modular IE3500 switches. However, note that with IEM‑3500‑4MU in some configurations, certain redundancy protocols (like HSR/PRP/DLR) may not be supported.

Q5: Is the IE3500 with this module suitable for industrial environments (e.g. factory, outdoor, harsh conditions)?
A5: Yes — the IE3500 platform is designed for industrial-grade reliability, with operating temperatures from –40 °C to +75 °C, fanless design, shock/vibration resistance, and compliance with industrial standards.

Conclusion

The Cisco IE3500 switch combined with the IEM‑3500‑4MU expansion module represents a powerful, flexible, and industrial‑ready networking solution — ideal for organizations needing multigigabit copper connectivity plus robust PoE++ support for modern high-power devices. Its modularity, combined with hardened design and advanced security and management features, make it especially suitable for industrial automation, building infrastructure, surveillance, and enterprise environments requiring reliability and scalability.
