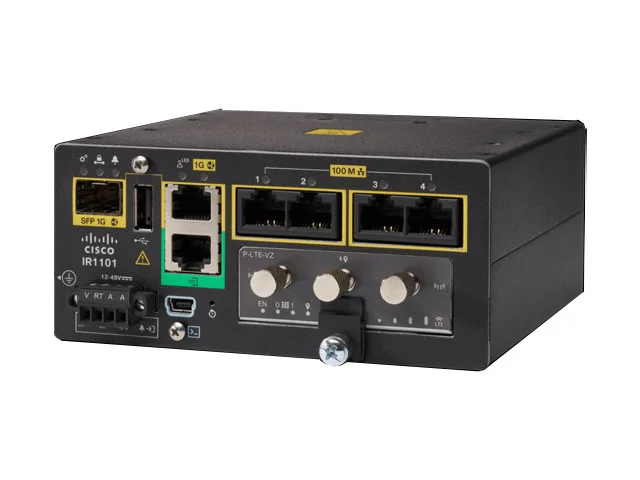

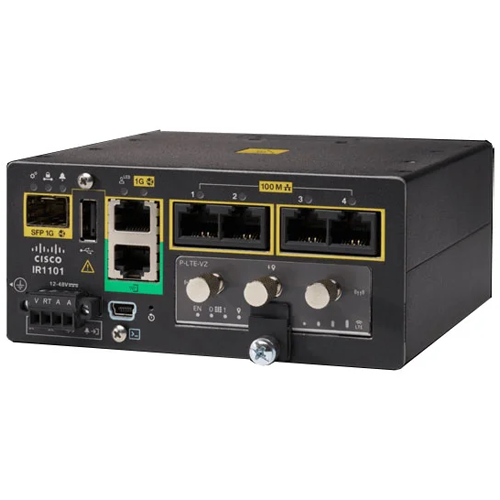

Cisco Catalyst IR1101 Rugged Series Router (IR1101-A-K9): The Compact Powerhouse for Industrial Connectivity

The Cisco Catalyst IR1101-A-K9 Rugged Series Router is designed for demanding industrial environments where always-on connectivity, strong cybersecurity, and modular expandability are essential. Equipped with the SL-IR1101-NA software license, this rugged router delivers secure, scalable, and highly reliable networking for IoT, transportation, utilities, manufacturing, smart cities, and remote industrial sites.Built to thrive in extreme conditions—from harsh outdoor settings to vibration-heavy industrial cabinets—the IR1101 is a future-proof industrial router engineered to support modern edge compute requirements, advanced security, and high-performance cellular connectivity.

---

Key Features of the Cisco Catalyst IR1101-A-K9 Rugged Router

Rugged Design Built for Harsh Industrial Environments

The IR1101 is purpose-built for industries that demand continuous uptime in extreme conditions. Its hardened design provides resistance to shock, vibration, dust, moisture, and variable temperatures. This makes it the ideal choice for outdoor IoT projects, industrial automation, and mobile fleet communication.

Modular Architecture for Future Expansion

With Cisco’s flexible modular design, the IR1101 allows users to customize their deployments based on evolving connectivity requirements. Expansion modules support additional cellular modems, extra storage, or advanced services—future-proofing your deployment without replacing hardware.

Advanced Security with the SL-IR1101-NA License

The SL-IR1101-NA software license unlocks essential security and routing features, including encrypted communication, VPN, firewall capabilities, policy-based routing, and segmented network architecture. This ensures end-to-end protection for critical infrastructure deployments.

High-Performance Cellular Connectivity

Offering Gigabit-class LTE options with dual SIM failover, the IR1101 provides continuous, resilient WAN connectivity—even in remote or mobile environments. Edge compute capabilities allow processing closer to the source, reducing latency and bandwidth consumption.

---

Technical Specifications of the Cisco IR1101-A-K9

Hardware Specifications

• Product Model: Cisco Catalyst IR1101 (IR1101-A-K9)
• Form Factor: Modular, compact rugged router
• Mounting Options: DIN-rail and wall mounting
• Operating Temperature: -40°C to +60°C (extended range)
• Ingress Protection Rating: Suitable for dusty and outdoor environments
• Shock & Vibration: Compliant with industrial and transportation standards
• CPU: Multi-core ARM processor designed for edge computing
• Memory: 2 GB RAM
• Flash Storage: 8 GB default, expandable via internal microSD

Connectivity & Interface Options

• WAN Connectivity:
  • LTE Category 4 or LTE Advanced (depending on module)
  • Dual-SIM support for network redundancy
• Ethernet Ports:
  • 2 x 10/100/1000 Gigabit Ethernet interfaces
• Serial Interfaces: Optional through expansion modules
• GPS/GNSS Support: Available with select cellular modules
• USB Ports: 1 x USB 2.0

Software & Security Specifications (SL-IR1101-NA)

• Routing Protocols:
  • BGP, OSPF, EIGRP, RIP, static routing
• Security Features:
  • Stateful firewall
  • IPsec VPN
  • MACsec (module dependent)
  • Identity and access control
• Management:
  • Cisco IOS XE
  • Cisco DNA Center
  • Secure boot and hardware root of trust

Industrial Certifications

• IEC 61850-3
• IEEE 1613
• EN 50155 (transportation environments)
• UL/CSA certifications

---

Benefits of Deploying the Cisco IR1101-A-K9 Rugged Router

Reliable Connectivity for Mission-Critical Operations

Whether deployed in a utility substation or embedded inside a moving vehicle, the IR1101 delivers consistent performance with uninterrupted communication channels.

Designed for Edge Computing and IoT Expansion

With the ability to host containerized applications directly on the router, organizations can reduce backhaul costs and improve real-time decision-making.

Enhanced Lifecycle and Lower TCO

Its modular design reduces the need for future hardware replacements, offering long-term value and minimizing operational downtime.

Easy Centralized Management

Cisco DNA Center and Cisco IOx capabilities enable streamlined configuration, monitoring, and remote troubleshooting.

---

Industries That Benefit from the Cisco IR1101-A-K9

Smart Cities and IoT Infrastructure

Ideal for roadside units, traffic control systems, and distributed IoT gateways.

Utilities and Energy Networks

Reliable for substations, pipelines, and renewable energy installations.

Manufacturing and Industrial Automation

Supports robotics, sensors, SCADA systems, and operational technology networks.

Transportation and Fleet Management

Perfect for buses, trains, emergency vehicles, and intelligent transportation systems.

---

Frequently Asked Questions (FAQs)

What is included with the Cisco IR1101-A-K9 model?

The package includes the base IR1101 router chassis and hardware essentials. The SL-IR1101-NA software license provides the necessary routing and security features for industrial deployments.

Is the IR1101 suitable for outdoor installations?

Yes. With its ruggedized design and wide operating temperature range, the router performs reliably in outdoor and harsh industrial conditions.

Can the IR1101 support dual cellular connectivity?

Yes. With the appropriate expansion module, the router can support dual LTE modems, dual SIM cards, and failover configurations.

What software license features does SL-IR1101-NA provide?

It enables routing, VPN security, advanced management, and policy-based networking features essential for industrial IoT applications.

Does the Cisco IR1101 support edge computing?

Yes. It supports Cisco IOx for hosting container-based applications directly on the router, enabling powerful edge compute capabilities.
