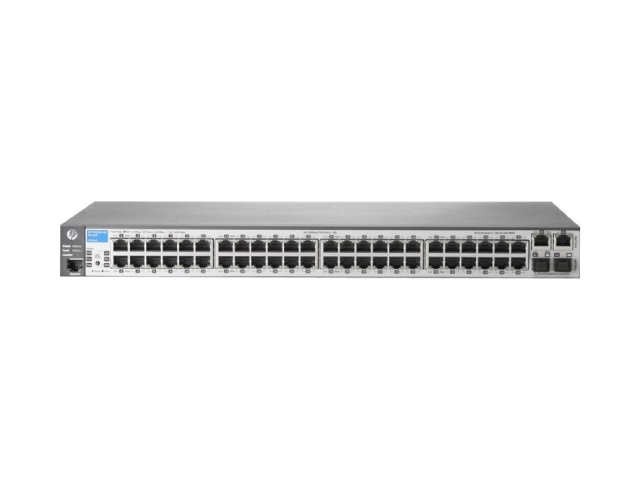

J9626A HPE Aruba 26248-ports Layer 4 Managed Switch

HPE Aruba 2620-48 – Switch – L4 – managed – 48 x 10/100 + 2 x 10/100/1000 + 2 x SFP – rack-mountableThe Aruba 2620 Switch Series provides cost-effectiveness, flexibility, and ease of use for enterprise edge, SMB, and branch office access layer deployments. This Fast Ethernet switch has a robust Basic Layer 3 feature set with static and RIP routing, PoE+, ACLs, sFlow, IPv6, and requires no software licensing. The Aruba 2620 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as Aruba ClearPass Policy Manager and Aruba Airwave.What’s In The Box – (1) Aruba 2620-48 Switch– Aruba Basic Layer 3 Fast Ethernet switch series – Basic Layer 3 switching with static and RIP routing, IPv6, ACLs, and sFlow – Fanless models for silent operation in offices and conference rooms – Up to 740 W PoE+ with external power supply – Supports Aruba ClearPass Policy Manager and Aruba Airwave

Flexible, Simple and Cost-effective Fast Ethernet Switches

The Aruba 2620 Switch Series provides cost-effectiveness, flexibility, and ease of use for enterprise edge, SMB, and branch office access layer deployments.Cost-effective Fast Ethernet switch with four Gigabit Ethernet uplinks (two copper and two SFP) and support for external and redundant power supplies for improved network resiliency and quickly scaling of PoE+ devices.Robust Basic Layer 3 feature set includes static and RIP routing, PoE+, ACLs, sFlow, IPv6, and requires no software licensing.

Power at the Edge

The Aruba 2620 Switch Series is designed with up to 370 W of internal PoE+ power and easily scales to 740 Watts with simple connection to EPS/RPS. A model with 128 W is ideal when you only need to power several PoE+ devices.Optional redundant power with external RPS/EPS enhances network resiliency. Highly rated, 80 PLUS Silver Grade Power Supplies on the 2620-24-PoE+ and 2620-48-PoE+ switches conserve energy resources.Increase performance with selectable queue configurations and associated memory buffering that meet your network application performance requirements.

Security and Quality of Service (QoS) You Can Rely on

The Aruba 2620 Switch Series includes security and (QoS) features to build a network that meets ever-changing corporate policies and compliances and helps protect your data from both inside and outside attacks.The Aruba 2620 Switch Series supports flexible authentication options include standards based security protocols such Local MAC, 802.1X, and MAC and Web for greater, policy-driven application security.Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels that are mapped to eight queues.Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.Defend your IPv6 network with DHCPv6 Protection.Single View of the NetworkThe Aruba 2620 Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.Supports Aruba Airwave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.

Main Specifications

Product Description HPE Aruba 2620-48 – switch – 48 ports – managed – rack-mountable Device Type Switch – 48 ports – L4 – managed Enclosure Type Rack-mountable 1U Subtype Fast Ethernet Ports 48 x 10/100 + 2 x 10/100/1000 + 2 x SFP Performance Routing/switching capacity: 17.6 Gbps – Throughput: up to 13 Mpps MAC Address Table Size 16000 entries Jumbo Frame Support 9220 bytes Routing Protocol RIP-1, RIP-2, IGMPv3, MLDv2, MLD Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SMON, CLI Features Flow control, auto-sensing per device, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, IPv6 support, half duplex mode, full duplex mode, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, STP Root Guard, LLDP support, MAC address lockout, dynamic ARP protection, DHCP protection, per-port broadcast throttling Compliant Standards IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP) Power AC 120/230 V (50/60 Hz) Dimensions (WxDxH) 17.4 in x 10 in x 1.7 in Weight 6.39 lbs Localization English / United States Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch – 48 ports – L4 – managed Enclosure Type Rack-mountable 1U Subtype Fast Ethernet Ports 48 x 10/100 + 2 x 10/100/1000 + 2 x SFP Performance Routing/switching capacity: 17.6 Gbps – Throughput: up to 13 Mpps MAC Address Table Size 16000 entries Jumbo Frame Support 9220 bytes Routing Protocol RIP-1, RIP-2, IGMPv3, MLDv2, MLD Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SMON, CLI Encryption Algorithm SSL Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2) Features Flow control, auto-sensing per device, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, IPv6 support, half duplex mode, full duplex mode, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, STP Root Guard, LLDP support, MAC address lockout, dynamic ARP protection, DHCP protection, per-port broadcast throttling Compliant Standards IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP) Processor 1 x Freescale MPC8313: 400 MHz RAM 512 MB SDRAM Flash Memory 512 MB

Expansion / Connectivity

Interfaces 48 x 10Base-T/100Base-TX – RJ-45 – 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – 1 x console RJ-45 management

Power

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included Compliant Standards FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CSA 22.2 No. 60950, EN 60825 Localization English / United States

Dimensions & Weight

Width 17.4 in Depth 10 in Height 1.7 in Weight 6.39 lbs

Manufacturer Warranty

Service & Support Limited warranty – advance parts replacement – lifetime

Environmental Parameters

Min Operating Temperature 32 Degree Fahrenheit Max Operating Temperature 131 Degree Fahrenheit Humidity Range Operating 15 – 95% (non-condensing) Min Storage Temperature -40 Degree Fahrenheit Max Storage Temperature 158 Degree Fahrenheit Humidity Range Storage 15 – 90% (non-condensing)
