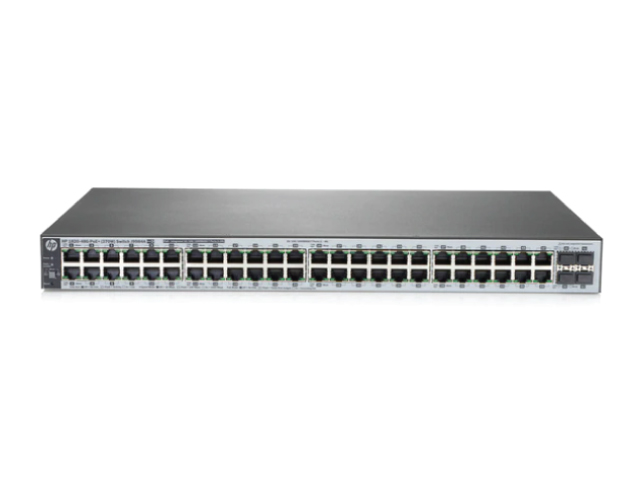

J9984A New HPE OfficeConnect 1820-48G-PoE 370W PoE Managed Switch
MPN: J9984A | UPC: 0 888182299906 | CONDITION: New
Product Details
HPE 1820-48G-PoE+ (370W) – Switch – managed – 24 x 10/100/1000 + 4 x Fast Ethernet/Gigabit SFP + 24 x 10/100/1000 (PoE+) – desktop, rack-mountable – PoE+ (370 W)
The HPE1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.
WHAT’S IN THE BOX – (1) HPEOfficeConnect 1820-48G-PoE+ (370W) Switch
MAIN SPECIFICATIONS | |
Product Description | HPE1820-48G-PoE+ (370W) – switch – 48 ports – managed – rack-mountable |
Device Type | Switch – 48 ports – managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x Fast Ethernet/Gigabit SFP + 24 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Throughput (64-byte packet size): up to 77.3 Mpps ? Switching capacity: 104 Gbps |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9220 bytes |
Remote Management Protocol | SNMP 1, SNMP 2c, HTTPS |
Features | Flow control, full duplex capability, layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, SNTP support, Quality of Service (QoS), Jumbo Frames support, LLDP support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP) |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 17.4 in x 12.7 in x 1.7 in |
Weight | 9.7 lbs |
Manufacturer Warranty | Limited lifetime warranty |
EXTENDED SPECIFICATIONS | |
General | |
Device Type | Switch – 48 ports – managed |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x Fast Ethernet/Gigabit SFP + 24 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Throughput (64-byte packet size): up to 77.3 Mpps ? Switching capacity: 104 Gbps |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9220 bytes |
Remote Management Protocol | SNMP 1, SNMP 2c, HTTPS |
Encryption Algorithm | SSL |
Features | Flow control, full duplex capability, layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, SNTP support, Quality of Service (QoS), Jumbo Frames support, LLDP support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP) |
Processor | 1 x ARM Cortex-A9: 400 MHz |
RAM | 128 MB SDRAM |
Flash Memory | 16 MB |
Expansion / Connectivity | |
Interfaces | 24 x 1000Base-T RJ-45 ? 4 x SFP ? 24 x 1000Base-T RJ-45 PoE+ |
Power | |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
Rack Mounting Kit | Included |
MTBF | 45.05 years |
Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, VCCI Class A, CAN/CSA-C22.2 No. 60950-1 |
Dimensions & Weight | |
Width | 17.4 in |
Depth | 12.7 in |
Height | 1.7 in |
Weight | 9.7 lbs |
Manufacturer Warranty | |
Service & Support | Limited warranty – advance parts replacement – lifetime – response time: next business day |
Environmental Parameters | |
Min Operating Temperature | 32 ?F |
Max Operating Temperature | 104 ?F |
Humidity Range Operating | 15 – 95% |
Min Storage Temperature | -40 ?F |
Max Storage Temperature | 158 ?F |
Humidity Range Storage | 15 – 95% |
?
Weight | 16 lbs |
---|---|
Dimensions | 23 × 19 × 5 in |
SKU | J9984A |
Condition | New |
Brand | HPE |
GTIN | 0 888182299906 |
