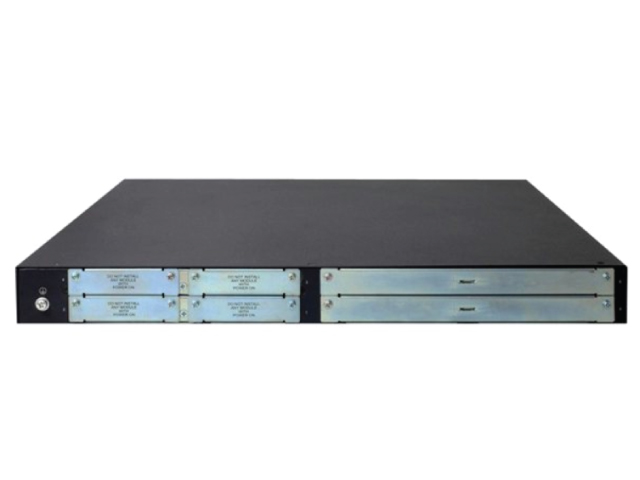

JG406A – HPE MSR3024 – Router – GigE – rack-mountable.

HPE MSR3024 – Router – GigE – rack-mountableThe HPEMSR3000 Router Series delivers high-performance medium to large branch routing up to 5 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying management of your corporate WAN. With the Open Application Platform module, the MSR3000 Router Series offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches.WHAT’S IN THE BOX – (1) HPEMSR3024 AC RouterReduces Complexity and Simplifies Your NetworkThe HPEMSR3000 Router Series simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing. Makes administration easier with HPEIntelligent Management Center (IMC) Software. Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.Enhances Time to Service and Branch PerformanceThe HPEMSR3000 Router Series offers high performance routing with up to 5 Mpps forwarding and 3.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic. Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security. Satisfies medium to large branches with advanced hardware architecture and high port density.Increase Your Return on InvestmentThe HPEMSR3000 Router Series is a modular platform with a wide range of connectivity options that enables the right design for your needs. Reduces your TCO through open standards, power and space savings, and energy-efficient hardware. Deploy advanced features with no additional licensing.Boosts Agility and ResiliencyThe HPEMSR3000 Router Series provides branch service and business continuity with 4G/LTE and 3G WAN. With the Open Application Platform module, support HPEAllianceOne applications such as WAN acceleration and Microsoft Skype for Business (Lync). Delivers an open standards approach to your network infrastructure. With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.

MAIN SPECIFICATIONS
Product Description	HPEMSR3024 – router – desktop, rack-mountable
Device Type	Router
Enclosure Type	Desktop, rack-mountable – modular – 1U
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance	Throughput: up to 2.6 Mpps
Capacity	Routing table entries: 500000 ? Forwarding table entries: 500000
Network / Transport Protocol	TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Features	Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), DHCP relay, Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP)
Compliant Standards	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power	AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)	17.3 in x 18.9 in x 1.7 in
Weight	17.42 lbs
Manufacturer Warranty	1-year warranty
EXTENDED SPECIFICATIONS
General
Device Type	Router
Enclosure Type	Desktop, rack-mountable – modular – 1U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance	Throughput: up to 2.6 Mpps
Capacity	Routing table entries: 500000 ? Forwarding table entries: 500000
Network / Transport Protocol	TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Encryption Algorithm	MD5, TLS
Authentication Method	RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), DHCP relay, Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP)
Compliant Standards	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, EMC, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, AS/NZS 60950, ANSI C63.4-2003, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 300 386
Processor	1 x 1 GHz
RAM	2 GB (installed) / 4 GB (max) – DDR3 SDRAM
Flash Memory	256 MB
Expansion / Connectivity
Interfaces	3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ? 1 x Ethernet 1000 – SFP (mini-GBIC) ? USB 2.0: 2 x 4 pin USB Type A ? Management: 1 x auxiliary ? Management: 1 x USB
Expansion Slots	1 (total) / 1 (free) x expansion slot ? 2 (total) / 2 (free) x High-performance Multifunction Interface Module (HMIM) ? 4 (total) / 4 (free) x Smart Interface Card (SIC) ? 1 (total) / 1 (free) x CompactFlash
Installed Modules Qty (Max)	0 (installed) / 7 (max)
Power
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit	Included
MTBF	49.61 years
Dimensions & Weight
Width	17.3 in
Depth	18.9 in
Height	1.7 in
Weight	17.42 lbs
Manufacturer Warranty
Service & Support	Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature	32 ?F
Max Operating Temperature	113 ?F
Humidity Range Operating	5 – 90% (non-condensing)

?
