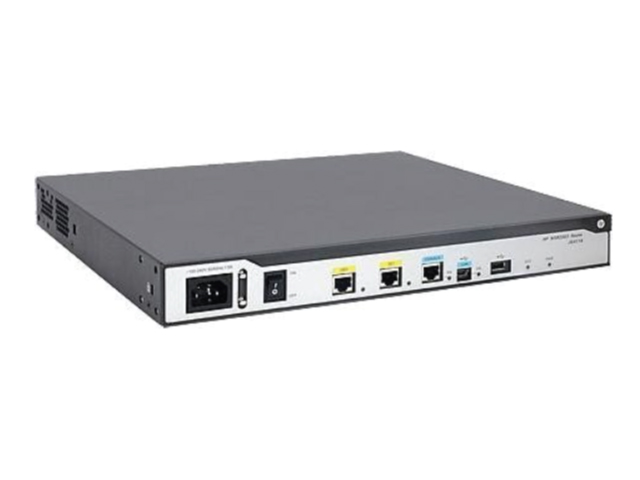

JG734A – HPE MSR2004-24 – Router – 24-port switch – GigE – rack-mountable

HPE MSR2004-24 – Router – 24-port switch – GigE – rack-mountableThe HPEMSR2000 Router Series delivers high-performance, medium branch routing up to 1 Mpps in a cost-optimized modular form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. With its convenient modular design, the MSR2000 Router Series offers a choice of connectivity options to provide flexible, open standards and lasting investment protection with lower CAPEX and OPEX and is ideal for the medium-sized branches.WHAT’S IN THE BOX – (1) HPEMSR2004-24 AC RouterReduces Complexity and Simplifies Your NetworkThe HPEMSR2000 Router Series simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium branch routing. Makes administration easier with HPEIntelligent Management Center (IMC) Software. Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.Enhances Time to Service and Branch PerformanceThe HPEMSR2000 Router Series offers high performance routing with up to 1 Mpps forwarding and 400 Mbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic. Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security. Satisfies medium branches with advanced hardware architecture and high port density.Increases Your Return on Your InvestmentThe HPEMSR2000 Router Series is a modular platform with a wide range of connectivity options that enables the right design for your needs. Reduces your TCO through open standards, power and space savings, and energy-efficient hardware. Deploy advanced features with no additional licensing.Boosts Agility and ResiliencyWith advanced hardware architecture, you get reliable, high-performance functionality with multi-core processors. Advanced hardware architecture with multi-core processors ensures reliable, high performance functionality.

MAIN SPECIFICATIONS
Product Description	HPEMSR2004-24 – router – desktop, rack-mountable
Device Type	Router – 24-port switch (integrated)
Enclosure Type	Desktop, rack-mountable – 1U
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate	1 Gbps
Performance	Throughput (64-byte packet size): up to 1 Mpps
Capacity	IPv4 routing table entries: 200000 ? IPv6 routing table entries: 200000 ? IPv4 forwarding table entries: 200000 ? IPv6 forwarding table entries: 200000
Network / Transport Protocol	NTP, IPSec
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, IGMP, VRRP, OSPFv3, Multiprotocol BGP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, TFTP
Features	NAT support, port mirroring, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Access Control List (ACL) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Network Quality Analyzer (NQA)
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1w, IEEE 802.1s
Power	AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)	17.3 in x 14.2 in x 1.7 in
Weight	15.1 lbs
Localization	English / United States
Manufacturer Warranty	1-year warranty
EXTENDED SPECIFICATIONS
General
Device Type	Router – 24-port switch (integrated)
Enclosure Type	Desktop, rack-mountable – 1U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate	1 Gbps
Performance	Throughput (64-byte packet size): up to 1 Mpps
Capacity	IPv4 routing table entries: 200000 ? IPv6 routing table entries: 200000 ? IPv4 forwarding table entries: 200000 ? IPv6 forwarding table entries: 200000
Network / Transport Protocol	NTP, IPSec
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, IGMP, VRRP, OSPFv3, Multiprotocol BGP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, TFTP
Encryption Algorithm	DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method	RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	NAT support, port mirroring, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Access Control List (ACL) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Network Quality Analyzer (NQA)
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1w, IEEE 802.1s, CISPR 22 Class A, CISPR 24, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, FCC Part 68, ICES-003 Class A, CS-03, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, VCCI Class A, AS/NZS CISPR 22, GB 4943.1, CAN/CSA-C22.2 No. 60950-1, EN 300386
Processor	1 x 800 MHz
RAM	1 GB DDR3 SDRAM
Flash Memory	256 MB
Expansion / Connectivity
Interfaces	3 x 1000Base-T – RJ-45 ? LAN: 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ? 1 x Ethernet 1000 – SFP (mini-GBIC) ? Management: 1 x
Expansion Slots	4 (total) / 4 (free) x Smart Interface Card (SIC)
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	54 Watt
Miscellaneous
Rack Mounting Kit	Included
MTBF	92.2 years
Localization	English / United States
Dimensions & Weight
Width	17.3 in
Depth	14.2 in
Height	1.7 in
Weight	15.1 lbs
Manufacturer Warranty
Service & Support	Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature	32 ?F
Max Operating Temperature	113 ?F
Humidity Range Operating	5 – 90% (non-condensing)

?
