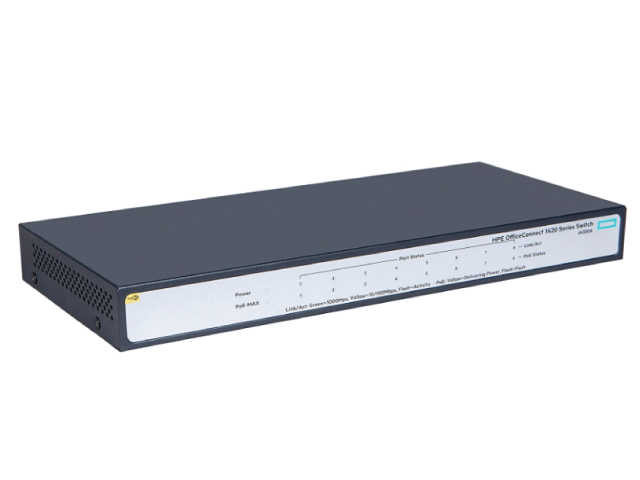

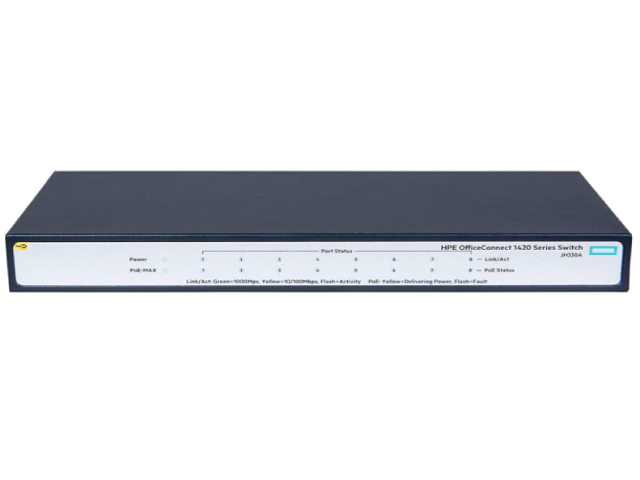

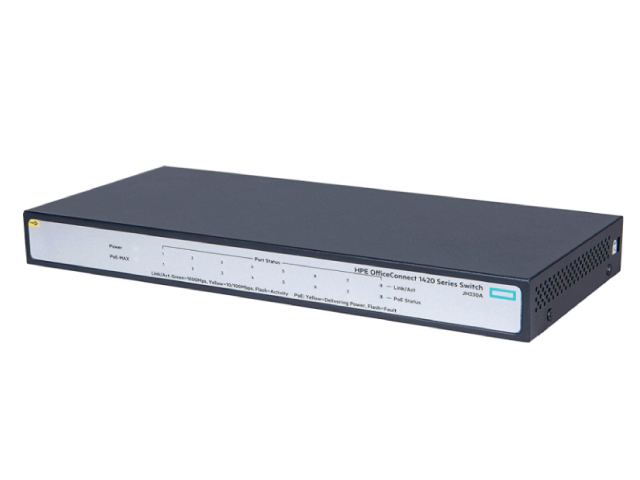

JH330A – HPE OfficeConnect 1420 8-Port PoE Managed Switch
MPN: JH330A | UPC: 0 889296966685 | CONDITION: New
Product Details
HPE OfficeConnect 1420 8G PoE+ – Switch – unmanaged – 8 x 10/100/1000 – desktop – PoE+ (64 W)
The HPEOfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, Fiber and 10G uplinks for connectivity to servers and storage. All models support silent fanless operation, automated features for hands off operation and low power consumption. They come with limited lifetime warranty and 24X7 phone support for 90 days.
WHAT’S IN THE BOX – (1) HPEOfficeConnect 1420 8G PoE+ (64W) Switch
MAIN SPECIFICATIONS | |
Product Description | HPEOfficeConnect 1420 8G PoE+ – switch – 8 ports – unmanaged |
Device Type | Switch – 8 ports – unmanaged |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 64 W |
Performance | Switching capacity: 16 Gbps ? Throughput (64-byte packet size): 11.8 Mpps ? Latency (100 Mbps): 3 ?s ? Latency (1000Base-T): 2.6 ?s |
MAC Address Table Size | 4096 entries |
Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, DiffServ Code Point (DSCP) support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
Power | AC 120/230 V (50/60 Hz) 300 mA |
Dimensions (WxDxH) | 9.2 in x 4.1 in x 1.1 in |
Weight | 24.69 oz |
Manufacturer Warranty | Limited lifetime warranty |
EXTENDED SPECIFICATIONS | |
General | |
Device Type | Switch – 8 ports – unmanaged |
Enclosure Type | Desktop |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 64 W |
Performance | Switching capacity: 16 Gbps ? Throughput (64-byte packet size): 11.8 Mpps ? Latency (100 Mbps): 3 ?s ? Latency (1000Base-T): 2.6 ?s |
MAC Address Table Size | 4096 entries |
Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, DiffServ Code Point (DSCP) support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
Flash Memory | 1.5 MB |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 |
Power | |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Electric Current Required | 300 mA |
Power Consumption Operational | 80 Watt |
Miscellaneous | |
Compliant Standards | Plug and Play, CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, UL 60950, CISPR 22, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-03 |
Dimensions & Weight | |
Width | 9.2 in |
Depth | 4.1 in |
Height | 1.1 in |
Weight | 24.69 oz |
Manufacturer Warranty | |
Service & Support | Limited warranty – lifetime |
Environmental Parameters | |
Min Operating Temperature | 32 ?F |
Max Operating Temperature | 104 ?F |
Humidity Range Operating | 15 – 95% (non-condensing) |
Min Storage Temperature | -40 ?F |
Max Storage Temperature | 158 ?F |
Humidity Range Storage | 15 – 95% (non-condensing) |
?
Weight | 4 lbs |
---|---|
Dimensions | 13 × 11 × 3 in |
SKU | JH330A |
Condition | New |
Brand | HPE |
GTIN | 0 889296966685 |
- The warranty for refurbished units is 30 days.
- The warranty for New units is as per the manufacturer’s terms and conditions.
