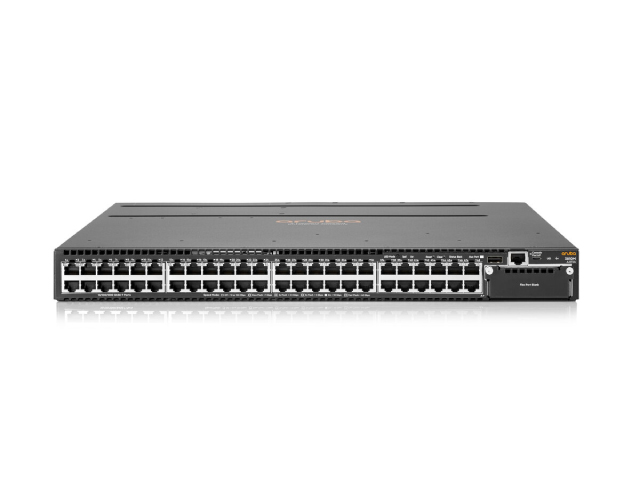

JL072A HPE Aruba 3810M 48-ports Layer 3 Managed Switch

HPE Aruba 3800 Series 3810M 48G 1-slot Switch – Switch – L3 – managed – 48 x 10/100/1000 – rack-mountableThe Aruba 3800 Series 3810 Switch provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPESmart Rate multi-gigabit ports for high-speed 802.11ac devices, this advanced Layer 3 switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. The Aruba 3810 is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.WHAT’S IN THE BOX – (1) Aruba 3810M 48G 1-slot SwitchPerformance and Power for the Digital WorkplaceThe Aruba 3810 Switch Series is an industry leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPESmart Rate multi-gigabit ports for high speed 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow. HPESmart Rate ports support multi-gigabit Ethernet speeds (1, 2.5, 5, and 10 gigabit Ethernet) on existing cabling for cost-effective and convenient network upgrades with no rip and replace of cabling. Optimized for the digital workplace with unified management and security tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment. Rightsizes deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor. Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, robust QoS and policy-based routing are included with no software licensing. Built-in programmable and easy to use REST API interface provides configuration automation for Mobile-first campus networks.Resiliency and High Availability You Can Depend OnThe Aruba 3810 Switch Series is designed with a ProVision ASIC designed to enable the mobile campus with very low latency, increased packet buffering, and adaptive power consumption. Backplane stacking technology delivers high-performance stacking with up to 336 Gb/s of stacking throughput and increased resiliency. Up to ten Aruba 3810 switches can be stacked in a ring topology or up to five can be stacking in a mesh topology. Dual hot-swappable power supplies provide power and allow swapping of modules on the fly to reduce impact on the network availability. More performance with selectable queue configurations and associated memory buffering that best meets requirements of prioritized network applications. Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications. Uninterrupted switching and routing for improved application experience and enhanced L3 availability. Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.Trusted Security with Unmatched Quality of ServiceThe Aruba 3810 Switch Series includes robust security and quality of services features to build a mobile campus network that meets corporate policies and compliance requirements. Flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities for improved user experience. Enhanced security and policy-driven application authentication with concurrent 802.1X, MAC and Web Authentication modes. Prevent unwanted traffic with advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection. Powerful multilevel-access security controls, such as role-based management, configurable password complexity, RADIUS/TACACS+, and SSH for improved security and control change management access. Tunneled Node to transport network traffic on a per-port basis to Aruba controller with authentication and network policies applied and enforced at the controller. Industry standard MACsec provides switch-to-switch link level security.Simplify with Unified ManagementThe Aruba 3810 Switch Series supports Aruba ClearPass Policy Manager to provide unified and consistent policy between wired and wireless users. Simplified implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies on the network. Supports Aruba AirWave and cloud-based Aruba Central to provide common platform for zero-touch provisioning, management, and monitoring for wired and wireless network devices. Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure. RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events. Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

MAIN SPECIFICATIONS
Product Description	HPE Aruba 3810M 48G 1-slot Switch – switch – 48 ports – managed – rack-mountable
Device Type	Aruba 3800 Series Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000
Performance	Routing/switching capacity: 160 Gbps – Switching fabric bandwidth: 169 Gbps – Latency (1 Gbps): 2.8 s – Latency (10 Gbps): 1.8 s – Throughput (64-byte packet size): up to 95.2 Mpps – Latency (40 Gbps): 1.5 s
Capacity	IPv4 routing table entries: 10000 – IPv6 routing table entries: 5000
MAC Address Table Size	64K entries
Routing Protocol	OSPF, BGP-4, RIP-1, RIP-2, BGP, OSPFv2, OSPFv3
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, XRMON
Features	Flow control, DHCP support, BOOTP support, VLAN support, Syslog support, DiffServ support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), LLDP support, Link Aggregation Control Protocol (LACP)
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX
Dimensions (WxDxH)	17.4 in x 17 in x 1.7 in
Weight	13.21 lbs
Manufacturer Warranty	Limited lifetime warranty
EXTENDED SPECIFICATIONS
General
Device Type	Aruba 3800 Series Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000
Performance	Routing/switching capacity: 160 Gbps – Switching fabric bandwidth: 169 Gbps – Latency (1 Gbps): 2.8 s – Latency (10 Gbps): 1.8 s – Throughput (64-byte packet size): up to 95.2 Mpps – Latency (40 Gbps): 1.5 s
Capacity	IPv4 routing table entries: 10000 – IPv6 routing table entries: 5000
MAC Address Table Size	64K entries
Routing Protocol	OSPF, BGP-4, RIP-1, RIP-2, BGP, OSPFv2, OSPFv3
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, XRMON
Encryption Algorithm	SSL
Authentication Method	RADIUS, TACACS+
Features	Flow control, DHCP support, BOOTP support, VLAN support, Syslog support, DiffServ support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), LLDP support, Link Aggregation Control Protocol (LACP)
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX
Processor	2
RAM	6 MB DDR3 SDRAM
Flash Memory	1 GB
Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 – 1 x console RJ-45 – 1 x management (LAN) RJ-45 ? 1 x micro-USB output Type B – 1 x RJ-45
Expansion Slots	1 (total) / 1 (free) x expansion slot – 1 (total) / 1 (free) x Stacking Module slot
Power
Power Device	Internal power supply
Installed Qty	0 (installed) / 2 (max)
Miscellaneous
Included Accessories	Fan tray
Compliant Standards	FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 60950, UL 60950, UL 60950-1, EN 60825, EN 61000-3-3:2008, CAN/CSA C22.2 No. 60950, EN 61000-3-2:2006+A1:2009+A2:2009, VCCI Class A, EN55022:2010, EN55024:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2013, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width	17.4 in
Depth	17 in
Height	1.7 in
Weight	13.21 lbs
Manufacturer Warranty
Service & Support	Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature	32 Degree Fahrenheit
Max Operating Temperature	113 Degree Fahrenheit
Humidity Range Operating	15 – 95% (non-condensing)
Min Storage Temperature	-40 Degree Fahrenheit
Max Storage Temperature	158 Degree Fahrenheit
Humidity Range Storage	15 – 90% (non-condensing)
