JL171A – HPE OfficeConnect 1850 48G 4XGT – Switch – managed – 48 – 10/100/1000 – 4 – 10Base-T – desktop, rack-mountable, wall-mountable
MPN: JL171A | UPC: 0 889296848226 | CONDITION: New
Price
$1,172.00
Availability: 4 in stock
Pay securely with Stripe Payments Gateway
All major credit cards are accepted
- Only Genuine Equipment
- Quality Guarantee
- Free US Ground Shipping
Product images are for reference. Actual product may vary.
Major Credit Cards Accepted
Free Ground Shipping in USA
Secure Payments
Safe Checkout

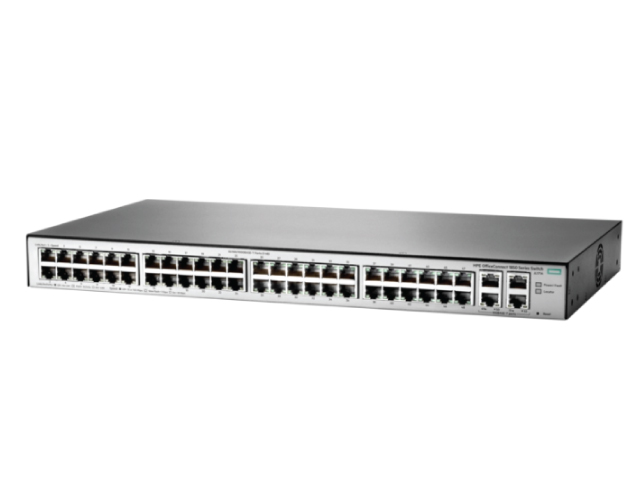

HPE OfficeConnect 1850 48G 4XGT – Switch – managed – 48 x 10/100/1000 + 4 x 10Base-T – desktop, rack-mountable, wall-mountable
The HPEOfficeConnect 1850 Switch Series offers choice and flexibility for smaller organizations that require ease of use and affordable high performance connectivity. The series consists of four basic smart-managed, fixed configuration, Gigabit Layer 2 switches and one 10 Gigabit aggregator switch to deliver high performance 10G connectivity to the edge. They come in an easy-to-administer solution that has the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through a simple Web browser-based GUI, when needed.
WHAT’S IN THE BOX – (1) HPEOfficeConnect 1850 48G 4XGT Switch (JL171A), rack, wall, under table and table mounting hardware, documentation kit, country specific power cord
MAIN SPECIFICATIONS | |
| Product Description | HPEOfficeConnect 1850 48G 4XGT – switch – 48 ports – managed – rack-mountable |
| Device Type | Switch – 48 ports – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10Base-T |
| Performance | Throughput: 131 Mpps – Switching capacity: 176 Gbps – Latency (100 Mbps): 9.7 s – Latency (1000Base-T): 3.7 s – Latency (10 Gbps): 3.7 s |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9220 bytes |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTPS |
| Features | Full duplex capability, layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, half duplex mode, full duplex mode, Quality of Service (QoS), DHCP client, 3MB packet buffer, Network Timing Protocol (NTP) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 9.7 in x 1.7 in |
| Weight | 7.05 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
EXTENDED SPECIFICATIONS | |
| General | |
| Device Type | Switch – 48 ports – managed |
| Enclosure Type | Desktop, rack-mountable, wall-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10Base-T |
| Performance | Throughput: 131 Mpps – Switching capacity: 176 Gbps – Latency (100 Mbps): 9.7 s – Latency (1000Base-T): 3.7 s – Latency (10 Gbps): 3.7 s |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9220 bytes |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTPS |
| Encryption Algorithm | SSL |
| Features | Full duplex capability, layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, half duplex mode, full duplex mode, Quality of Service (QoS), DHCP client, 3MB packet buffer, Network Timing Protocol (NTP) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
| Processor | 1 x ARM Cortex-A9: 400 MHz |
| RAM | 128 MB DDR3 SDRAM |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 – 4 x Gigabit / 10Gbit LAN RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 49.3 Watt |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 79.4 years |
| Compliant Standards | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950, RoHS, IEC 60950-1, EN 60950-1, WEEE, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, CNS 13438, ICES-003 issue 5 Class A, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, EN 55032:2015 |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 9.7 in |
| Height | 1.7 in |
| Weight | 7.05 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – advance parts replacement – lifetime – shipment – response time: next business day – Technical support – phone consulting – lifetime – shipment |
| Environmental Parameters | |
| Min Operating Temperature | 32 F |
| Max Operating Temperature | 104 F |
| Humidity Range Operating | 15 – 95% (non-condensing) |
| Min Storage Temperature | -40 F |
| Max Storage Temperature | 158 F |
| Humidity Range Storage | 15 – 95% (non-condensing) |
| Weight | 8 lbs |
|---|---|
| Dimensions | 10 × 8 × 2 in |
| SKU | JL171A |
| Condition | New |
| Brand | HPE |
| GTIN | 0 889296848226 |
