Actual product may vary from the images

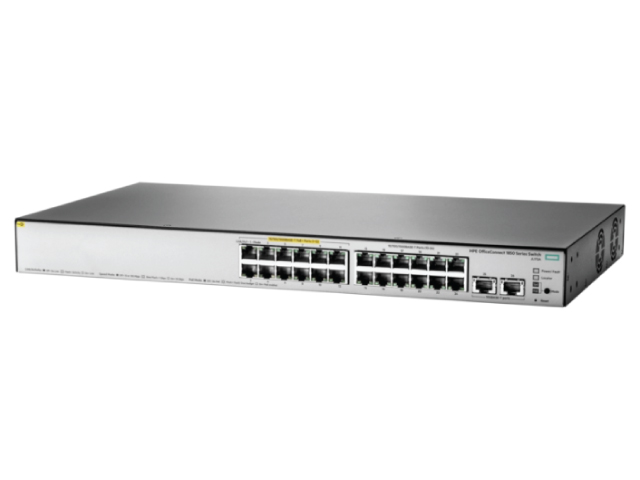

JL172A New HPE OfficeConnect 1850 24G 2XGT PoE 185W 24-Ports Managed Switch

MPN: JL172A | UPC: 0 889296848547 | CONDITION: New

Price

$889.00

Availability: 7 in stock

Payments

Pay securely with Stripe Payments Gateway

Major Credit Cards Accepted

Free Ground Shipping in USA

Secure Payments

Safe Checkout

HPE OfficeConnect 1850 24G 2XGT PoE+ 185W – Switch – managed – 24 x 10/100/1000 + 2 x 10Base-T – desktop, rack-mountable, wall-mountable – PoE+ (185 W)

The HPEOfficeConnect 1850 Switch Series offers choice and flexibility for smaller organizations that require ease of use and affordable high performance connectivity. The series consists of four basic smart-managed, fixed configuration, Gigabit Layer 2 switches and one 10 Gigabit aggregator switch to deliver high performance 10G connectivity to the edge. They come in an easy-to-administer solution that has the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through a simple Web browser-based GUI, when needed.

WHAT’S IN THE BOX – (1) HPEOfficeConnect 1850 24G 2XGT PoE+ 185W Switch (JL172A), rack, wall, under table and table mounting hardware, documentation kit, country specific power cord

MAIN SPECIFICATIONS

Product Description HPEOfficeConnect 1850 24G 2XGT PoE+ 185W – switch – 24 ports – managed – rack-mountable
Device Type Switch – 24 ports – managed
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 24 x 10/100/1000 + 2 x 10Base-T
Power Over Ethernet (PoE) PoE+
PoE Budget 185 W
Performance Throughput: 65 Mpps ? Switching capacity: 88 Gbps ? Latency (100 Mbps): 8.6 ?s ? Latency (1000Base-T): 3.6 ?s ? Latency (10 Gbps): 3.6 ?s
MAC Address Table Size 16000 entries
Jumbo Frame Support 9220 bytes
Remote Management Protocol SNMP 1, SNMP 2c, HTTPS
Features Full duplex capability, layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, half duplex mode, full duplex mode, Quality of Service (QoS), DHCP client, 1.5MB packet buffer, Network Timing Protocol (NTP)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 17.4 in x 9.7 in x 1.7 in
Weight 7.28 lbs
Manufacturer Warranty Limited lifetime warranty

EXTENDED SPECIFICATIONS

General
Device Type Switch – 24 ports – managed
Enclosure Type Desktop, rack-mountable, wall-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 24 x 10/100/1000 + 2 x 10Base-T
Power Over Ethernet (PoE) PoE+
PoE Budget 185 W
Performance Throughput: 65 Mpps ? Switching capacity: 88 Gbps ? Latency (100 Mbps): 8.6 ?s ? Latency (1000Base-T): 3.6 ?s ? Latency (10 Gbps): 3.6 ?s
MAC Address Table Size 16000 entries
Jumbo Frame Support 9220 bytes
Remote Management Protocol SNMP 1, SNMP 2c, HTTPS
Encryption Algorithm SSL
Features Full duplex capability, layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, half duplex mode, full duplex mode, Quality of Service (QoS), DHCP client, 1.5MB packet buffer, Network Timing Protocol (NTP)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
Processor 1 x ARM Cortex-A9: 400 MHz
RAM 128 MB DDR3 SDRAM
Expansion / Connectivity
Interfaces 12 x 1000Base-T RJ-45 PoE+ – 185 W ? 12 x 1000Base-T RJ-45 ? 2 x Gigabit / 10Gbit LAN RJ-45
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 222.9 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 71.4 years
Compliant Standards CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950, RoHS, IEC 60950-1, EN 60950-1, WEEE, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, CNS 13438, ICES-003 issue 5 Class A, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, EN 55032:2015
Dimensions & Weight
Width 17.4 in
Depth 9.7 in
Height 1.7 in
Weight 7.28 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – shipment – response time: next business day ? Technical support – phone consulting – lifetime – shipment
Environmental Parameters
Min Operating Temperature 32 ?F
Max Operating Temperature 113 ?F
Humidity Range Operating 15 – 95% (non-condensing)
Min Storage Temperature -40 ?F
Max Storage Temperature 158 ?F
Humidity Range Storage 15 – 95% (non-condensing)

?

Weight and dimensions for JL172A?
Weight 10 lbs
SKU

JL172A

Condition

New

Brand

HPE

GTIN

0 889296848547

Warranty for JL172A?
  • The warranty for refurbished units is 30 days.
  • The warranty for New units is as per the manufacturer’s terms and conditions.
