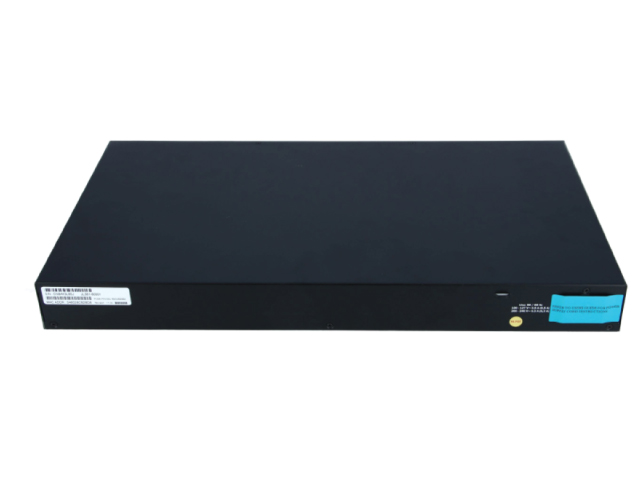

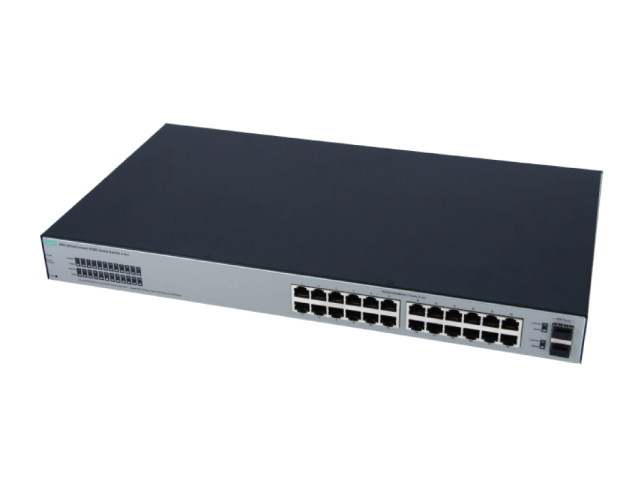

Actual product may vary from the images
JL381A New HPE OfficeConnect 1920S 24G 2SFP Ethernet Switch
MPN: JL381A | UPC: 0 1 90017131191 | CONDITION: New
Product Details
HPE OfficeConnect 1920S 24G 2SFP – Switch – L3 – managed – 24 x 10/100/1000 + 2 x 100/1000 SFP – desktop, rack-mountable, wall-mountable
The HPEOfficeConnect 1920S Switch Series, is designed for small businesses that require enhanced performance to support bandwidth-demanding applications. They are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management. The switches are advanced smart-managed fixed configuration Gigabit switches that are optimized for small business price/performance. They offer 8-, 24- and 48-port configurations, choice of PoE+ and non-PoE+ models; some include SFP slots for fiber connectivity.
MAIN SPECIFICATIONS | |
Product Description | HPEOfficeConnect 1920S 24G 2SFP – switch – 24 ports – managed – rack-mountable |
Device Type | Switch – 24 ports – L3 – managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x 100/1000 SFP |
Performance | Latency (100 Mbps): 7 ?s ? Latency (1 Gbps): 2 ?s ? Throughput: up to 38.6 Mpps ? Routing/switching capacity: 52 Gbps |
Capacity | Routing table entries: 32 |
MAC Address Table Size | 8000 entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMP, static IPv4 routing |
Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS |
Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, DHCP relay, DHCP client, port isolation, Class of Service (CoS), 1.5MB packet buffer, Link Aggregation, Network Timing Protocol (NTP), LLDP-MED |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 17.4 in x 9.7 in x 1.7 in |
Weight | 6 lbs |
Manufacturer Warranty | Limited lifetime warranty |
EXTENDED SPECIFICATIONS | |
General | |
Device Type | Switch – 24 ports – L3 – managed |
Enclosure Type | Desktop, rack-mountable, wall-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x 100/1000 SFP |
Performance | Latency (100 Mbps): 7 ?s ? Latency (1 Gbps): 2 ?s ? Throughput: up to 38.6 Mpps ? Routing/switching capacity: 52 Gbps |
Capacity | Routing table entries: 32 |
MAC Address Table Size | 8000 entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMP, static IPv4 routing |
Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS |
Authentication Method | RADIUS |
Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, DHCP relay, DHCP client, port isolation, Class of Service (CoS), 1.5MB packet buffer, Link Aggregation, Network Timing Protocol (NTP), LLDP-MED |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s |
Processor | 1 x ARM Cortex-A9: 400 MHz |
RAM | 256 MB SDRAM |
Flash Memory | 64 MB |
Expansion / Connectivity | |
Interfaces | 24 x 1000Base-T RJ-45 ? 2 x 1000Base-X SFP |
Power | |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
MTBF | 80 years |
Compliant Standards | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, VCCI Class A, CNS 13438, ICES-003 issue 5 Class A, FCC CFR47 Part 15 A, EN 55032:2015, CISPR 32, CAN/CSA-C22.2 No. 60950-1 |
Dimensions & Weight | |
Width | 17.4 in |
Depth | 9.7 in |
Height | 1.7 in |
Weight | 6 lbs |
Manufacturer Warranty | |
Service & Support | Limited warranty – advance parts replacement – lifetime – shipment – response time: next business day ? Technical support – phone consulting – lifetime – shipment |
Environmental Parameters | |
Min Operating Temperature | 32 ?F |
Max Operating Temperature | 104 ?F |
Humidity Range Operating | 15 – 95% (40 ?C) |
Min Storage Temperature | -40 ?F |
Max Storage Temperature | 158 ?F |
Humidity Range Storage | 15 – 95% (60 ?C) |
?
Weight | 10 lbs |
---|---|
Dimensions | 24 × 15 × 6 in |
SKU | JL381A |
Condition | New |
Brand | HPE |
GTIN | 0 1 90017131191 |
- The warranty for refurbished units is 30 days.
- The warranty for New units is as per the manufacturer’s terms and conditions.
