Product Details

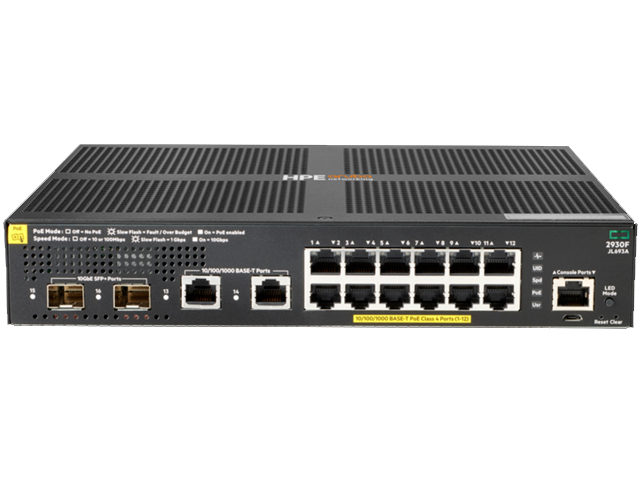

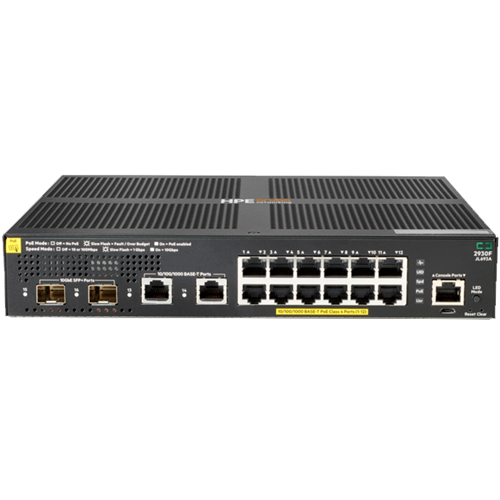

HPE Aruba JL693A
The HPE Aruba JL693A is a robust and versatile network switch designed to meet the demands of modern enterprise environments. With its comprehensive feature set, including Power over Ethernet Plus (PoE+), advanced Layer 3 capabilities, and high-speed connectivity options, this switch is an ideal choice for organizations seeking reliable and scalable networking solutions.
Overview of HPE Aruba JL693A
The HPE Aruba JL693A, part of the Aruba 2930F Switch Series, is engineered to provide secure, reliable, and high-performance connectivity for enterprise networks. It offers a combination of 12 PoE+ ports, additional uplink options, and advanced management features, making it suitable for various applications, including access layer deployments and edge networking.
Key Features of JL693A
- PoE+ Support: 12 RJ-45 autosensing 10/100/1000 PoE+ ports delivering up to 139W power budget, enabling the connection of devices like IP phones, wireless access points, and surveillance cameras without the need for separate power supplies.
- High-Speed Uplinks: Equipped with 2 SFP+ 1/10GbE ports and 2 additional 1GbE ports, providing flexible and high-speed uplink options to the core network.
- Advanced Layer 3 Capabilities: Supports static and RIP routing, Access Control Lists (ACLs), and robust security features to manage and control traffic efficiently.
- Scalability and Flexibility: Designed for scalability with features like VLANs, QoS, and link aggregation, allowing for seamless network expansion and traffic prioritization.
- Energy Efficient: Complies with energy efficiency standards, featuring a fanless design for silent operation and reduced power consumption.
Technical Specifications for JL693A
HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch
| Category | Specification |
|---|---|
| Differentiator | Popular 16-port Gig + 10G access switch with 139W PoE+ power. Features 12x 10/100/1000 PoE+ ports and four built-in ports (2x 10G/1G SFP+, 2x 1GbE) for uplinks. |
| Power Consumption | 170W (maximum) |
| Heat Dissipation | 68.2 BTU/hr (72.0 kJ/hr) |
| Input Voltage | 90–264 VAC, rated |
| Ports | – (12) RJ-45 10/100/1000 PoE+ – (2) SFP+ 1/10GbE – (2) 1GbE – PHY-less |
| Latency | – 1Gbps: < 3.8 µs – 10Gbps: < 2.9 µs |
| Switching Capacity | 68 Gbps |
| Throughput | Up to 41.7 Mpps |
| Memory & Processor | – Dual Core ARM Cortex A9 @ 1016 MHz – 1 GB DDR3 SDRAM – Packet buffer: 12.38 MB (4.5 MB Ingress / 7.875 MB Egress) – 4 GB eMMC |
| PoE Capability | 139W PoE+ |
| Management Features | HPE Aruba Management Software (AirWave), Central Network Mgmt, IMC, CLI, Web, SNMP, Telnet, RMON1, FTP, Out-of-band (RS-232C/USB) |
| Warranty | Limited lifetime warranty |
| Dimensions | 4.39 x 25.4 x 25.4 cm (1.73 x 10 x 10 in) |
| Weight | 2.2 kg (4.85 lb) |
| Description | Designed for smart digital workplaces with integrated wired/wireless optimization. |
Deployment Scenarios
Enterprise Edge Networking
The JL693A is ideal for enterprise edge deployments, providing PoE+ capabilities to power devices like VoIP phones and wireless access points, while offering high-speed uplinks to the core network.
Small to Medium Business (SMB) Networks
For SMBs, the JL693A offers a cost-effective solution with advanced features typically found in higher-end switches, enabling robust network performance without significant investment.
Educational Institutions
Schools and universities can leverage the JL693A to support digital learning environments, providing reliable connectivity and power to classrooms equipped with various networked devices.
Management and Monitoring
The JL693A supports various management tools and protocols, including:
- Aruba AirWave: Provides comprehensive network management, monitoring, and troubleshooting capabilities.
- Aruba Central: Cloud-based management platform for simplified deployment and management of network devices.
- Command-Line Interface (CLI): Allows for detailed configuration and control of the switch.
- Simple Network Management Protocol (SNMP): Enables integration with third-party network management systems.
Security Features
- Access Control Lists (ACLs): Control and restrict network traffic based on various criteria.
- Secure Management Access: Supports SSH, SSL, and SNMPv3 for secure management communications.
- Port Security: Prevents unauthorized devices from connecting to the network.
Energy Efficiency and Environmental Considerations
The JL693A is designed with energy efficiency in mind:
- Fanless Design: Reduces power consumption and eliminates noise, making it suitable for quiet environments.
- Energy Efficient Ethernet (EEE): Complies with IEEE 802.3az standard to reduce power usage during low data activity periods.
Warranty and Support
HPE offers a limited lifetime warranty for the JL693A, ensuring long-term support and peace of mind for network administrators.
Conclusion
The HPE Aruba JL693A switch stands out as a versatile and reliable networking solution, offering a rich set of features suitable for various deployment scenarios. Its combination of PoE+ support, advanced Layer 3 capabilities, and energy-efficient design makes it an excellent choice for organizations seeking to enhance their network infrastructure.
FAQs
What is the maximum PoE power budget of the JL693A?
This switch provides a PoE+ power budget of up to 139W, allowing it to power multiple PoE-enabled devices simultaneously.
Can the JL693A be managed remotely?
Yes, this switch supports remote management through Aruba Central, Aruba AirWave, and standard protocols like SNMP.
Is the JL693A suitable for rack mounting?
Yes, the switch has a 1U form factor and is rack-mountable, making it easy to integrate into standard network racks.
Does the JL693A support Layer 3 routing?
Yes, the switch includes basic Layer 3 routing features such as static and RIP routing, suitable for small to medium-sized networks.
What are the uplink options available on the JL693A?
The JL693A includes 2 SFP+ 1/10GbE ports and 2 additional 1GbE ports for flexible uplink configurations.
Is the JL693A energy efficient?
Yes, the JL693A features a fanless design and complies with energy efficiency standards, reducing power consumption and operational costs.
Smart Links
| Weight | 4.85 lbs |
|---|---|
| Dimensions | 10 × 10 × 1.73 in |
| SKU | JL693A |
| Condition | New |
| Brand | HPE |
| GTIN | 190017 368207 |
