JL806A HPE Networking Instant On 1960 24-Port Gigabit Switch for Enhanced Network Performance

Introduction to JL806A

In today’s fast-paced digital environment, businesses require networking solutions that are both robust and scalable. The JL806A HPE Networking Instant On 1960 24p Gigabit 2p 10GBT 2p SFP+ Switch stands out as a reliable choice for small to medium-sized enterprises seeking high-performance connectivity. This article delves into the key features and benefits of the JL806A switch, highlighting why it’s an excellent investment for modern network infrastructures.

JL806A HPE Networking Instant On 1960 24p Gigabit 2p 10GBT 2p SFP+ Switch

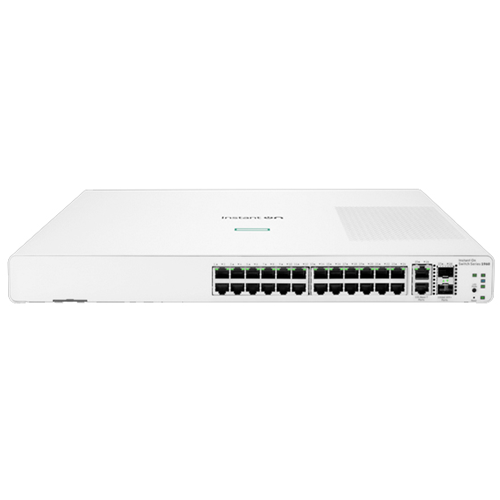

The JL806A model from HPE’s Instant On series is a smart-managed Layer 2+ Gigabit Ethernet switch, featuring 24 RJ-45 autosensing 10/100/1000 Mbps ports, 2 SFP+ 10GbE ports, and 2 10GBASE-T ports. With a switching capacity of 128 Gbps and a throughput of 95 Mpps, it ensures efficient data handling for various network demands. The switch supports static IPv4 and IPv6 routing, VLANs, Access Control Lists (ACLs), and features like Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) for enhanced network performance and reliability. Its fanless design ensures silent operation, making it suitable for noise-sensitive environments. Additionally, the switch can be managed via the Aruba Instant On mobile app or web portal, providing intuitive management and monitoring capabilities.

Key Features and Benefits of JL806A

• High-Speed Connectivity: With 2 SFP+ 10GbE ports and 2 10GBASE-T ports, the switch offers high-speed uplink options, reducing network bottlenecks and ensuring smooth data transmission.
• Energy Efficiency: Compliant with Energy Efficient Ethernet (EEE) standards, the switch reduces power consumption during low data activity periods, contributing to lower operational costs.
• Advanced Security: Features like IEEE 802.1X, RADIUS authentication, and DHCP snooping help protect the network from unauthorized access.
• Scalability: Supports stacking of up to four units, allowing for network expansion as business needs grow.
• Cloud Management: The Aruba Instant On mobile app and web portal provide intuitive management and monitoring of the network, enabling remote configuration and troubleshooting.

Technical Specifications for JL806A

Specification	Details
Ports	24 x 10/100/1000 Mbps RJ-45, 2 x 10GBASE-T, 2 x SFP+ 10GbE
Switching Capacity	128 Gbps
Throughput	95 Mpps
MAC Address Table Size	16,000 entries
Routing Protocols	Static IPv4 and IPv6
VLAN Support	Yes
Energy Efficient Ethernet	Yes
Management	HPE Networking Instant On Cloud; Web browser; SNMP Manager
Dimensions	35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)
Weight	3.9 kg (8.7 lb)
Operating Temperature	0°C to 40°C
Warranty	Limited Lifetime Warranty

Use Cases

• Small to Medium Businesses: Ideal for businesses requiring reliable and scalable network infrastructure.
• Educational Institutions: Provides robust connectivity for classrooms and administrative offices.
• Healthcare Facilities: Ensures secure and efficient data transmission for medical devices and patient records.
• Retail Environments: Supports PoE-powered devices like IP cameras and point-of-sale systems.

Conclusion

The JL806A HPE Networking Instant On 1960 24p Gigabit 2p 10GBT 2p SFP+ Switch offers a comprehensive solution for businesses seeking high-performance networking with advanced features and scalability. Its combination of robust security, energy efficiency, and user-friendly management tools makes it a valuable asset for any organization aiming to enhance its network infrastructure.

FAQs

What is the maximum switching capacity of the JL806A switch? The switch has a maximum switching capacity of 128 Gbps, ensuring efficient data handling for various network demands.Can the JL806A switch be managed remotely? Yes, you can manage the switch via the Aruba Instant On mobile app or web portal, providing intuitive management and monitoring capabilities.Is the JL806A switch suitable for noise-sensitive environments? Yes, its fanless design ensures silent operation, making it suitable for environments where noise is a concern.Does the switch support energy-saving features? Yes, it complies with Energy Efficient Ethernet (EEE) standards, reducing power consumption during low data activity periods.What security features are included in the JL806A switch? The switch includes features like IEEE 802.1X, RADIUS authentication, and DHCP snooping to protect the network from unauthorized access.Can multiple JL806A switches be stacked together? Yes, the switch supports stacking of up to four units, allowing for network expansion as business needs grow.
