JL809A HPE Networking Instant On 1960 48G PoE Switch is a Game-Changer for Your Network

Introduction

In today’s fast-paced digital landscape, businesses require robust networking solutions that can keep up with their growing demands. The JL809A HPE Networking Instant On 1960 48G PoE Switch stands out as a versatile and powerful option, designed to meet the needs of modern enterprises. With its advanced features and user-friendly design, this switch is poised to revolutionize how organizations manage their networks.

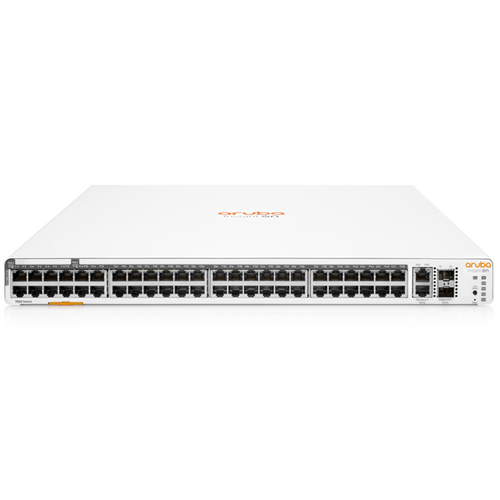

JL809A HPE Networking Instant On 1960 48G PoE Switch

The JL809A model from HPE’s Instant On series is a managed Layer 2+ Gigabit Ethernet switch, featuring 48 RJ-45 autosensing 10/100/1000 Mbps ports, including 40 Class 4 and 8 Class 6 PoE ports. It also includes 2 SFP+ 10GbE ports and 2 10GBASE-T ports, providing ample connectivity options for various network configurations. With a total PoE budget of 600W, it supports a wide range of devices, from access points to surveillance cameras. The switch boasts a switching capacity of 176 Gbps and a throughput of 131 Mpps, ensuring high-performance data handling. Its compact 1U rack-mountable design and cloud-managed capabilities make it an ideal choice for businesses seeking scalability and ease of management.

Key Features and Benefits of JL809A

• High PoE Budget: With a 600W PoE budget, the switch can power multiple devices simultaneously, reducing the need for additional power sources.
• Advanced Security: Features like IEEE 802.1X, RADIUS authentication, and DHCP snooping help protect the network from unauthorized access.
• Scalability: Supports physical stacking of up to four units, allowing for network expansion as business needs grow.
• Cloud Management: The Aruba Instant On mobile app and web portal provide intuitive management and monitoring of the network.
• Energy Efficient: Complies with Energy Efficient Ethernet (EEE) standards, reducing power consumption during low data activity periods.

Technical Specifications of JL809A

Specification	Details
Ports	48 x 10/100/1000 Mbps RJ-45 (40 Class 4 PoE, 8 Class 6 PoE)
Uplink Ports	2 x 10GBASE-T, 2 x SFP+ 10GbE
Switching Capacity	176 Gbps
Throughput	131 Mpps
PoE Budget	600W
Dimensions	442.5 x 402.8 x 44 mm
Weight	4.9 kg
Operating Temperature	0°C to 40°C
Management	Cloud-managed via Aruba Instant On app/web portal
Security Features	IEEE 802.1X, RADIUS, DHCP snooping, ACLs

Use Cases

• Small to Medium Businesses: Ideal for businesses requiring reliable and scalable network infrastructure.
• Retail Environments: Supports PoE-powered devices like IP cameras and point-of-sale systems.
• Educational Institutions: Provides robust connectivity for classrooms and administrative offices.
• Healthcare Facilities: Ensures secure and efficient data transmission for medical devices and patient records.

Conclusion

The JL809A HPE Networking Instant On 1960 48G PoE Switch offers a comprehensive solution for businesses seeking high-performance networking with advanced features and scalability. Its combination of robust security, energy efficiency, and user-friendly management tools makes it a valuable asset for any organization aiming to enhance its network infrastructure.

---

FAQs

What is the maximum PoE output per port? The switch supports up to 30W on Class 4 PoE ports and up to 60W on Class 6 PoE ports.Can the switch be managed remotely? Yes, it can be managed via the Aruba Instant On mobile app or web portal, providing remote monitoring and configuration capabilities.Is the switch stackable? Yes, it supports physical stacking of up to four units, allowing for simplified management and scalability.What security features are included? The switch includes IEEE 802.1X, RADIUS authentication, DHCP snooping, and Access Control Lists (ACLs) to enhance network security.Does it support IPv6? Yes, the switch supports both IPv4 and IPv6, ensuring compatibility with modern network protocols.What is the warranty period? The JL809A comes with a limited lifetime warranty, providing long-term assurance for your investment.(Aruba Instant On)
