R9Y04A HPE Aruba CX 6100 48-Port PoE Switch for Business Networks

Introduction

In the ever-evolving landscape of business networking, the demand for reliable, high-performance, and scalable solutions is paramount. The R9Y04A HPE Aruba CX 6100 48-port Class4 PoE 4SFP+ 740W Switch emerges as a formidable contender, offering a blend of advanced features tailored for small to medium-sized businesses (SMBs) and enterprise branch offices. This article delves into the top ten features that make the R9Y04A switch an optimal choice for modern business networks.

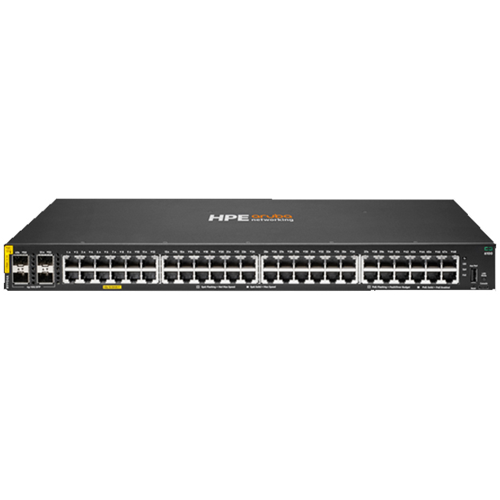

R9Y04A HPE Aruba CX 6100 48-Port Class4 PoE 4SFP+ 740W Switch

The R9Y04A model from HPE’s Aruba CX 6100 series is a fully managed Layer 2 Ethernet switch, featuring 48 10/100/1000BASE-T Class 4 PoE ports and 4 SFP+ 1/10GbE uplink ports. With a switching capacity of 176 Gbps and a throughput of 98.6 Mpps, it ensures efficient data handling for various network demands. The switch supports PoE standards IEEE 802.3af and 802.3at, providing up to 30W per port with a total PoE budget of 740W. Its design includes side-to-side airflow, making it suitable for rack-mountable deployments. Additionally, the switch can be managed via Aruba Central, Aruba NetEdit, a user-friendly Web GUI, or industry-standard CLI, providing flexible management and monitoring capabilities.

Key Features and Benefits of R9Y04A

• High-Speed Connectivity: With 48 Gigabit Ethernet ports and 4 SFP+ 1/10GbE uplink ports, the switch offers high-speed uplink options, reducing network bottlenecks and ensuring smooth data transmission.
• Power over Ethernet (PoE) Support: The switch provides a total PoE power budget of 740W, supporting up to 30W per port for Class 4 devices, ideal for powering access points, IP cameras, and VoIP phones.
• Energy Efficiency: Compliant with Energy Efficient Ethernet (EEE) standards, the switch reduces power consumption during low data activity periods, contributing to lower operational costs.
• Advanced Security: Features like IEEE 802.1X, RADIUS authentication, and DHCP snooping help protect the network from unauthorized access.
• Scalability: Supports static routing, VLANs, Access Control Lists (ACLs), and features like Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) for enhanced network performance and reliability.
• Cloud Management: The Aruba Central platform provides intuitive management and monitoring of the network, enabling remote configuration and troubleshooting.

Technical Specifications of R9Y04A

Specification	Details
Ports	48 x 10/100/1000BASE-T Class 4 PoE, 4 x SFP+ 1/10GbE
Switching Capacity	176 Gbps
Throughput	98.6 Mpps
MAC Address Table Size	16,000 entries
Routing Protocols	Static IPv4 and IPv6
VLAN Support	Yes
Energy Efficient Ethernet	Yes
PoE Power Budget	740W
Management	Aruba Central, Aruba NetEdit, Web GUI, CLI
Dimensions	44 x 32.42 x 4.39 cm (17.32 x 12.8 x 1.73 inches)
Weight	4.7 kg (10.4 lbs)
Operating Temperature	0°C to 40°C
Warranty	Limited Lifetime Warranty

Use Cases for R9Y04A

• Small to Medium Businesses: Ideal for businesses requiring reliable and scalable network infrastructure.
• Educational Institutions: Provides robust connectivity for classrooms and administrative offices.
• Healthcare Facilities: Ensures secure and efficient data transmission for medical devices and patient records.
• Retail Environments: Supports PoE-powered devices like IP cameras and point-of-sale systems.

Conclusion

The R9Y04A HPE Aruba CX 6100 48-port Class4 PoE 4SFP+ 740W Switch offers a comprehensive solution for businesses seeking high-performance networking with advanced features and scalability. Its combination of robust security, energy efficiency, and user-friendly management tools makes it a valuable asset for any organization aiming to enhance its network infrastructure.

FAQs

What is the maximum switching capacity of the R9Y04A switch? The switch has a maximum switching capacity of 176 Gbps, ensuring efficient data handling for various network demands.Can the R9Y04A switch be managed remotely? Yes, it can be managed via Aruba Central, Aruba NetEdit, a user-friendly Web GUI, or industry-standard CLI, providing flexible management and monitoring capabilities.Is the R9Y04A switch suitable for noise-sensitive environments? Yes, its design includes side-to-side airflow, making it suitable for rack-mountable deployments in noise-sensitive environments.Does the switch support energy-saving features? Yes, it complies with Energy Efficient Ethernet (EEE) standards, reducing power consumption during low data activity periods.What security features are included in the R9Y04A switch? The switch includes features like IEEE 802.1X, RADIUS authentication, and DHCP snooping to protect the network from unauthorized access.Can the R9Y04A switch support PoE devices? Yes, the switch provides a total PoE power budget of 740W, supporting up to 30W per port for Class 4 devices, ideal for powering access points, IP cameras, and VoIP phones.
