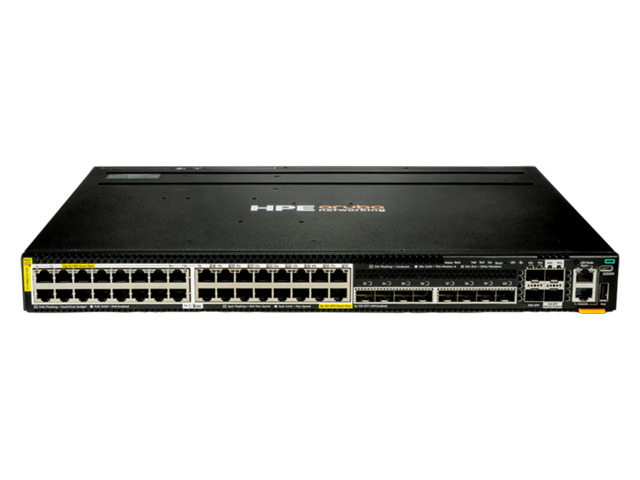

S4P42A HPE Aruba 6300L 32p Smart Rate 5G CL8 8p SFP+ 10G LRM 2p SFP56 50G 2p SFP28 25G

S4P42A

–Actual product may vary from the images–

  • All products are sourced from authorized distributors, global surplus channels and enterprise decommissioning programs.
S4P42A HPE Aruba 6300L 32p Smart Rate 5G CL8 8p SFP+ 10G LRM 2p SFP56 50G 2p SFP28 25G
SKU: S4P42AEAN: 190017 744391Condition: New
Price USD: $17,729.00
In stock
  • Free US Ground Shipping except Hawaii and Alaska

Some items may show vendor’s stock. Please confirm lead times before ordering.

Availability: 4 in stock

  • Visa
  • Master Card
  • AMEX
  • Discover
  • Stripe
  • Wire Transfer for International Orders

For bulk orders email us at sales@d-ziner.com or call us at 833-375-8324.

Warranty & support: Varies by product — extended warranties available through manufacturer. All hardware inspected and verified before shipment.

  • International Buyer Discounts Available
  • Express Delivery in USA only on in stock items - 1 to 3 Business Days
  • International Shipping on buyer's account
  • International Shipping takes 7-10 Days
See our Refund Policy and Terms and Conditions for more details.

Product Details

Technical Specifications S4P42A HPE Networking CX 6300

Power consumption
  • With JL670A PSU: Idle: 106W, 100% Traffic Rate: 159W
  • With JL758A PSU: Idle: 118W, 100% Traffic Rate: 156W
Input voltage
  • JL670A PSU: 110V–120V/200V/208V–240V; AC input
  • JL086A PSU: 100V–240V; AC input
  • JL087A PSU: 110V–240V; AC input
  • JL758A PSU: 36–72V; DC input
Ports:
  • 32 x HPE Smart Rate 1G/2.5G/5G Base-T ( configuration can be changed to 16 x HPE Smart Rate 1G/2.5G/5G Base-T and 8 x HPE Smart Rate 1G/2.5G/5G/10G Base-T ports) Class 8 PoE ports supporting up to 90W POE per port and 8 x 1G/10G SFP+ (LRM) ports
  • 2 x 10G/25G/50G SFP ports
  • 2 x 10G/25G SFP ports (MACsec)
  • Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W)
  • 1 x USB-C console port
  • 1 x USB Type-A host port
  • 1 x OOBM port
  • 1 x RJ-45 console Port
  • 1 x Bluetooth dongle to be used with CX Mobile App
Memory and processor:
  • CPU: Dual-core Arm® Cortex-A9 @ 1.8GHz
  • Memory: 8 GB DDR4, 32 GB eMMC
  • Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Latency:
  • Less than 5 µs
  • 10 Gbps LRM: 2.3 µs
  • 10 Gbps dual mode ports: 5.5 µs
  • 25 Gbps: 3.5 µs
Switching capacity: 780 Gbps
Stacking capabilities: Up to 10-members per stack. Note: CX 6300L switches only stack with other CX 6300L switches
Throughput: 580 Mpps
Power supply: 2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A, JL670A and JL758A.
PoE capability: Maximum PoE power: 2880W
Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5000 ft. Derate ‑1°C for every 1000 ft from 5000 ft to 10000 ft. Can support excursion to 131°F (55°C) for short periods of time.
Management features: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Warranty: Limited lifetime warranty
Weight: 6.02 kg, maximum, depending on model (13.27 lbs, maximum, depending on model)
Dimensions: 4.4 x 44.2 x 38.5 cm, maximum, depending on model (1.73 x 17.4 x 15.2 in, maximum, depending on model)
Fans: Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans.

Free Ground Shipping in USA: get within 3-5 Business Days. Express delivery (in stock) 1-3 Business Days.
Global Shipping: on buyer’s shipping account or we can provide a quote. All international duties/customs are buyer’s responsibility.
Returns: Please contact support within 14 days of delivery for defective or incorrect items. All returned hardware must be in original condition.See our Refund Policy.

Warranty: Varies by product – contact us for specific unit warranty certificate.

✓ 100% hardware inspection & verification before shipment.

✓ Sourcing from authorized distributors, global surplus channels and enterprise decommissioning programs – fully tested & authenticated.

✓ Transparent global shipping: buyer’s shipping account or we arrange via FedEx/UPS.

✓ International payments accepted only via wire transfer; domestic orders via Stripe (Visa, MC, Amex).

  • The warranty for refurbished units is 30 days.
  • The warranty for New units is as per the manufacturer’s terms and conditions.
Weight13.27 lbs
Dimensions15.2 × 17.4 × 1.73 in
